ENMET IR-6000 User Manual
Page 5
IR-6000
Hydrocarbon Sensor/Transmitter
ENMET Corporation
3

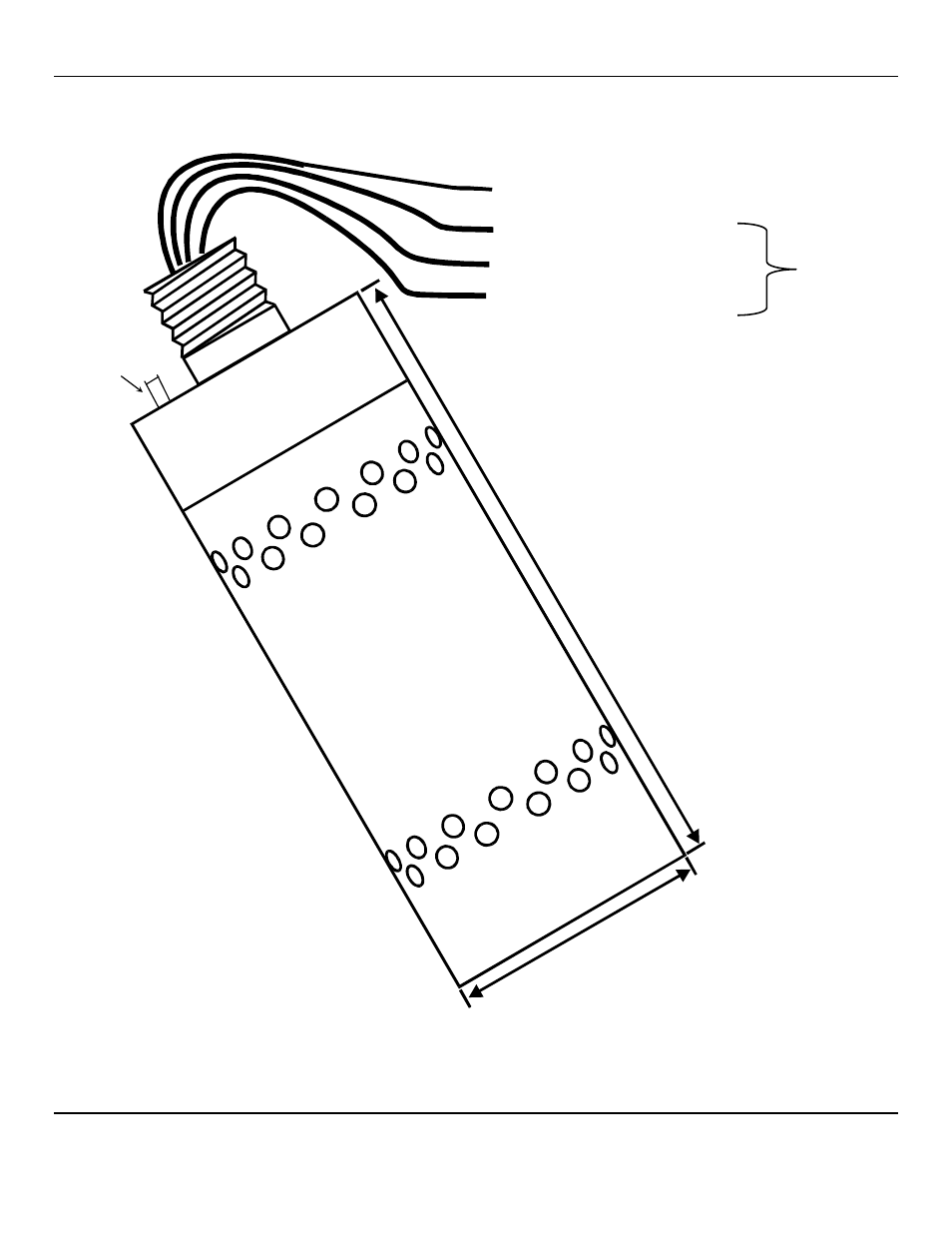

Figure 1: Wiring Diagram IR-6000 Sensor/Transmitter
WHITE: Zero Calibration
RED: +24 VDC
BLACK: -24VDC (DC Common)
BLUE:
4–20
mA Output
6.5 inches
165mm
2.6 inches
66mm
3/4“ NPT
THREAD
Earth
Ground
Stud 10-32
Field
Wiring
Zero Calibration
Performed by applying clean air and touching
the white wire to the black wire for 10 seconds
