ENMET EX-5165 User Manual
Page 7
EX-5165
ENMET Corporation
5
Figure 3: Terminal Positions EX-5165 Sensor/Transmitter
When wiring is complete, reassemble the
EX-5165
. Use caution when installing the overlay so as not to damage the magnetic
switches. Put the cover back on the S/T
Do Not apply power to the S/T without the cover in place.
Printed Circuit Board
(PCB)
Display Overlay
Magnetic Switches
(2 places)

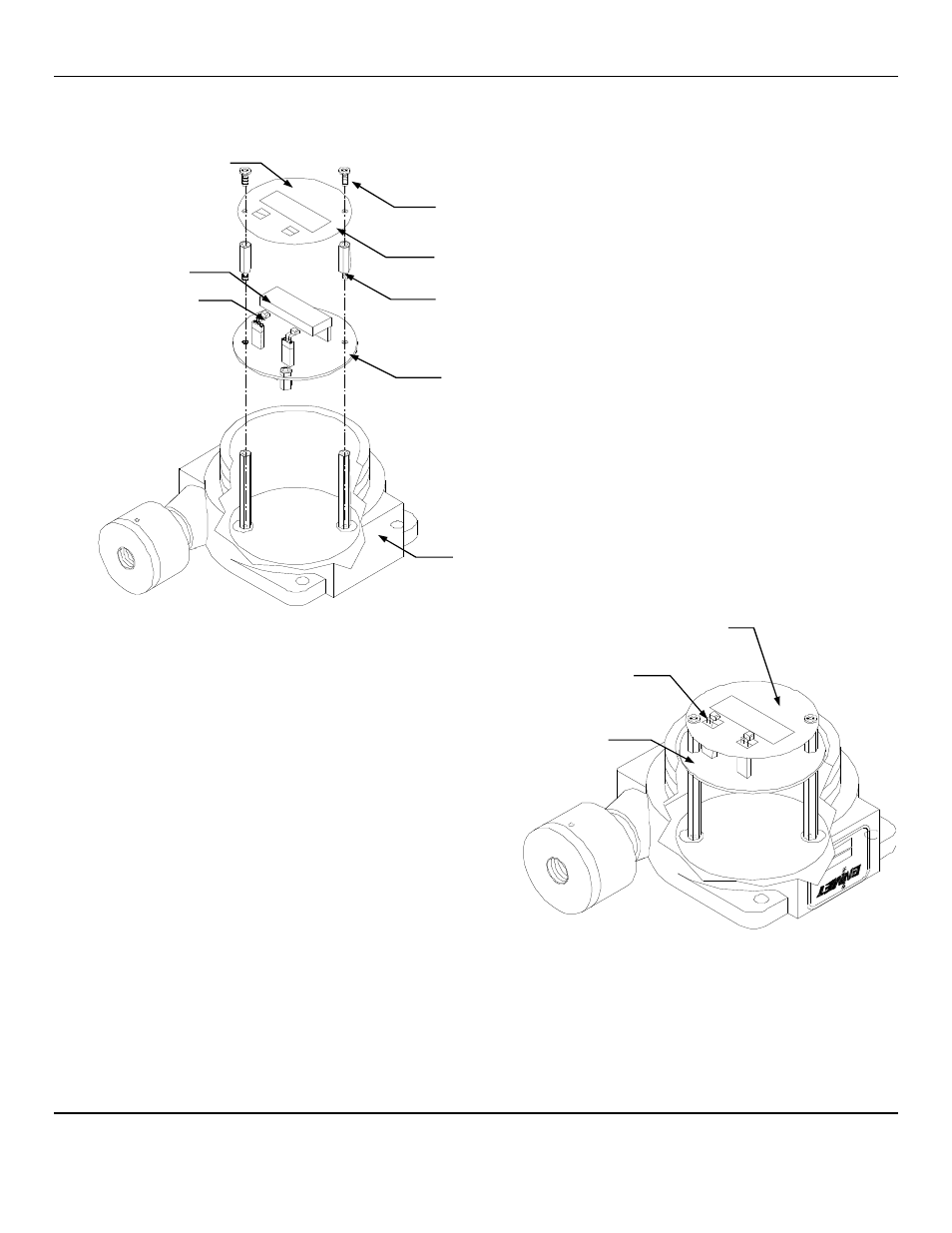

Sensor/Transmitter
Enclosure Cutaway View
Display Overlay Screws
(2 places)
Display Overlay Standoffs
(2 places)
Magnetic
Switches
(2 places)
Printed Circuit Board (PCB)
J4 and J8 Terminals are located on the
bottom side of PCB
Display Overlay
Display
Display Overlay
