Attaching Speaker Wires

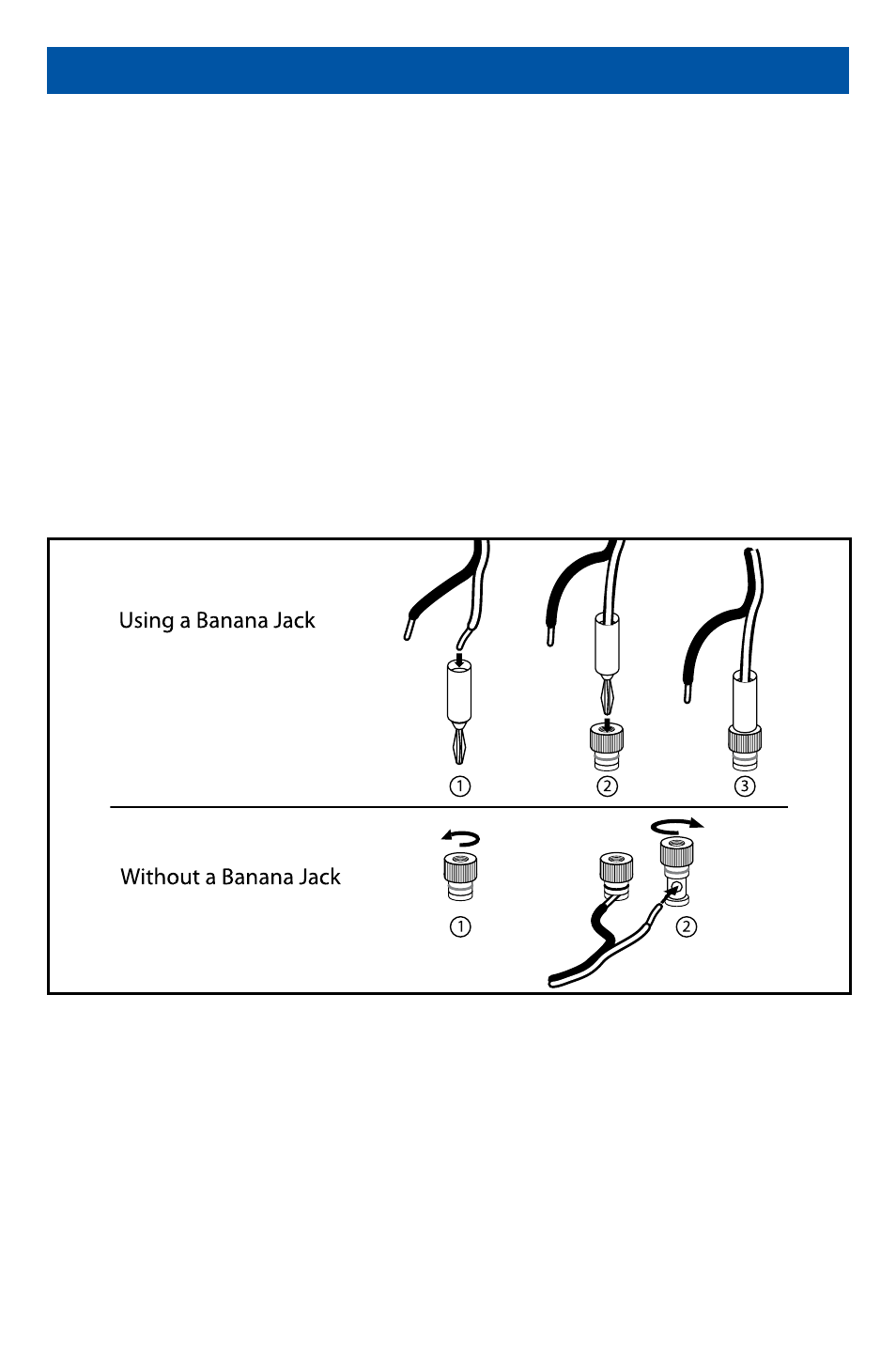

When using a banana jack to attach speaker wires to the binding post terminals, insert
the speaker wire into the banana jack. Next insert the banana jack into the binding
posts. When using a banana jack to attach speaker wires to the binding post terminals,
remove the black and red plastic protective inserts from the terminals. To do this, loosen
the binding nut from the terminal by turning the nut counterclockwise until the nut
is completely removed from the terminal. Remove the plastic inserts by pulling them
straight out, then replace the nut to the terminal and turn clockwise. Insert the banana
jack into the hole provided in the top of the terminal, and then continue to tighten the
nut until secure. Repeat for the other speaker wire(s) as necessary.
If not using a banana jack, simply loosen the binding nut to allow the hole in the side
of the terminal to become exposed. Strip ¼-inch of the insulation from the end of the
speaker wire and insert the exposed wire end into the now exposed hole in the side of
the terminal. Tighten the binding nut by turning the nut clockwise until the speaker
wire is secured. Repeat for the other speaker wire(s) as necessary.
