Back Panel and Functions

PRE2 STEREO PREAMPLIFIER OWNER’S MANUAL

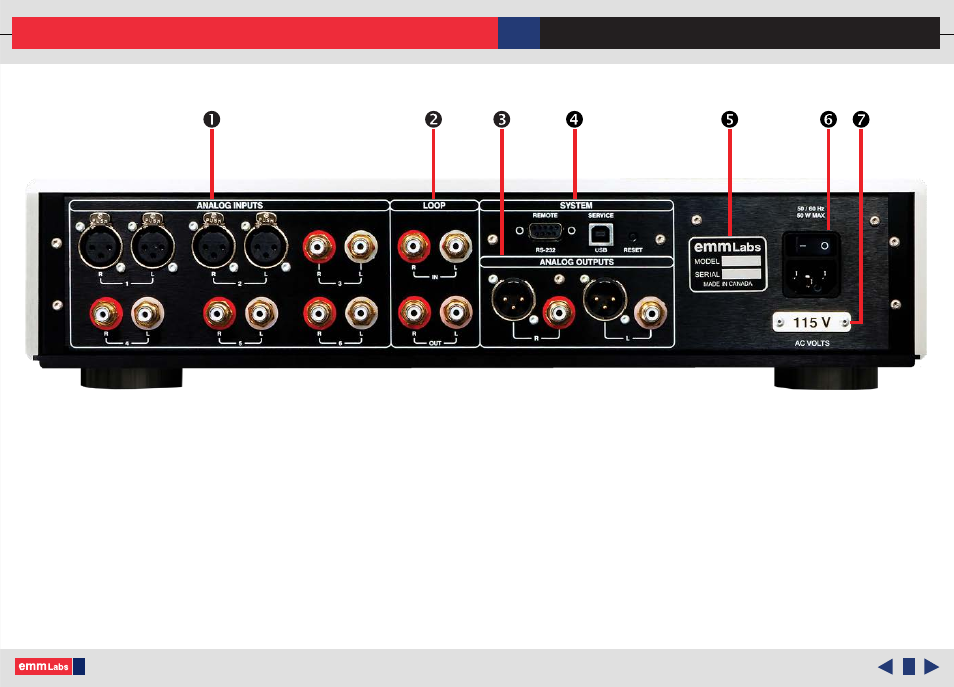

Back Panel & Functions

1. Analog Inputs:

• Inputs 1 and 2 are balanced XLR inputs

• Inputs 3, 4, 5 and 6 are un-balanced RCA inputs

2. Loop Input and Output (un-balanced)

3. Analog Outputs:

• Left and Right Balanced (XLR) Connectors

• Left and Right Un-Balanced (RCA) Connectors

4. System:

• Remote RS232: RS232 control port

• USB: software update port
