Parts identification, Identifying resistor values – Elenco Resistor Substitution Box User Manual
Page 3
-2-

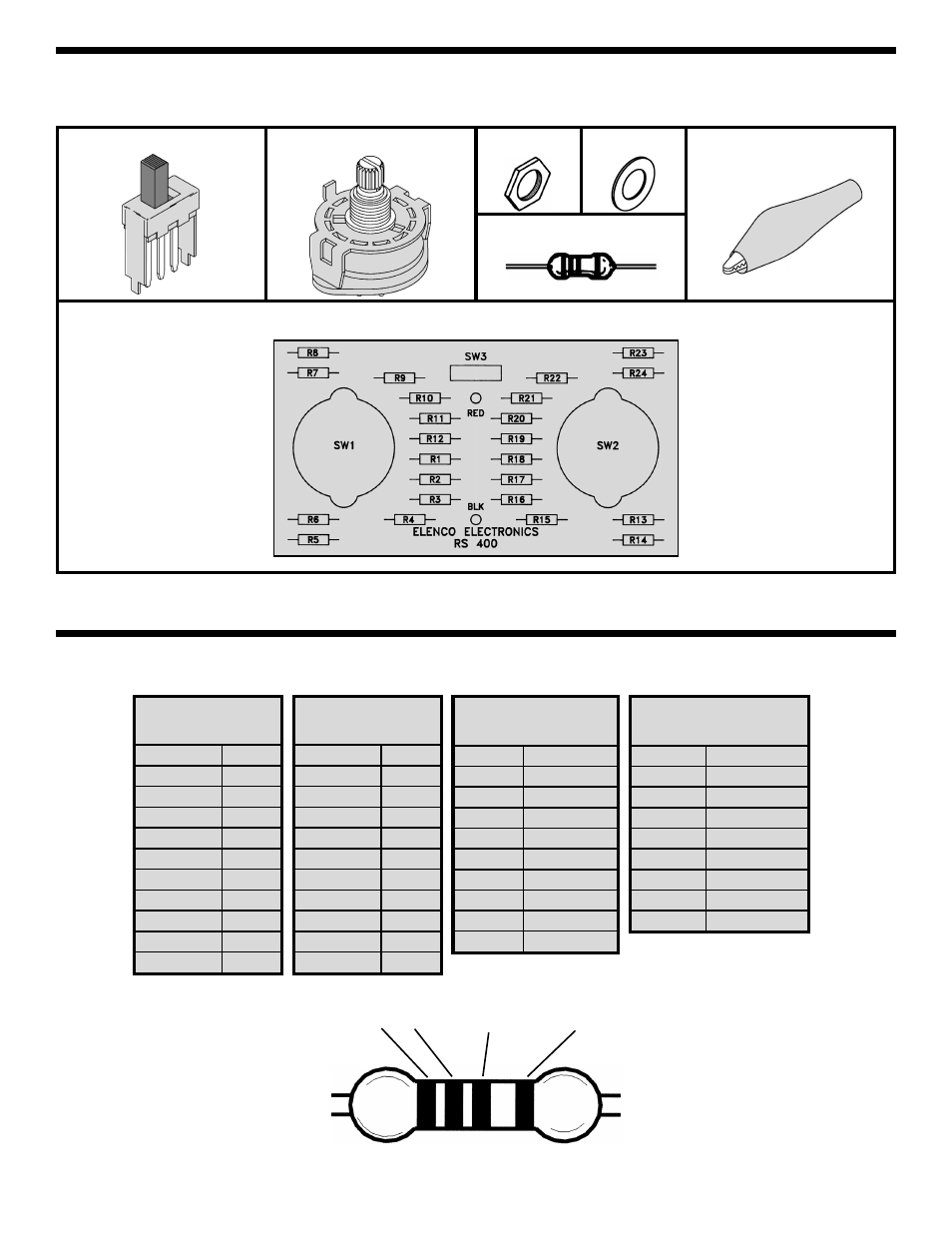

PARTS IDENTIFICATION
Switch 12 Position
9mm Nut
Alligator Clip
Switch PC Mount
Resistor
Washer
IDENTIFYING RESISTOR VALUES
Use the following information as a guide in properly identifying the value of resistors.
BANDS
1
2
Multiplier
Tolerance
PC Board
BAND 1
1st Digit
Color
Digit
Black
0
Brown
1
Red
2
Orange
3
Yellow
4
Green
5
Blue
6
Violet
7
Gray
8
White
9
BAND 2
2nd Digit
Color
Digit
Black
0
Brown
1
Red
2
Orange
3
Yellow
4
Green
5
Blue
6
Violet
7
Gray
8
White
9
Multiplier
Color
Multiplier
Black
1
Brown
10
Red
100
Orange
1,000
Yellow
10,000
Green
100,000
Blue
1,000,000
Silver
0.01
Gold
0.1
Resistance
Tolerance
Color
Tolerance
Silver
±10%
Gold
±5%
Brown
±1%
Red
±2%
Orange
±3%
Green
±0.5%
Blue
±0.25%
Violet
±0.1%
