PROJECT 2: ADDING AMPLIFIER & LOUDNESS CONTROL

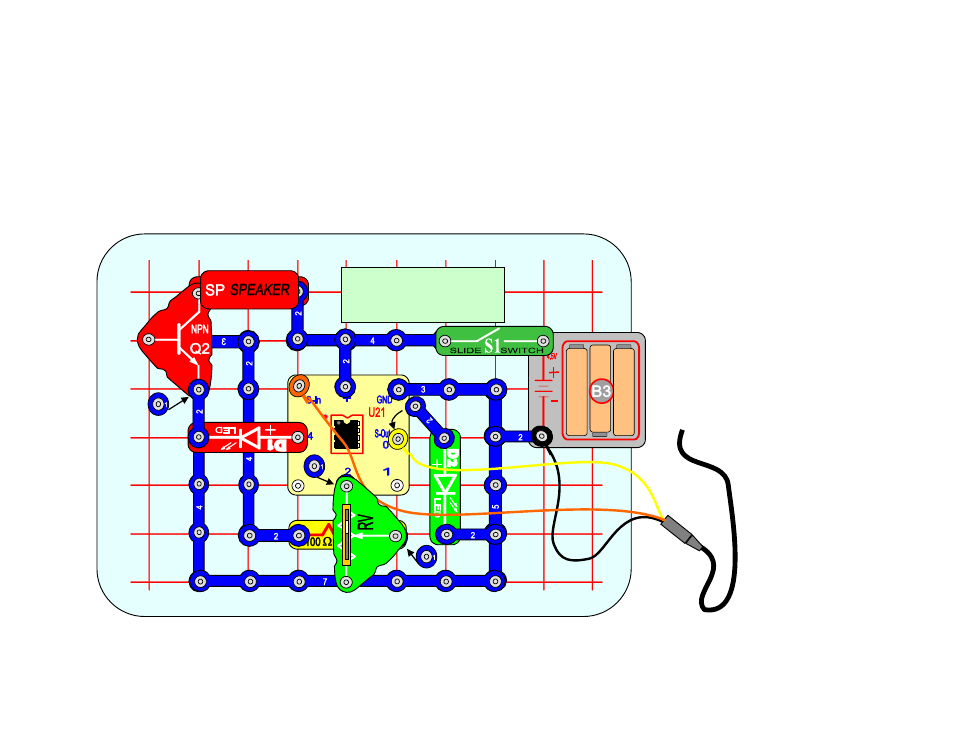

Modify the Snap Circuit ® from the previous project to look like the circuit below. The variable resistor RV
will be used to increase and decrease the audio level. The NPN transistor ‘Q2’ is used to amplify the
power to th
e speaker ‘SP’. LED ‘D2’ is still disconnected during programming but will flash if the Yellow
programming wire is removed and the ‘2 Snap’ is connected to S-Out or pin 0.
Assuming the micro-controller is still programmed to play and flash the lights, co nnect the ‘2 snap’,
switch ‘S1’ to “ON” and test the circuit.
Use the loudness control to adjust audio level for desired loudness.
