PARTS LIST
If you are a student, and any parts are missing or damaged, please see instructor or bookstore.
If you purchased this kit from a distributor, catalog, etc., please contact Elenco
® Electronics (address/phone/e-
mail is at the back of this manual) for additional assistance, if needed. DO NOT contact your place of purchase
as they will not be able to help you.
RESISTORS
Qty. Symbol Description Color Code Part #
r 1
R15 120
Ω 5% 1/4W
brown-red-brown-gold 131200
r 2
R1, R9 10k
Ω 5% 1/4W
brown-black-orange-gold 151000
r 1 R4 18k Ω 5% 1/4W brown-gray-orange-gold 151800
r 2 R6, R7 100k Ω 5% 1/4W brown-black-yellow-gold 161000
r 1 R10 180k Ω 5% 1/4W brown-gray-yellow-gold 161800
r 3 R2, R11, R13 220k Ω 5% 1/4W red-red-yellow-gold 162200
r 1 R3 330k Ω 5% 1/4W orange-orange-yellow-gold 163300
r 4 R5, R8, R12, R14 1M Ω 5% 1/4W brown-black-green-gold 171000
CAPACITORS
Qty. Symbol Value Description Part #
r 1 C2 330pF (331) Discap 223317
r 2
C3, C5 .001
μF (102)
Discap 231035
r 1
C9 .01
μF (103)
Discap 241031
r 1
C8 .047
μF (473)
Mylar 244717
r 1
C6 .1
μF (104)
Discap 251010
r 2
C1, C7 10
μF Electrolytic
(Lytic) 271045
r 2 C4, C10 100 μF Electrolytic (Lytic) 281044
SEMICONDUCTORS
Qty. Symbol Value Description Part #
r 8 D1 - D8 1N4148 Diode 314148
r 1 Q1 2N3904 Transistor 323904
r 1 Q2 2N6521 Transistor 326521
r 1
IC1 IC 3086 333086
MISCELLANEOUS
Qty. Symbol Description Part #
r 1
PC Board 510001
r 1 S4 Switch 541010
r 3 Dimple Cap 546100
r 3
S1, S2, S3 Dimple 546101
r 1
BT Battery Snap 590098
r 1 SP1 Speaker 590101
r 1 Case 623350
r 1 Socket 14-Pin 664014
r 1
Label 720400
r 4”
Wire 814620
-1-

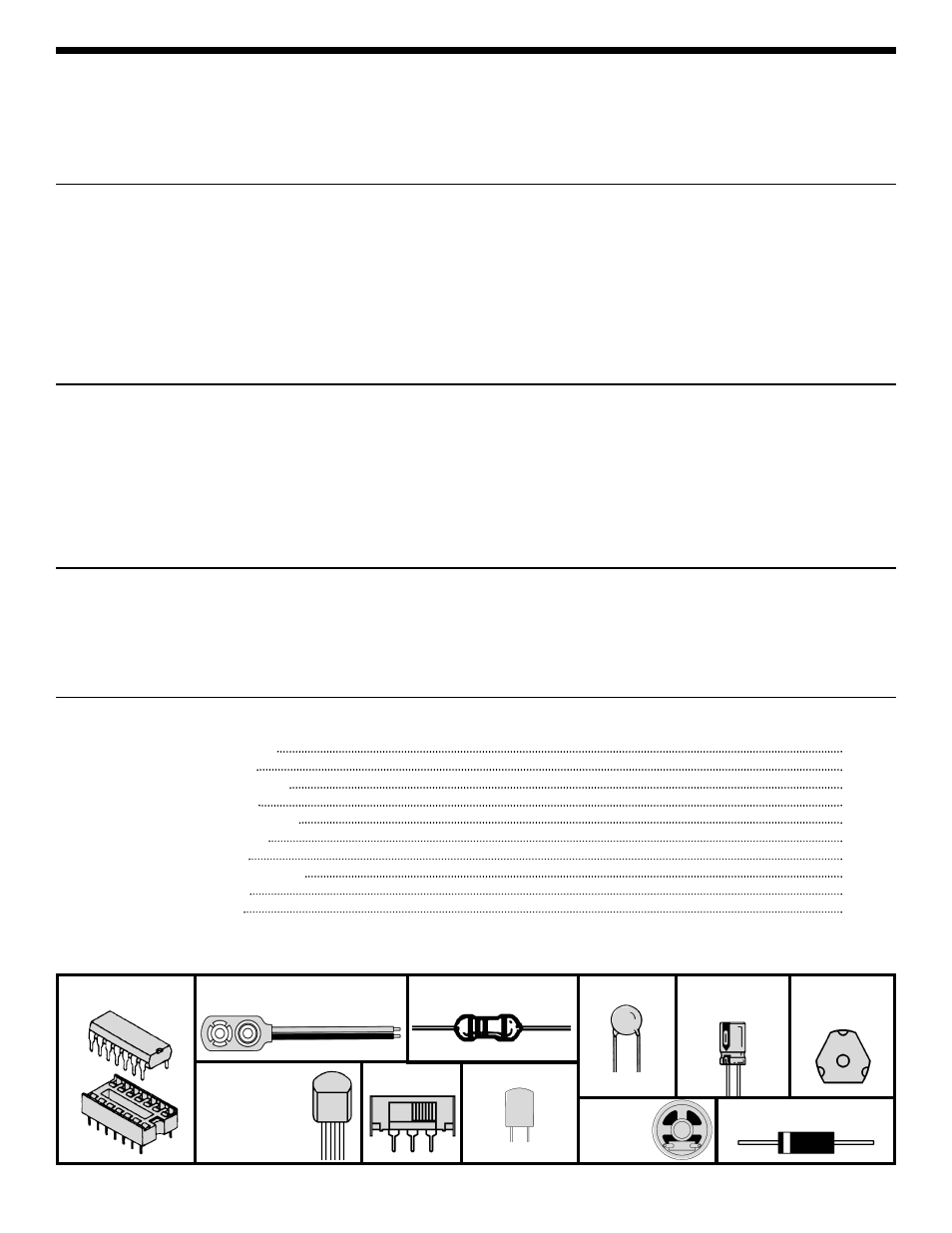

PARTS IDENTIFICATION
Battery Snap
Transistor
Resistor Capacitor
Discap
Diode
Electrolytic
Capacitor
Speaker
Capacitor Switch
Mylar
Dimple
Switch
IC & Socket
