East Coast Supercharging ECS Alky C7 User Manual
Page 4
C7 Corvette installation instructions

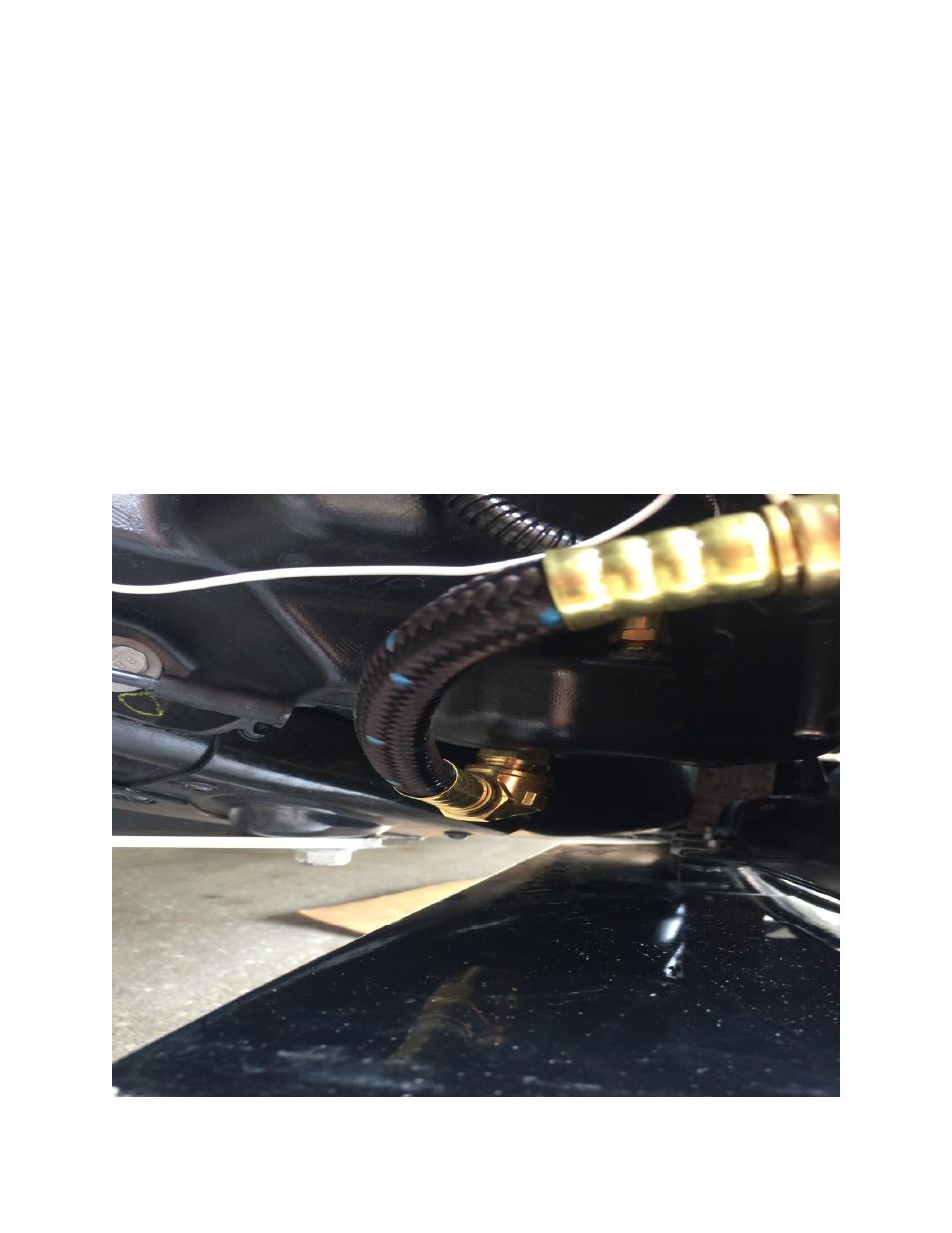

1) The pump installation
You first need to gain access to the tank by dropping the drivers side inner fender.
There are some clips you need to remove using a flat screwdriver, you will also need to
unsnap a molding on the drivers side fender to gain access to a few T15 torx fasteners.
Once the inner fender liner is removed, you will note the factory reservoir. Next I pull
the motor out from the reservoir and unsnap its electrical connector. Water will come
out of reservoir. Once the tank has drained, I drill a 7/8 diameter hole into the bottom
of the reservoir behind where the factory motor was installed.
