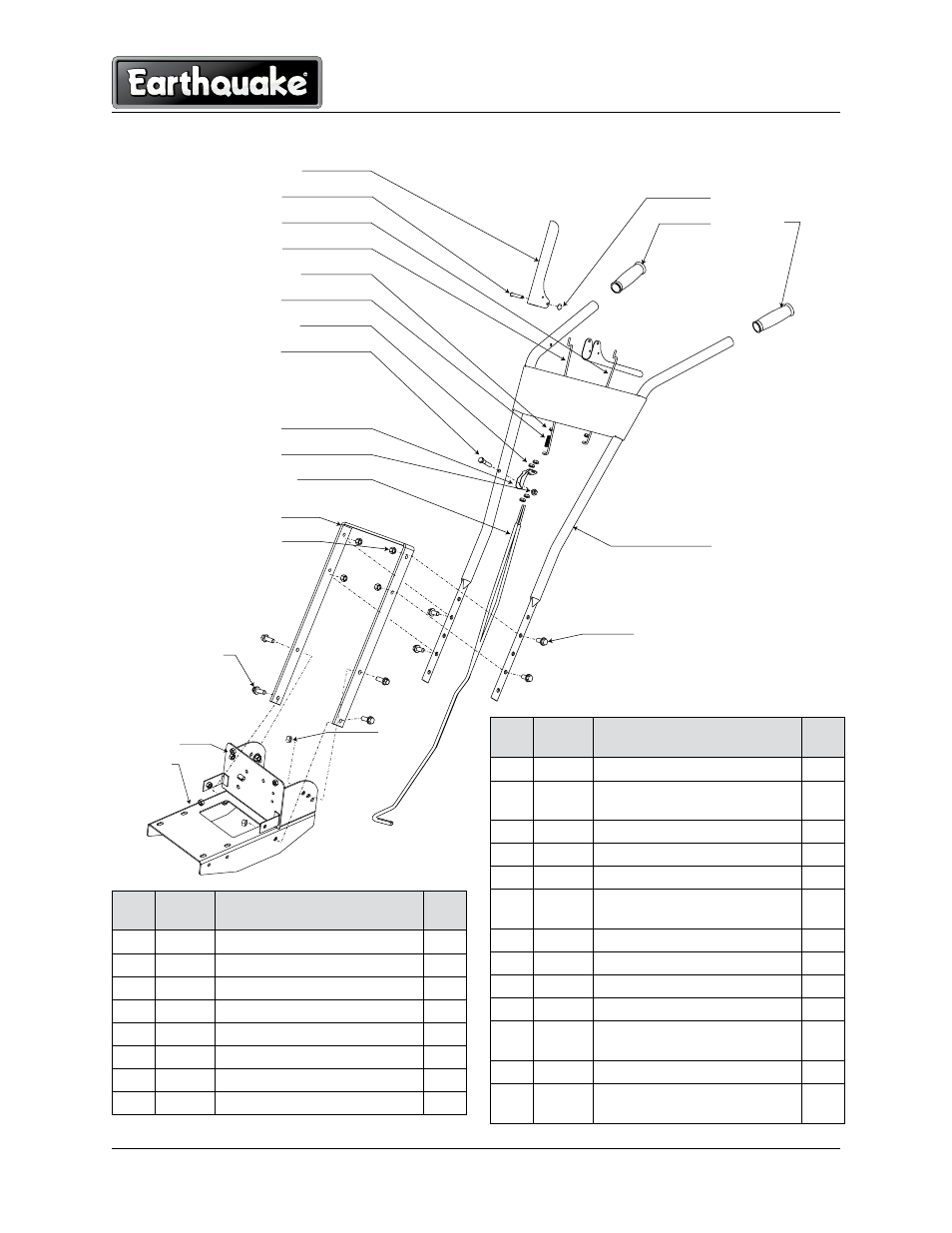

SRt hAndLEBAR PARtS
16
8
7
6
10
4
5
3
12
18
13
11
1
2
15
14
17
19
1
14
20
21
REF.
no.
PARt # dESCRiPtion qtY.
1 2104 NUT HEx TWO-WAY 3/8-16 6
2 48762 BOLT 3/8-16 x 1” CARRIAGE 4
3 503 BOLT 5/16-18 x 1-1/2 HH 1
4 53606 NUT-NYLOC, #10 2
5 53607 NUT-JAM, 5/16-24 4
6 53612 LINK 11-5/8” LONG 1
7 53613 LINK 9-1/2” LONG 1
8 53614 PIN CLEVIS 1/4 x 1-1/2” 1
REF.
no.
PARt # dESCRiPtion qtY.
9 -- ----- --
10 53620 SPRING COMPRESSION FORWARD
ARM
1
11 332022 HANDLEBAR MOUNT WELDMENT 1
12 53629 CABLE MOUNT BRACKET 1
13 53630 CABLE - REAR TINE 39” SHEATH 2
14 53631 GRIP HANDLEBAR 1” ID FLANGE-
LESS
2
15 53632 NUT PUSH 1/4” 1
16 53650 LEVER CONTROL REAR TINE 2
17 53679 HANDLEBAR WELDMENT 1
18 60G56 NUT-BI-WAY LOCK, 5/16-18 1
19 90138 BOLT 3/8-16 x 3/4 SERRATED
FLANGE
4
20 332001 WELDMENT, ENGINE MOUNT 1
21 332003 WELDMENT, REAR BELT AND
HANDLEBAR MOUNT
1
