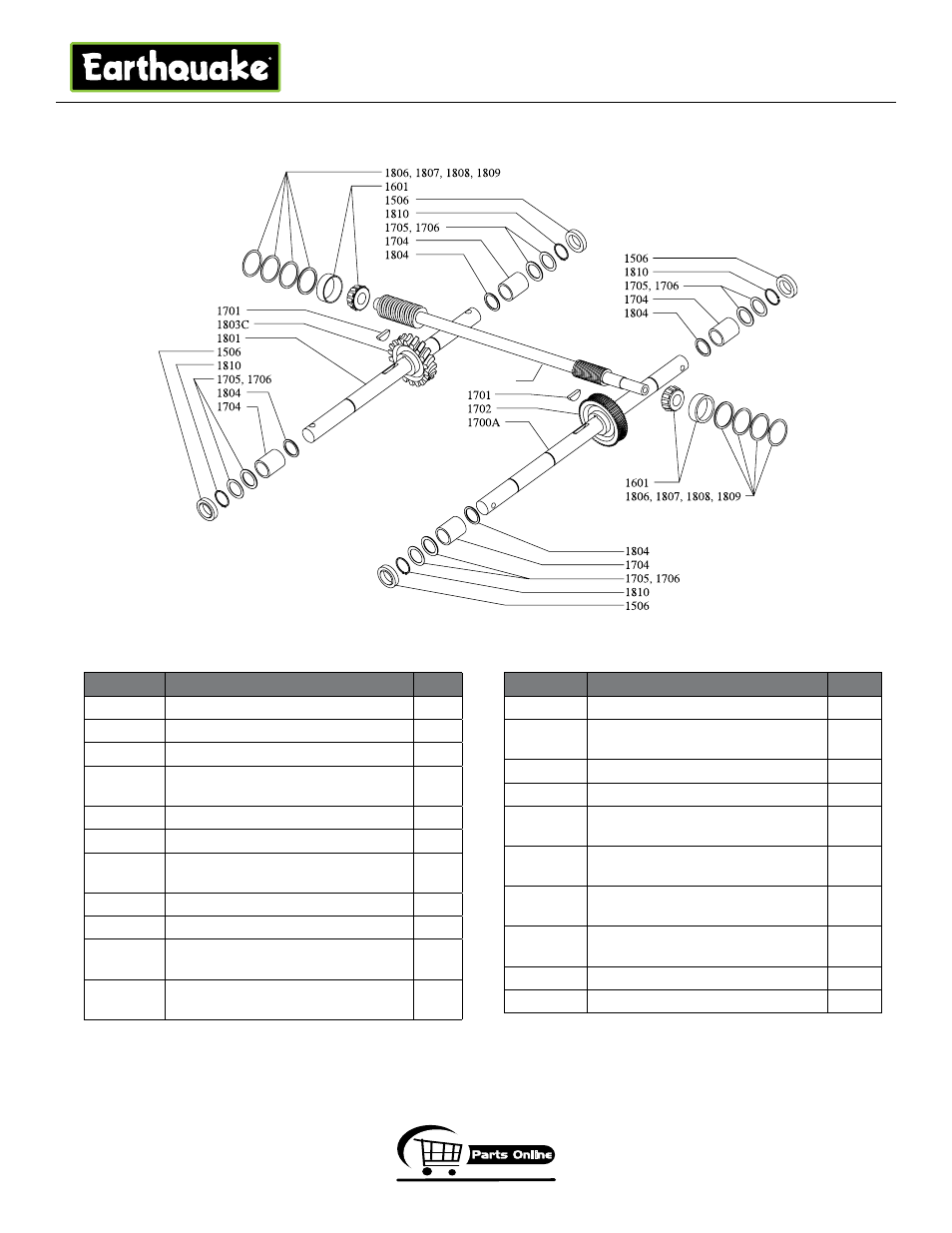

CRT WhEEL & TILLER ShAFT PARTS & PARTS LIST
1600SC1
PART # dESCRIPTION QTY.
1500cRT4 Transmission complete, Lock Pin 1
1506 Seal-Tiller Housing 4
1600Sc1 Main Drive Shaft, cRT Short 1
1601 Bearing-Tapered (Includes cone &
Race) 2
1700A Wheel Shaft Assembly, Lock Pin 1
1701 Key 1/4” x 1” 2
1702 Gear-Worm, Brass, 61 Tooth, Wheel
Shaft 1
1703 Shim Set-Axle Spacer Kit (not shown) 4
1704 Bushing 4
1705 Shim, 1.375 OD x .062” thick, (as
required.) 4
1706 Shim, 1.375 OD x .030” thick, (as
required.) 2
PART # dESCRIPTION QTY.
1801 Tine Shaft 1
1803c Gear-Worm, Brass, 30 Tooth, LH,
Tiller Shaft 1
1804 Spacer, 1.250” x 1.000” x .062” thick 4
1805 Shim Set-Bearing cap (not shown) 2
1806 Shim, 1.750 OD x .062” thick, (as
required.) 6
1807 Shim, 1.750 OD x .030” thick, (as
required.) 2
1808 Shim, 1.750 OD x .015” thick, (as
required.) 2
1809 Shim, 1.750 OD x .010” thick, (as
required.) 2
1810 Snap Ring-Retainer, Internal 4
494 casting, Tiller Transmission 1
