Operator's Manual
Dually Earth Auger Powerhead
16

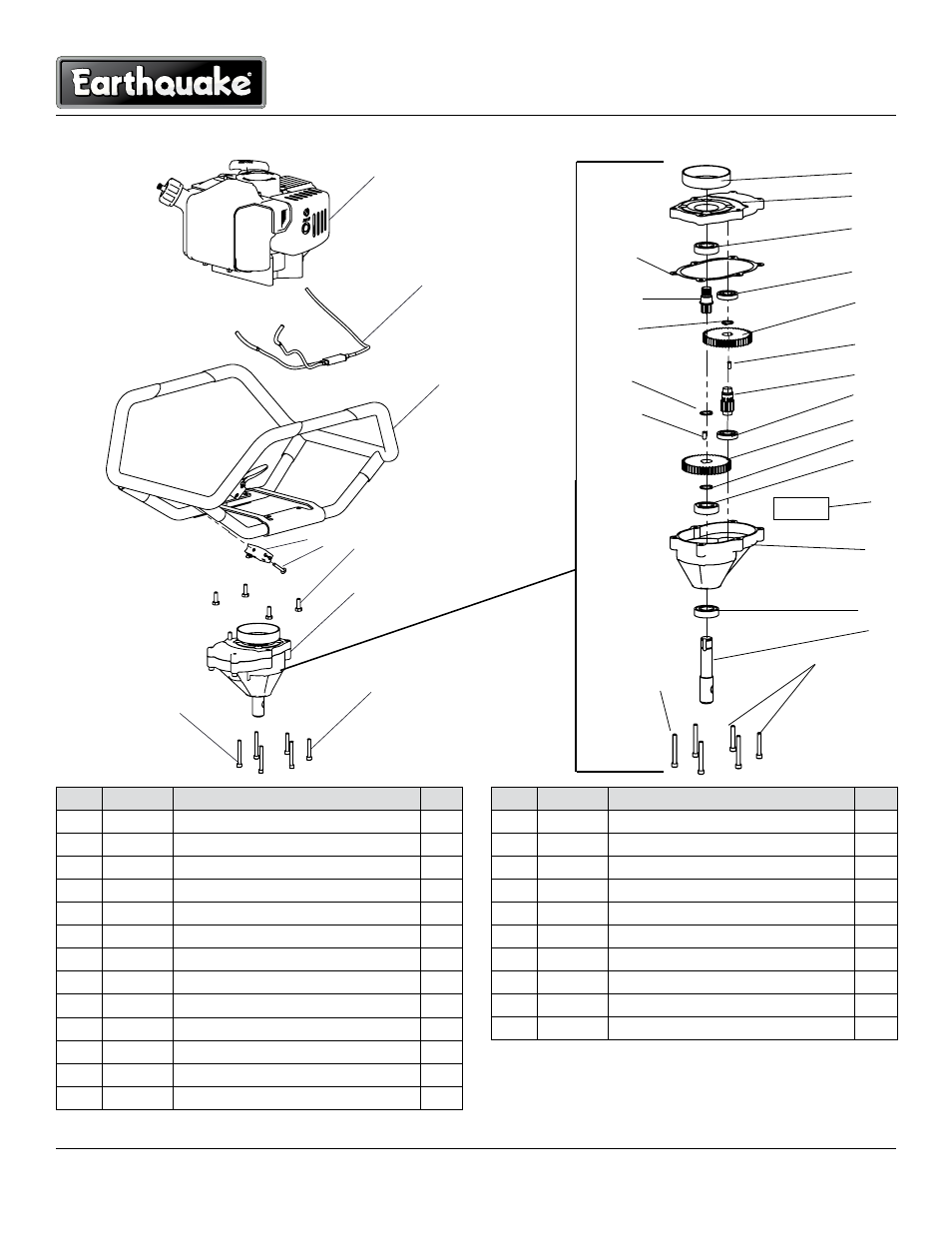

kEY # PaRT NO. DESCRIPTION QTY.
1 4844 HANDLEBAR FOAMED DUAL STYLE 1
2 10626 ENGINE 51CC VPR CAT HNDLBR MNT 1
3 4822 ASSEMBLY TRIGGER LONG THROW 2
4 4827 BOLT 10-24 X 1/2 PPHMS GR5 ZN 2
5 90148 BOLT 10-24 X 3/4 HH GR5 BLK ZN 4
6 3004119 TRANSMISSION ASSEMBLY 1
7 10473 CABLE ASSEMBLY TWO INTO ONE 1
8 75300* KIT TOP CASTING 1
9 3004100 CLUTCH DRUM 1
10 8922 BALL BEARING R12 DOUBLE LIP 3
11 9814 GEAR 7T PINION THREADED, 5/8” THREAD 1
12 8924 SNAP RING 3
13 8915 DOWEL PIN STEEL 1/4” X 1/2” 2
21
19
10
20
18
15
10
12
14
16
17
16
8
10
9
11
12
13
6
4
3
1
2
5
21
20
7
kEY # PaRT NO. DESCRIPTION QTY.
14 8912 GEAR 44T 3/4” HOLE 1
15 8919 GASKET 1
16 8923 BALL BEARING R10 2
17 8914 GEAR 48T HARD 1
18 75600** KIT LOWER CASTING 1
19 8913 SHAFT OUTPUT 7/8” 1
20 8931F BOLT 1/4-20 X 2 SHCS F-T 4
21 8929 BOLT 1/4-20 X 1-1/2 SHCS 2
22 9214A GEAR 10T CLUSTER PINION HT 1
23 11468 GREASE EP2 MOLY 1
13
22
12
* The top casting kit (P/N: 75300) includes a gasket (P/N: 8919).It also
includes a shim (P/N: 3004149) that is not needed for the Dually.
** The lower casting kit (P/N: 75600) includes the powerhead trans-
mission gasket (P/N: 8919), and ball bearings (P/Ns: 8922, 8923).
GREASE
23
