EarthQuake W1265VCE User Manual
Page 22
OPERATING AND MAINTENANCE INSTRUCTIONS
196cc 4-Cycle Engine
Check for parts online at
www.getearthquake.com or call 800-345-6007 M-F 8-5
22

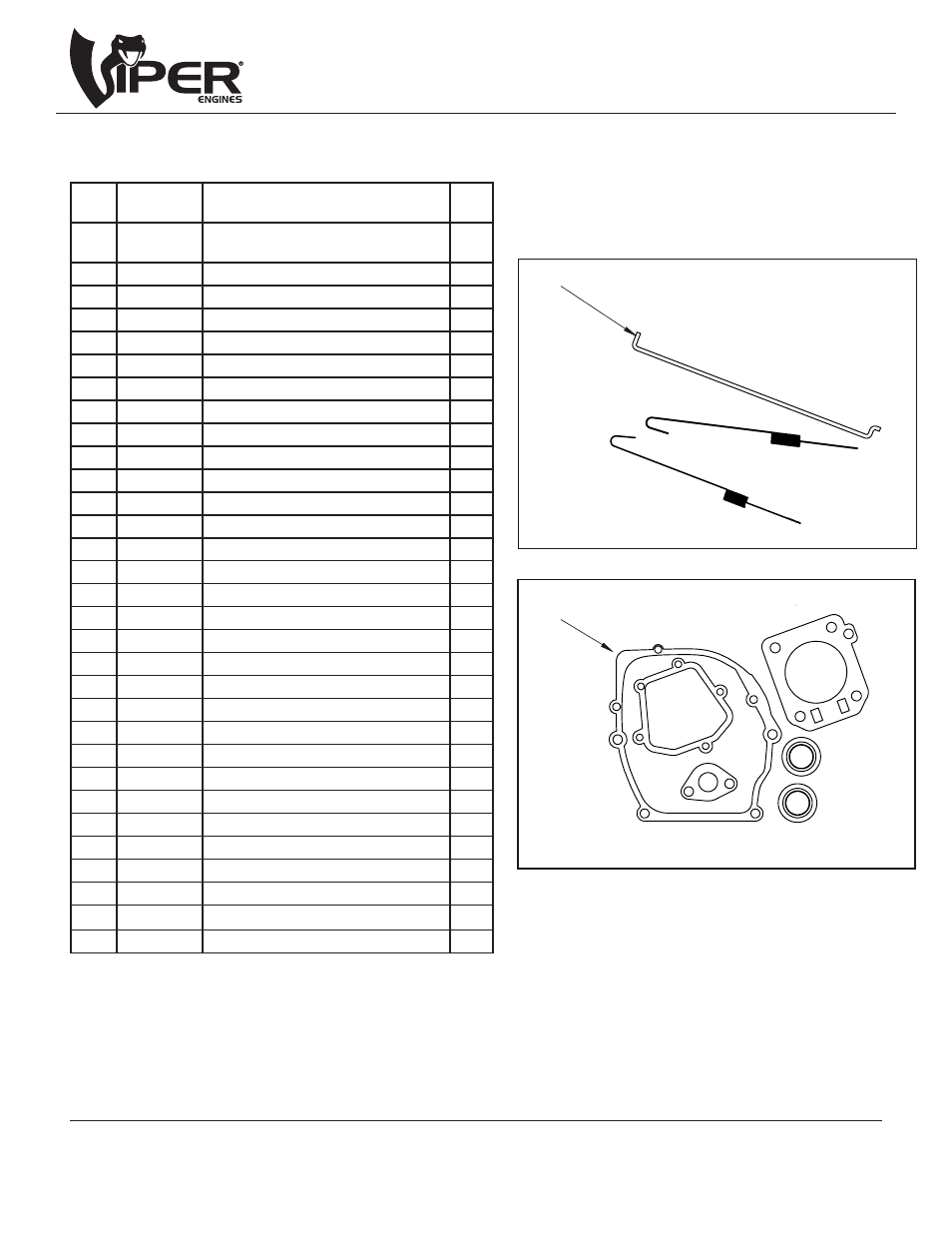

196cc VIPER ENGINE PARTS LIST
REF
NO.
PART
NO.
DESCRIPTION
QTY.
1
913446
RECOIL STARTER ASSEMBLY
(INCLUDES PULL-START HANDLE)
1
2
64237
FAN HOOD ASSEMBLY
1
3
913435
ENGINE SWITCH
1
4
64275
STARTER CUP
1
5
64276
FAN, FLYWHEEL
1
6
64277***
FLYWHEEL, MANUAL START
1
--
64782***
FLYWHEEL, ELECTRIC START
1
7
64684
IGNITION COIL ASSEMBLY
1
8
64207
STUD BOLT, M6 X 113
2
9
64305*
GASKET, INLET
1
10
64306
CONNECTING BLOCK
1
11
64307*
GASKET, CARBURETOR
1
12
64308
CARBURETOR ASSEMBLY
1
13
64309*
GASKET, AIR CLEANER
1
14
642812
AIR FILTER ELEMENT
1
15
64278
WING NUT
2
16
64685
AIR CLEANER KIT
1
17
64157
WASHER
2
18
64156
OIL DRAIN PLUG
2
19
913328
DIPSTICK ASSEMBLY
2
20
64212
SPARK PLUG
1
21
64294**
GASKET, EXHAUST
1
22
64686
MUFFLER KIT
1
23
913420
FUEL TANK SHOCK PAD
2
24
64296
FUEL LINE ASSEMBLY
1
25
64144
FUEL FILTER
1
26
64304
GAS TANK
1
27
64147
FUEL STRAINER CUP
1
28
6327
GAS CAP W/PACKING RING
1
29
64780
GOVERNOR SPRING KIT
1
30
64779
ENGINE GASKET KIT
1
All weights, specifications and features are approximate and are sub-
ject to change without notice. Due to continuous product improve-
ments, product images may not be exact items.
* These parts are only available as the carburetor gasket kit (P/N 64781).
** This part only available in the engine gasket kit (P/N 64779).
*** Ask customer service for assistance when choosing flywheel.
30
29
30
29
