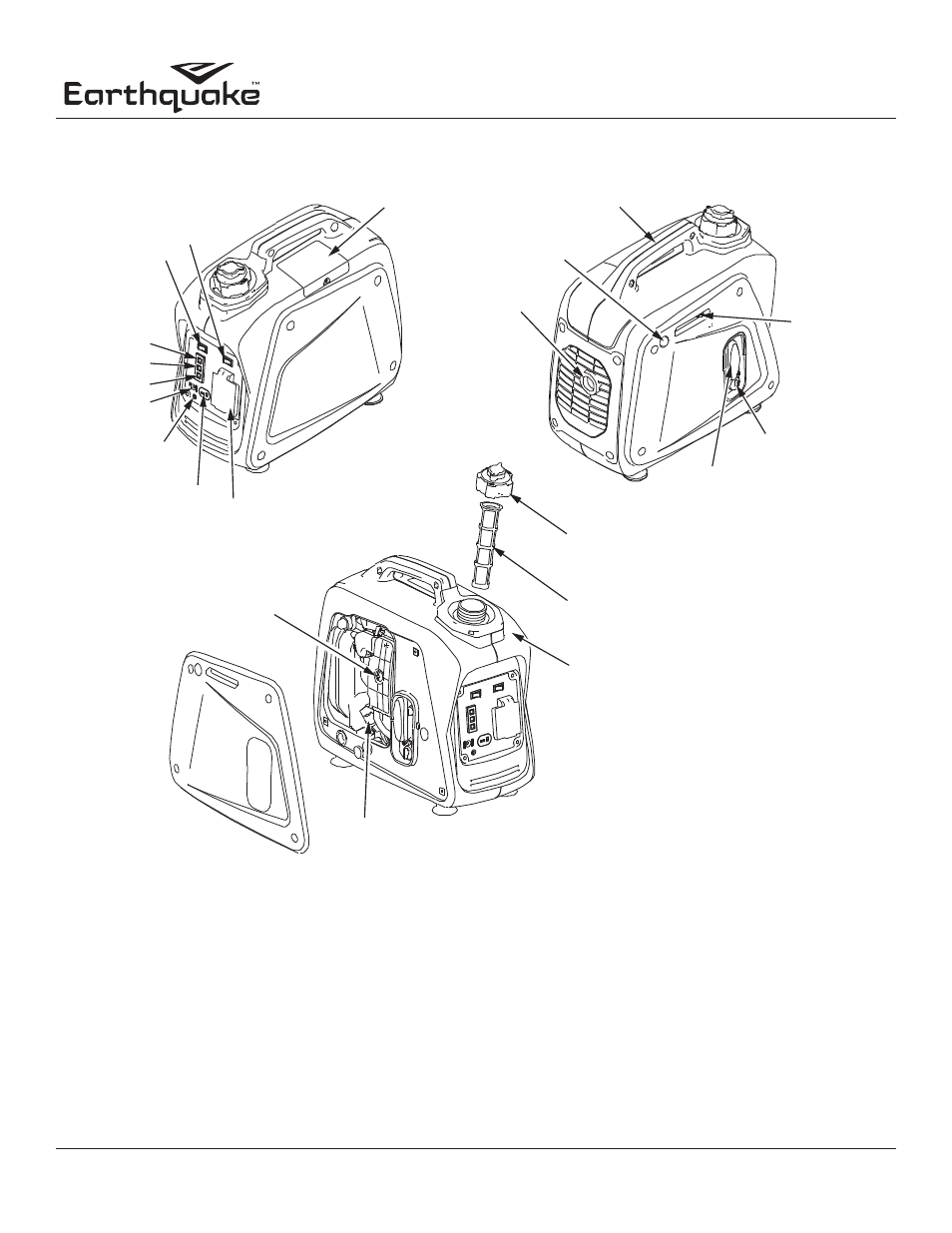

Features & Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
POR
TA
-0005R1
LEGEND:
1. ENGINE SWITCH
8. DC RECEPTACLE
15. FUEL VALVE
2. ECONOMY CONTROL SWITCH
9. AC RECEPTACLE
16. CHOKE LEVER
3. OUTPUT LIGHT
10. SPARK PLUG
17. AIR FILTER COVER
4. OVERLOAD INDICATOR LIGHT
11. CARRY HANDLE
18. OIL FILLER CAP
5. OIL WARNING LIGHT
12. PRIMER BULB
19. FUEL TANK
6. DC PROTECTOR
13. MUFFLER
20. FUEL STRAINER
7. GROUND (EARTH) TERMINAL
14. RECOIL STARTER
21. FUEL TANK CAP
