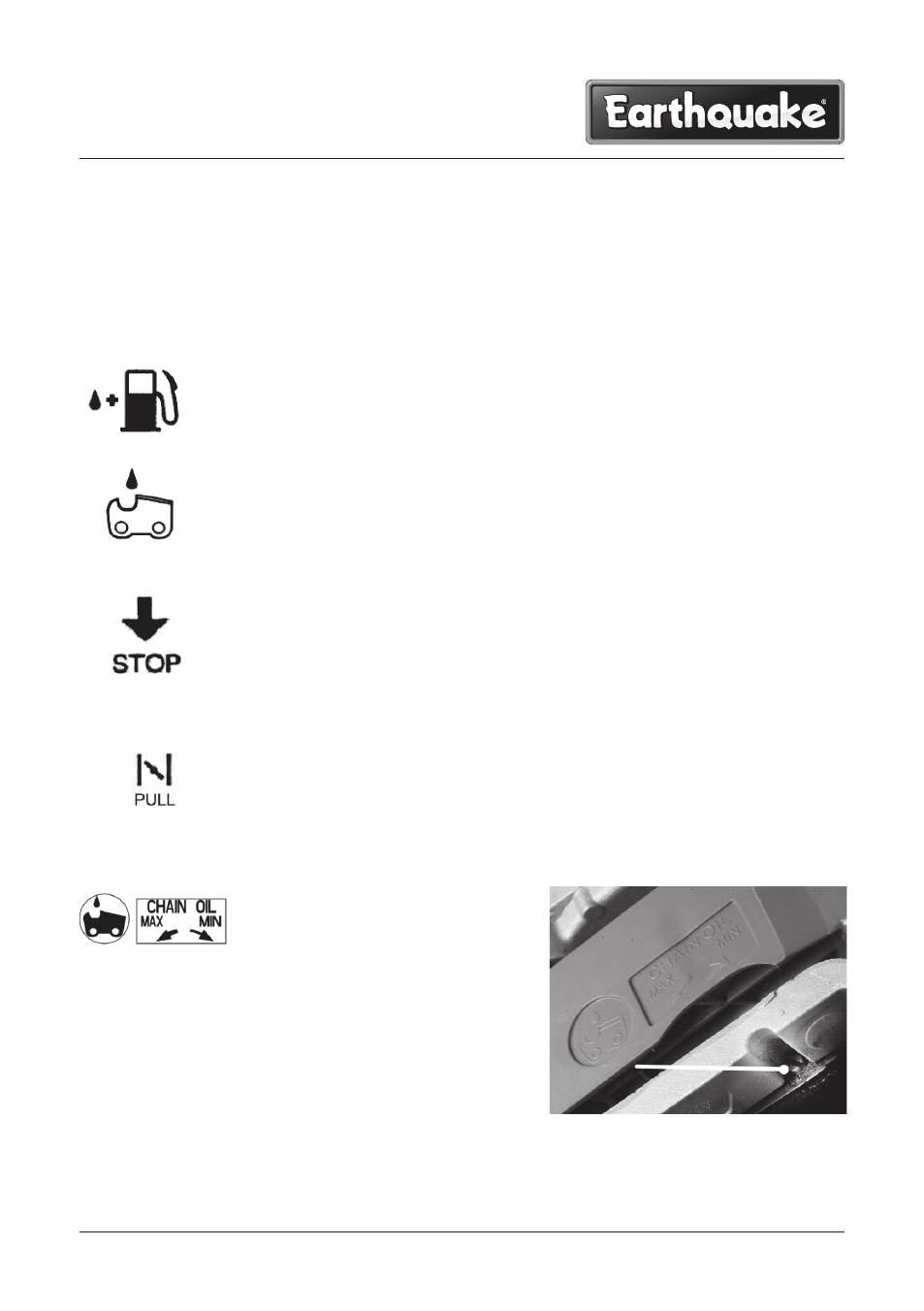

For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
(a). The port to refuel the oil/gas mixture.
Location: near the fuel cap
(b). The port to refill the chain oil
Location: near the oil cap
(c). Operate the engine switch
Flipping the switch to the "O" position immediately stops the engine.
Location: rear at the left side of the rear handle
(d). Operate the choke knob
Pull out the choke knob and the choke closes; push in the choke
knob and the choke opens.
Location: rear at the right side of the rear handle.
(e). Adjust the oil pump. If you
turn the rod by screwdriver follow
the arrow to the "MAX" position,
the chain oil flows more, and if
you turn to the "MIN" position, less.
Location: Bottom of the power unit
