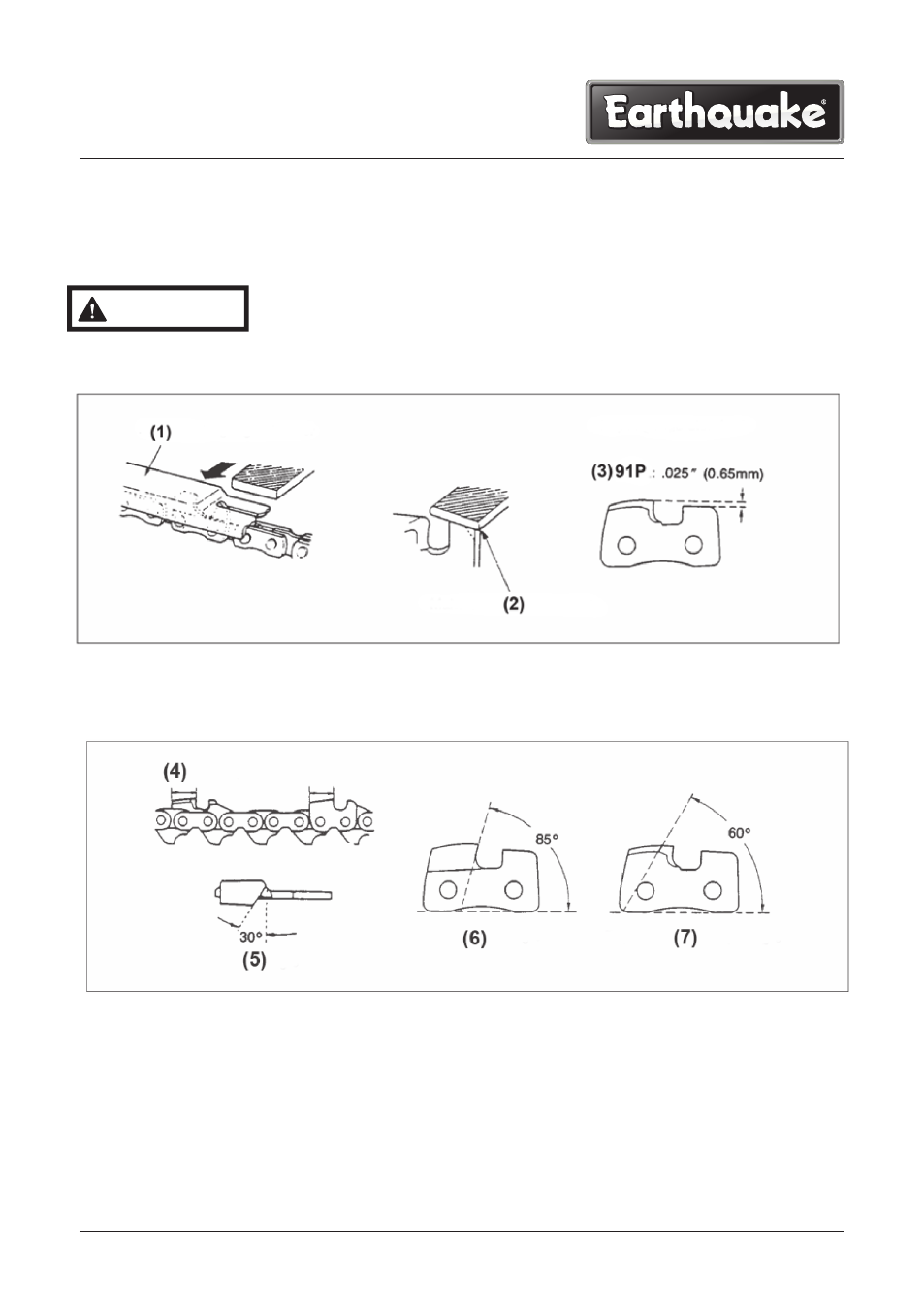

Maintenance of Chain / Bar
After every cutter has been set, check the depth of the rake by using a depth gauge to
measure the height difference. File it to the proper level as illustrated.
Be sure to round off the front edge to reduce the chance
of kickback or tie-strap breakage.
(1) Appropriate gauge checker (2) Make the shoulder round (3) Depth gauge standard
Make sure every cutter has the same length and edge angles as shown below.
(4) Cutting length (5) Filling angle (6) Side plate angle (7) Top plate cutting angle
WARNING
