5
LAN
VIDEO
CONTROL
AUDIO IN1
AUDIO IN2
AUDIO OUT
RGB
OUT
RGB1
RGB2
HDMI
R L R L
AUDIO IN3 AUDIO IN4
C B /P B Y
C R /P R
B/C B /P B R/C R /P R G/Y
H V
USB
REMOTE
CONTROL
S-VIDEO
J AUDIO IN 1, K AUDIO IN 2
Ø3.5 stereo mini jack
• 500 mVrms 47kΩ terminator
AUDIO IN 3 L R, M L, AUDIO IN 4 N R, O L
RCA jack x2
• 500 mVrms 47kΩ terminator
P AUDIO OUT
Ø3.5 stereo mini jack
• 500 mVrms 1kΩ output impedance
Q REMOTE CONTROL
Ø3.5 stereo mini jack
• To be connected with the remote control that came with the projector.
R CONTROL
D-sub 9pin plug
• About the details of RS-232C communication, please refer to the following RS-232C
Communication in this manual.
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

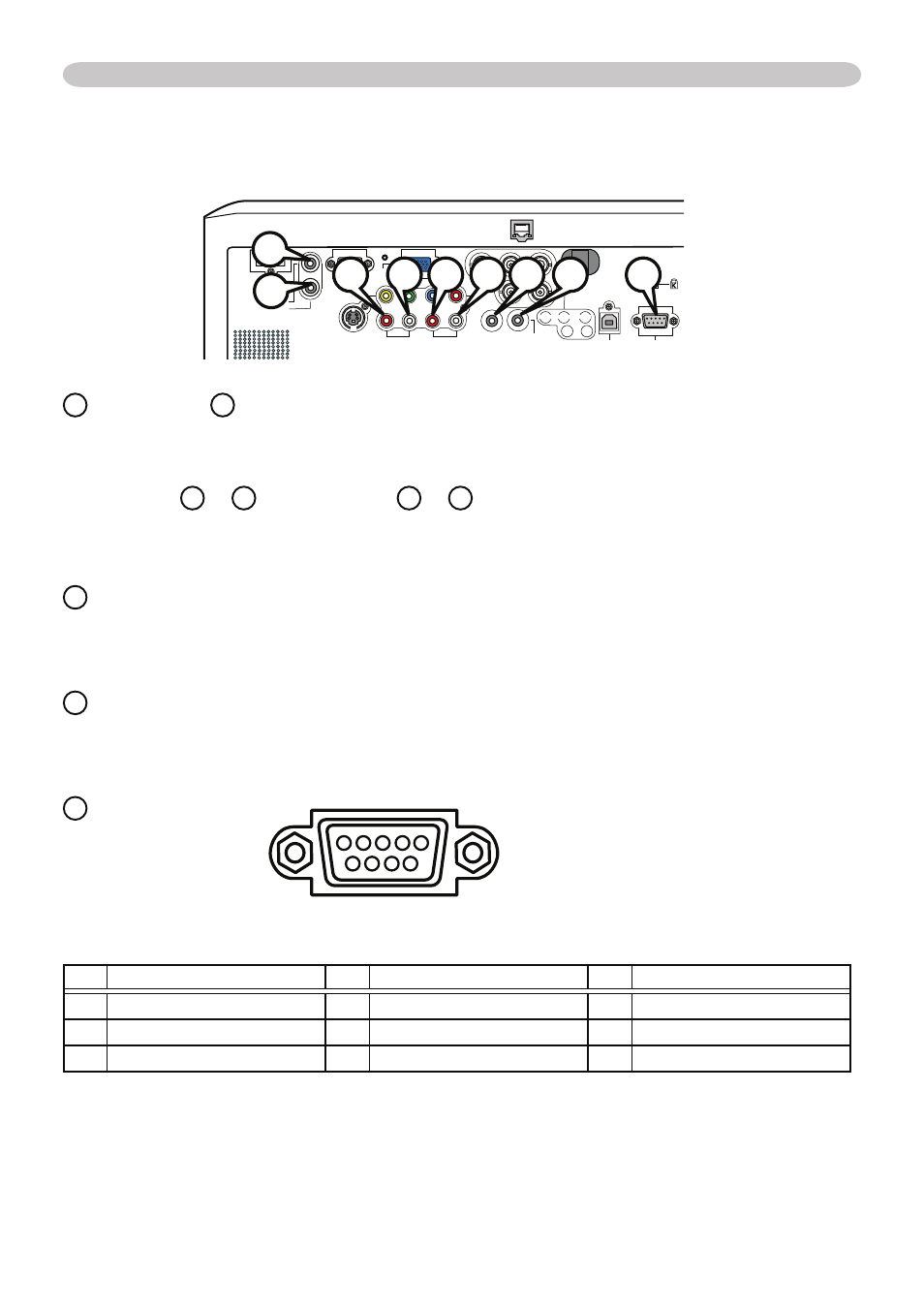

Connection to the ports (continued)
9 8 7 6
5 4 3 2 1
J
K
L M N O P Q R
