8
Power Output: 120W
Preamp Tubes: 4x ECC83
Power Tubes: 2x KT88, 1x ECC83
Channels: Three
Controls (each ch): Gain - Master - Presence
Hi Gain switch (Ch2 + Ch3)
EQ Controls (each ch): Low - Mid - High (passive)
Speaker Outputs:
. . . . . . . .Two 8 ohm (or one 4 ohm)
. . . . . . . .Two 16 ohm (or one 8 ohm)
. . . . . . . .One 16 ohm
Other Features:
. . . . . . . .Solo boost
. . . . . . . .Loop Assign rotary control
. . . . . . . .Effect Send level control / Mix
. . . . . . . .Bias (low/high switch)
. . . . . . . .Smart Controller
. . . . . . . .Service ATCS interface (optional)
. . . . . . . .MIDI In - MIDI Out/Through ports
Dimensions: 590 x 170 x 260 mm / 23.23” x 6.69” x 10.24” - Weight: 9,8 kg / 21.61 lbs
POWER REQUIREMENT: 100V; 120V; 230V; 240V - 50/60Hz (Voltage is factory preset according to region of sale).
DV Mark amps/combos are manufactured to be sold and used in the country of purchase, and they are factory preset to at country’s voltage.
Due to homologation issues, the voltage may not be changed.
TECHNICAL SPECS

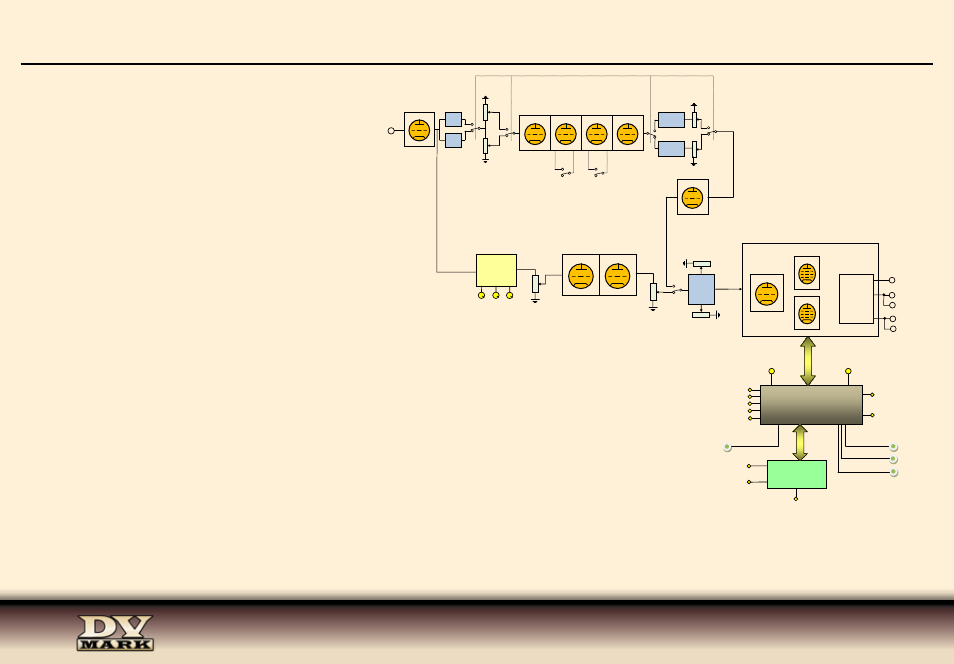

BLOCK DIAGRAM
Input
Gain3
½ ECC83 High
Pass2 ½ ECC83
Ch2/Ch3
High
Pass3
½ ECC83 ½ ECC83 ½ ECC83
Gain2
Tone
control 2
Tone
control 3
Master 2
Master 3
½ ECC83
Gain1 Passive
tone
control
Low Mid High
½ ECC83 ½ ECC83
Send
Return
Master1
Send Level
Mix
To PA
High gain ch3 High gain ch2
Supply
Standby
On/Off
fuse
mains
Microcontroller
Bias
Service
PowerAmp
4 Ohm
ECC83
Output
transformer
KT88
KT88 8 Ohm
16 Ohm
CH1
CH2
CH3
Loop
Bias
Loop Assign Ch select
Controller
Midi In
Midi through
