Triple 6 – Dv Mark Triple 6 User Manual
Page 7
7
life’ is taken out of them. High Bias mode gives top quality and power, and higher-fidelity sound—but the power consumption and dissipation
of the tubes increases. In either mode, unlike other tube amplifiers, the Triple 6 is able to greatly prolong the life of its tubes by keeping them
optimally biased at all times.

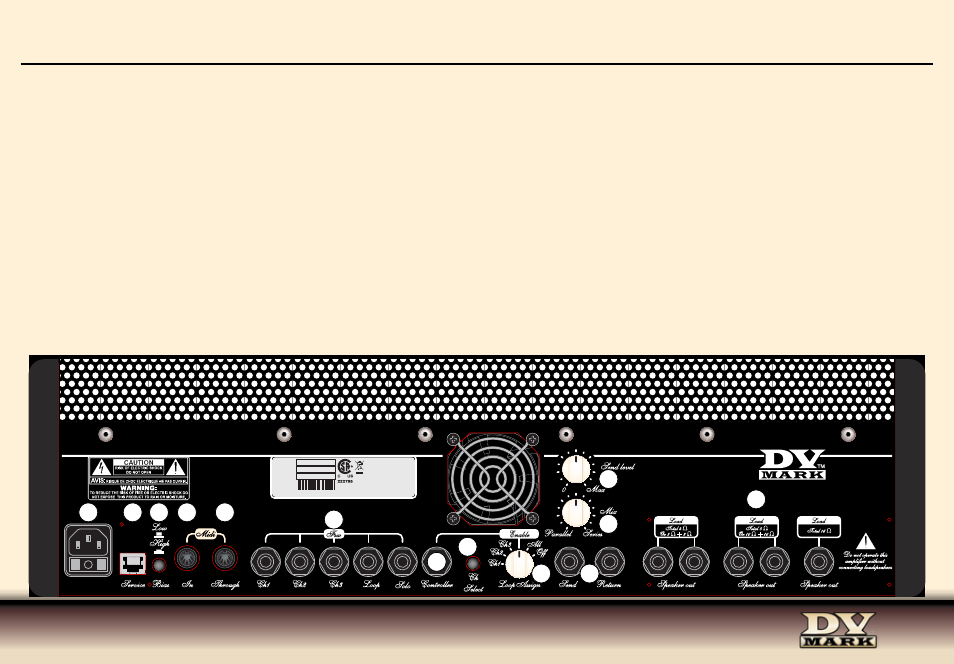

22) SERVICE The ATCS (Advanced Tube Control System) allows users or service technicians to connect this port to the optional DV
Controller interface, for collecting technical data and tube parameters from the amp.
23) MIDI IN This input port receives incoming MIDI information from an external MIDI device. The MIDI receive address is set to “0” by
default. If your external MIDI device transmits on another address, you can change the default address by holding the CH SELECT (18) switch
for about 10 seconds—the unit then enters “Learn Mode” and you can set the new address by pressing any switch on your MIDI pedalboard
to initialize the connection to the amp.
24) MIDI OUT/THROUGH This output jack sends out MIDI messages identical to those coming in through the MIDI IN.
25) AC POWER SOCKET Make sure the unit is grounded; all three terminals of the AC power cord must be connected to avoid any injury
to the user or damage to the unit. DV Mark amps and combos are manufactured to be used in the country where they have been sold, and
are factory preset to that country’s voltage. So make sure you’re sending the correct voltage to your amp before you connect it to AC power.
HiGain
Ch2
Ch1
-6 dB
0
Max
0
Max
0
Max
Bass
Middle
High
Gain
Master
Presence
0
Max
0
Max
0
Max
Bass
Middle
High
Gain
Master
Presence
HiGain
Ch3
0
Max
0
Max
0
Max
Bass
Middle
High
Gain
Master
Presence
0 dB
Input
Solo
On
Standby
Triple 6
Controller
Ch
Select
LoopAssign
Ch1
Ch2
Ch3
All
Off
Enable
Speaker out
Service Bias
Ch1
Ch2
Ch3
Loop
Solo
Speaker out
Total 4 Ω
Or 8 Ω + 8 Ω
Load
Total 8 Ω
Or 16 Ω + 16 Ω
Load
Total 16 Ω
Load
Low
High
Send
Return
Speaker out
Fsw
Send level
Mix
0
Max
Parallel Series
Do not operate this
amplifier without
connecting loudspeakers
Midi
In
Through
Model
TRIPLE 6
CAUTION:
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE
REPLACE ONLY WITH SAME
TYPE AND RATING FUSE.
ATTENTION:
REMPLACER UNIQUEMENT PAR
UN FUSIBLE DE MEME TYPE.
Ser.Nr.
Date
120V
~
AC 60Hz Fuse T 8 A 250V - Power 200W
01/2012
1
2
3
3
3
4
4
5
5
5
6
6
6
7
8
9
7
8
9
7
8
9
10 11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
