3. Place the projector onto the mounting pan within the frame, align mounting pan holes with the projector mounting
points, and attach with enclosed mounting hardware.
4. To align projector, adjust pivot, pitch, height and tilt.
Important Notes:
- AVStacks may be double-stacked by bolting two units together vertically or horizontally. If stacking horizontally, be
careful of your specific projectors exhaust (i.e., do not exhaust into 2 nd projectors intake).
- Never stack more than two units high.
- AVStacks can be installed inverted as well.

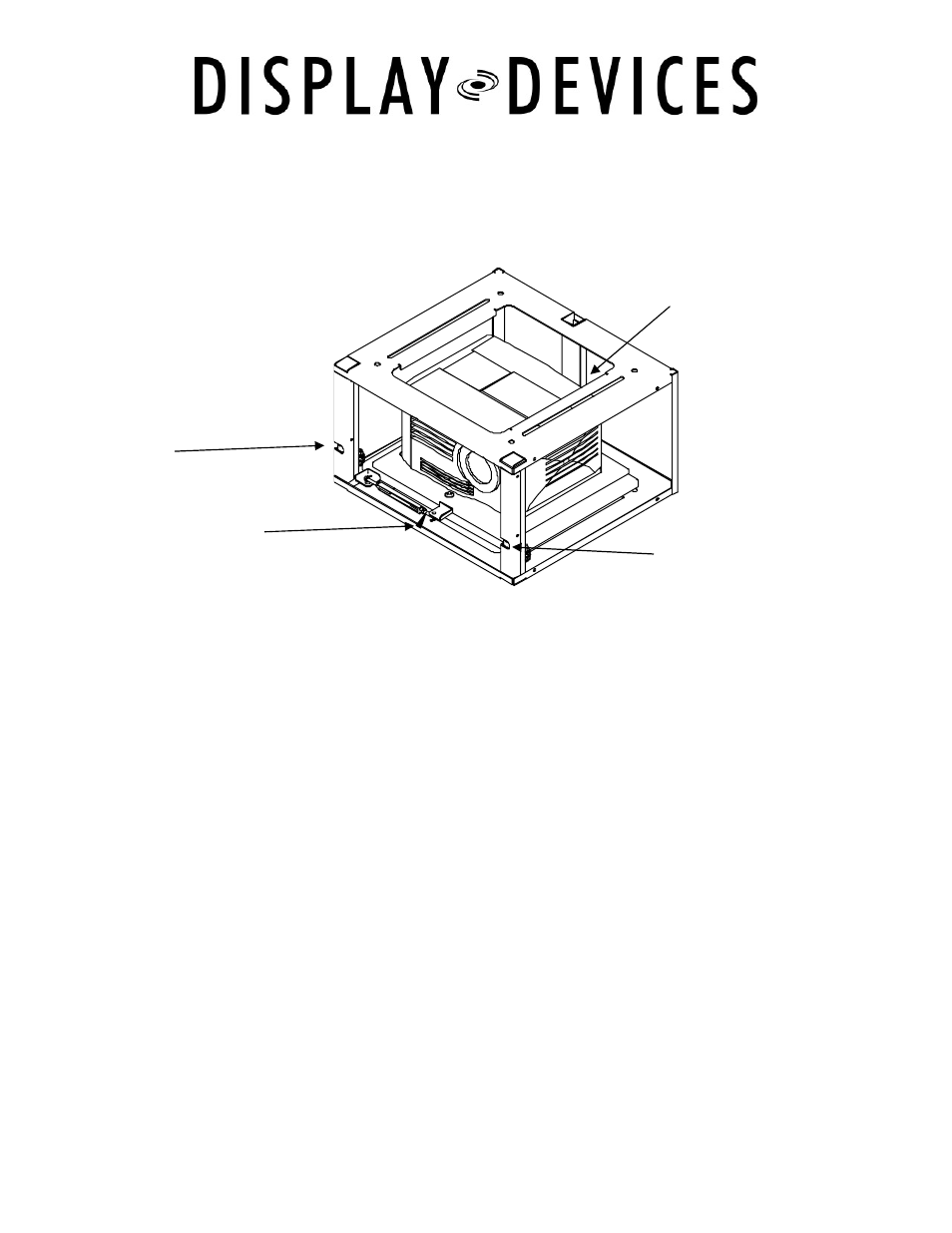

YAW Adjustment
Pitch and height
Adjustment
Pitch and height
Adjustment
Tilt and height
Adjustment
