Temperature Controller
Operation
The Programmable Cooling System provides two levels of fan control, an audible alarm, switched AC
power-down, and displays the current temperature of the enclosure.
Factory presets:
Fan set 1:
70
°
Fan set 2:
74
°
Alarm:
100
°
Power off: 104
°
To start operation, turn plug in the power supply. The controller may sound an alarm, and the fans will
turn on for 10 to 20 seconds. The system will then reset to a start state.

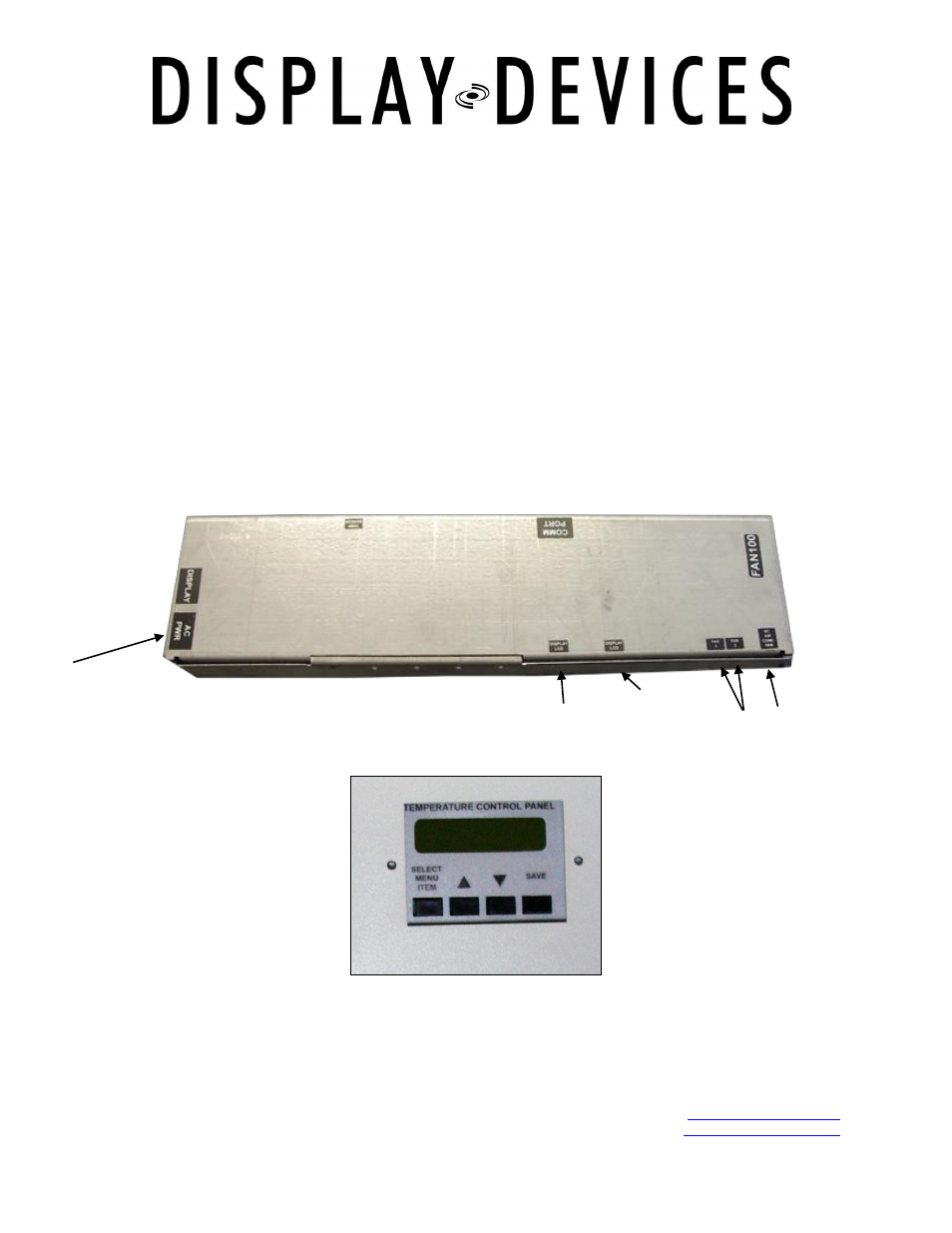

Power Supply
Control Panel
(behind side access door)
Temp Sensors
Control Panel
Fans DC Power
Projector
Power Cord
