DILLON D-TERMINATOR

INSTRUCTIONS

Congratulations on your selection of

the Dillon D-Terminator high precision
electronic scale. The D-Terminator is a
highly sensitive Electronic
Computerized Load Cell Scale. With
many features only found in very
expensive laboratory and jeweler’s
scales, the D-Terminator is balanced
and designed for multi-purpose usage.
The maximum capacity is 57 Grams or
900 Grains and the resolution is 0.01
GRAMS or 0.1 GRAINS. Features
include: an anti-static draft shield,
Calibration function, an overload cell
protector, automatic shut-off, an audi-
ble beep when any function key is
pressed, and AC or battery operation for
portability and field use. No other scale
on the market today provides as much
value or as many quality features as the
D-Terminator.

A. Battery Installation:

1. Turn the scale onto its side.

Remove the battery compartment
cover on the back of the scale. To do
so, press the tabs to the front and tip it
off. FIG 1.

2. Install the four AA batteries into

the compartment and replace the cover.
FIG 2.

CAUTION: WHEN INSERTING THE
BATTERIES, DO NOT APPLY PRESSURE
TO THE FOUR LOAD CELL PLATE FEET
ON THE TOP SIDE OF THE SCALE. THEY
ARE NOT DESIGNED FOR WEIGHT
EXCEEDING 57 GRAMS. FIG 3.

B. AC Adapter/Battery

Eliminator:

1. Your scale can also be operated on

120 volt AC by using the furnished AC
adapter. The adapter provides six volts
DC and plugs into the jack at the rear
of the scale. FIG 4.

2. Insert the adapter plug into the

socket on the rear of the scale and then

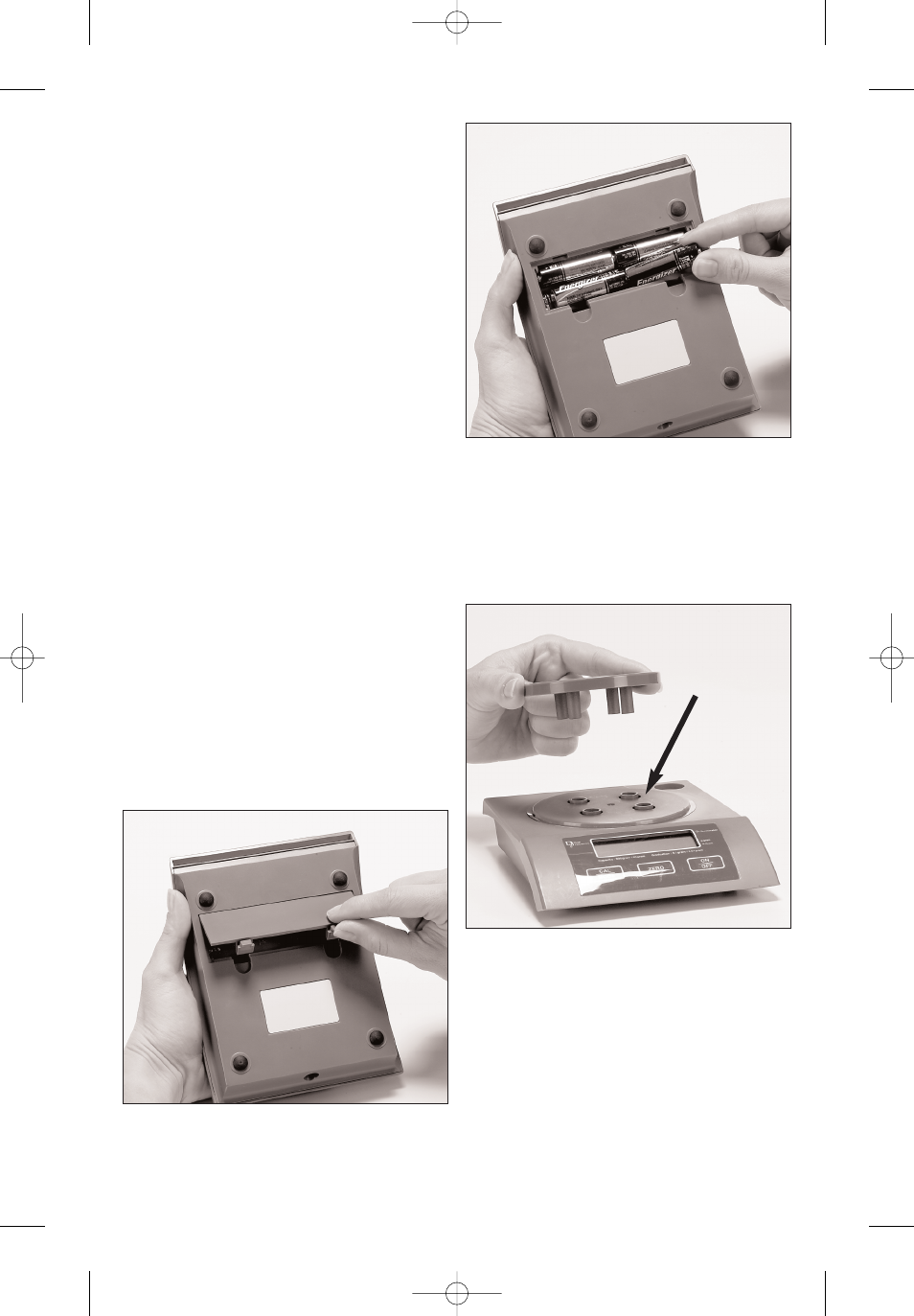

Fig. 1

Fig. 2

Fig. 3
