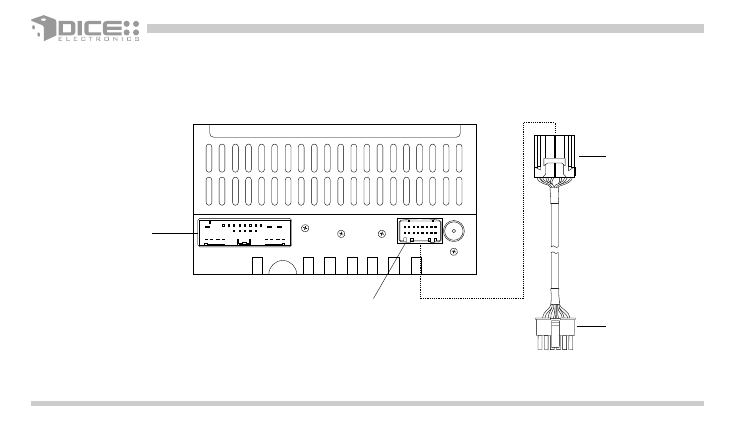

5 - Connect vehicle specific harness -You can access the CD changer/SAT port located on the back of the radio. Unplug
the factory connection if present and plug the Mazda-R2 connector into the receptacle. Plug the factory connection to
the cable receptacle if it was removed from the radio. The connector should securely lock.
CDC/SAT port
factory radio
harness connection
connect to
interface unit
Mazda-R2
connector
