Chin-up bar assembly – Deltech Fitness DF4500L- Pro Power Rack with Lat Attachment User Manual
Page 11
ADJUSTING THE WEIGHT HOLDERS:
RAISE AND LOWER THE WEIGHT HOLDERS BY TURNING THE KNOB TO
LOOSEN, THEN USE THE PULL PIN TO MAKE THE HEIGHT ADJUSTMENT.
MAKE SURE THE PULL PIN IS SECURE IN THE ADJUSTMENT HOLE THEN
TURN THE KNOB TO TIGHTEN BEFORE USE.
* NOTE MAKE SURE THE WEIGHT HOLDERS ARE THE SAME HEIGHT ON
BOTH SIDES BEFORE USE.
ADJUSTING THE SPOTTER BARS:
RAISE AND LOWER THE SPOTTER BARS BY USING THE PULL PINS TO MAKE
THE HEIGHT ADJUSTMENT. MAKE SURE THE PULL PIN IS SECURE IN THE
ADJUSTMENT HOLE. .
* NOTE MAKE SURE THE SPOTTER BARS ARE THE SAME HEIGHT ON EACH
SIDE BEFORE USE.

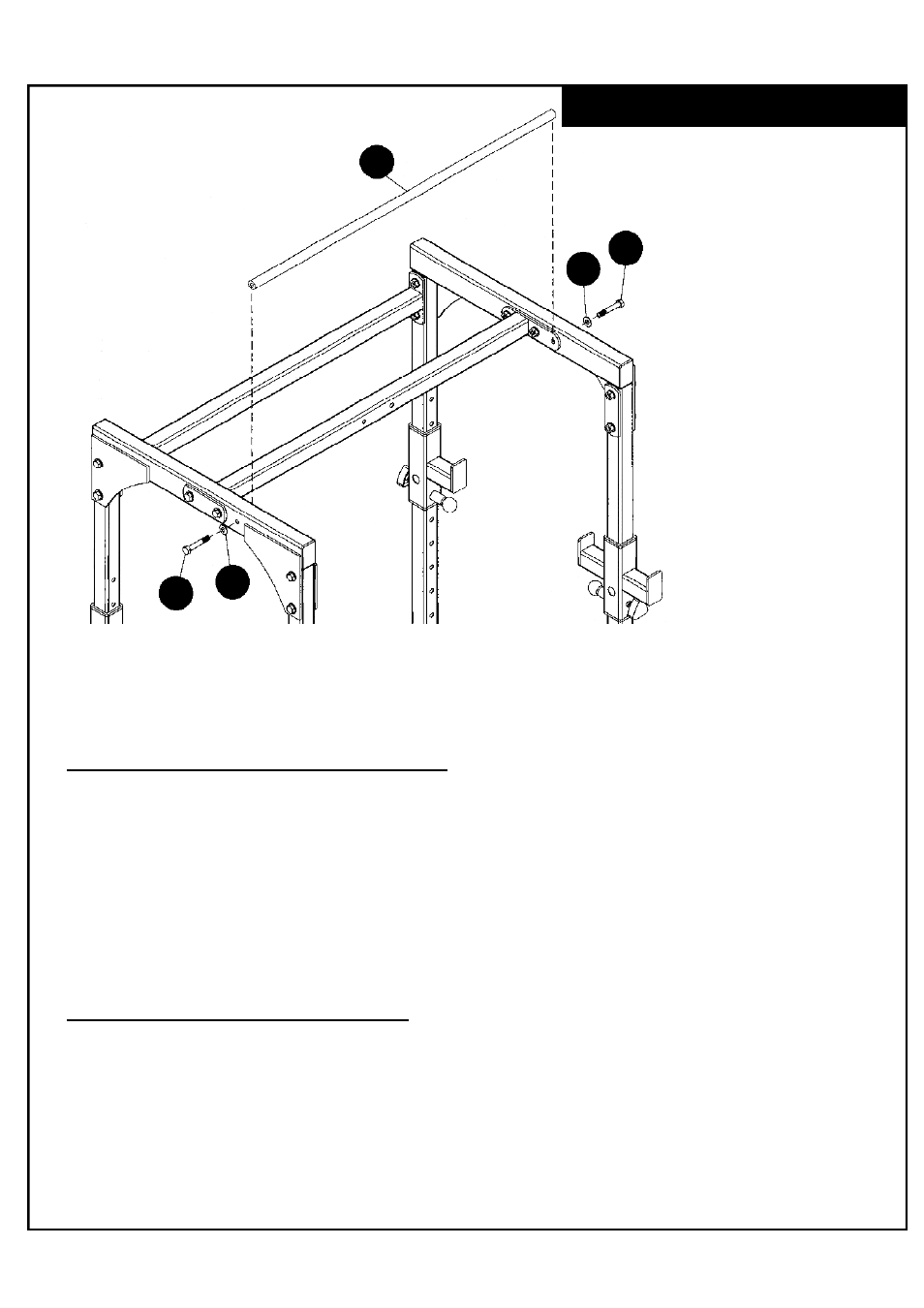

INSTALL THE CHIN-UP BAR (H) INTO THE CHIN-UP BAR ASSEMBLY USING THE
M12 x 75MM BOLTS (P), AND M12 WASHERS (Q).
P
P
Q
Q
H
CHIN-UP BAR ASSEMBLY
