Frame assembly – Deltech Fitness DF4500- Pro Power Rack User Manual
Page 9

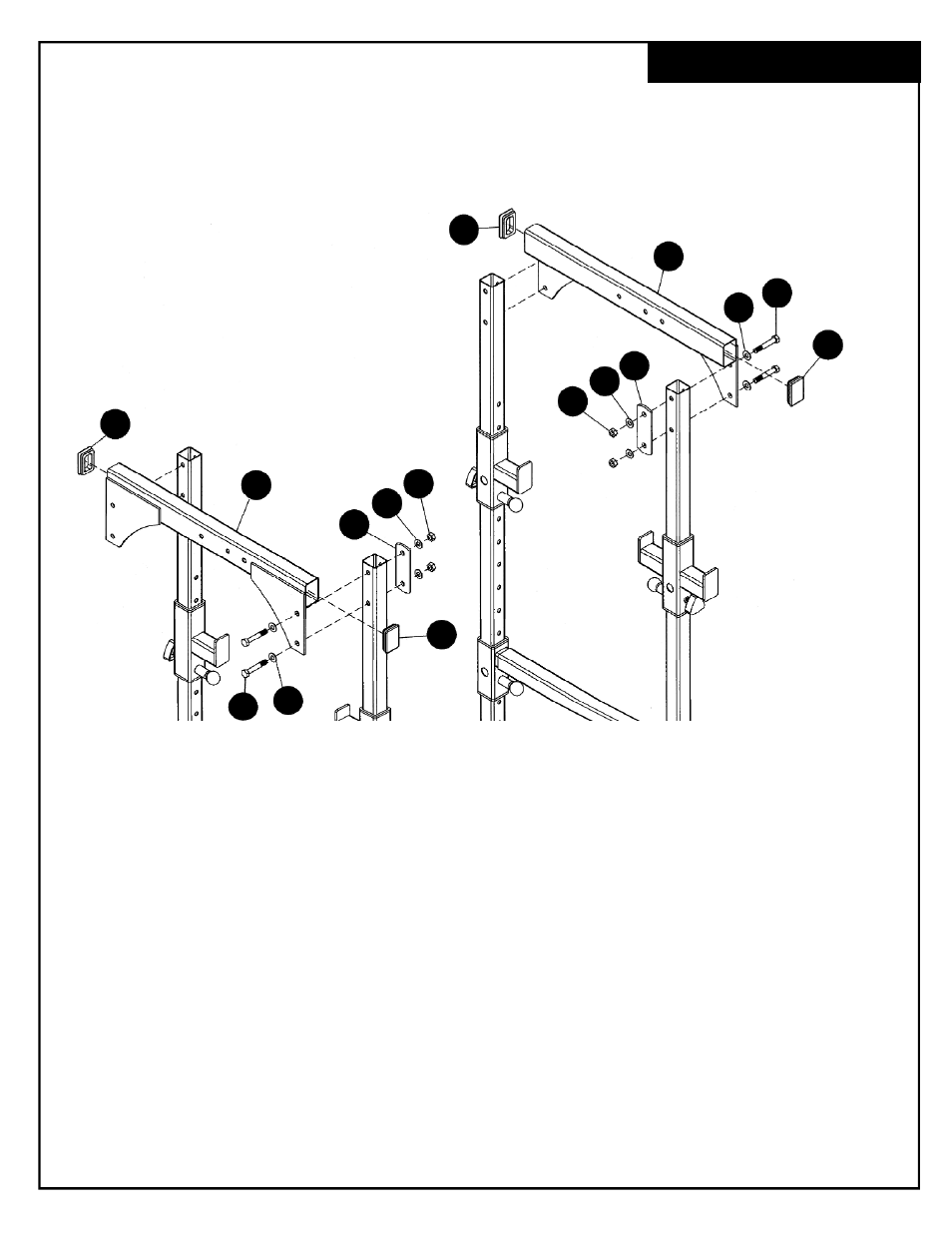

INSTALL THE LEFT AND RIGHT TOP FRAME SUPPORTS (C), TO THE FRONT
UPRIGHTS USING THE M12 x 75MM BOLTS (P), M12 WASHERS (Q), MOUNTING
FLANGES (U), AND M12 NUTS (S). DO NOT BOLT TO THE REAR UPRIGHTS AT THIS
TIME.
INSERT THE RECTANGULAR CAPS (M) INTO THE ENDS OF THE TOP FRAME
SUPPORTS (C).
FRAME ASSEMBLY
M
M
M
M
C
C
P
P
Q
Q
Q
Q
U
U
S
S
