Seat & backrest assembly – Deltech Fitness DF9500- Flat/Incline/Decline Bench User Manual
Page 4

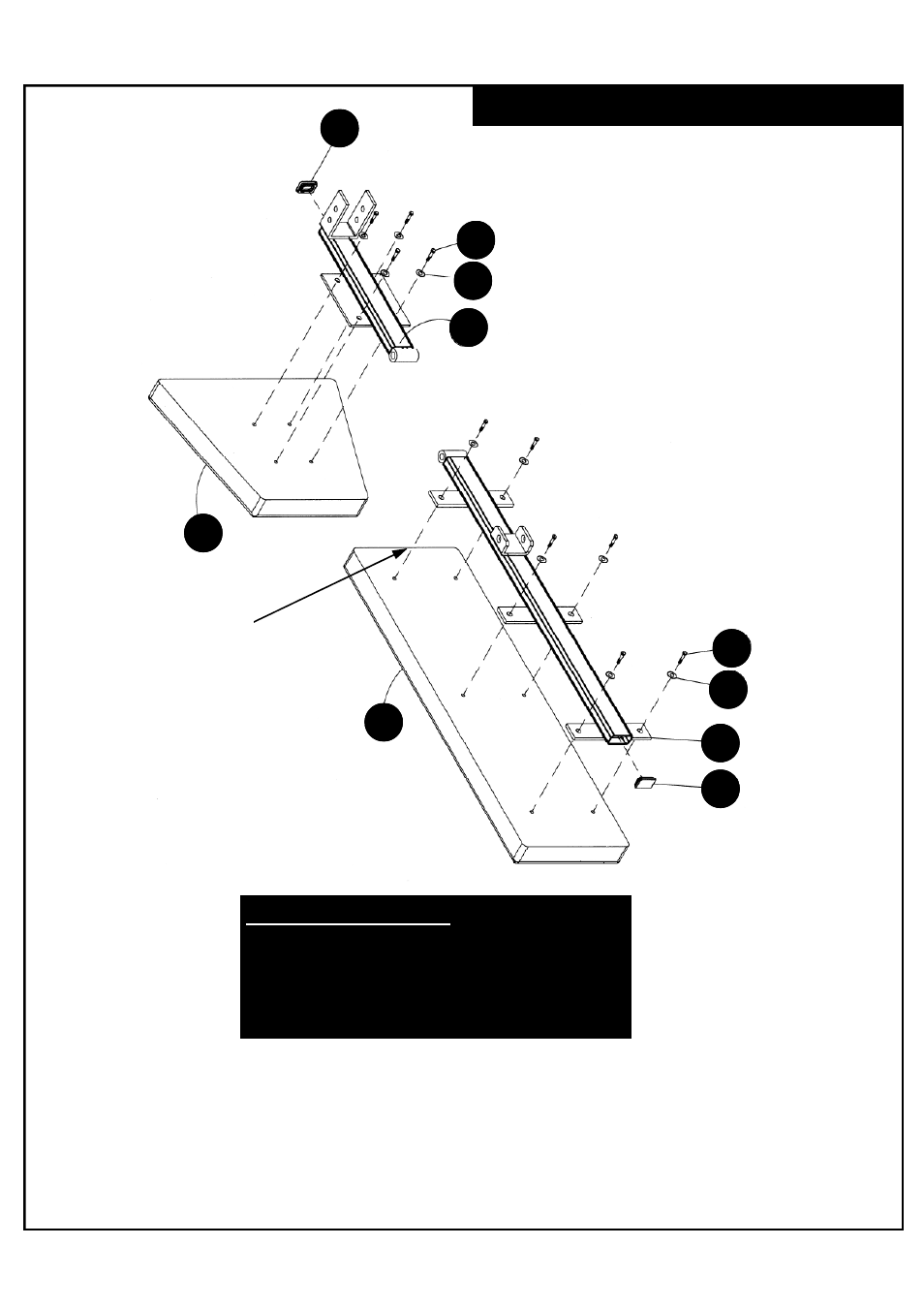

NOTE: THE SEAM GOES
TO THE BOTTOM SIDE
INSERT PLASTIC END CAPS (R) ONTO ENDS OF BACKREST AND SEAT FRAME.
ATTACH THE SEAT (F) TO THE SEAT FRAME (J) USING THE M10 BOLTS (U) AND THE M10
FLAT WASHERS (W).
ATTACH THE BACKREST (A) TO THE BACKREST FRAME (I) USING THE M10 BOLTS (U) AND
THE M10 FLAT WASHERS (W).
SEAT & BACKREST ASSEMBLY
TOOLS REQUIRED:
METRIC WRENCHES OR SOCKET SET
Some components may be pre-installed
from the factory
R
R
J
U
U
W
W
I
F
A
