6
Procedure (Continued)
10. Power the projector and adjust projector location.

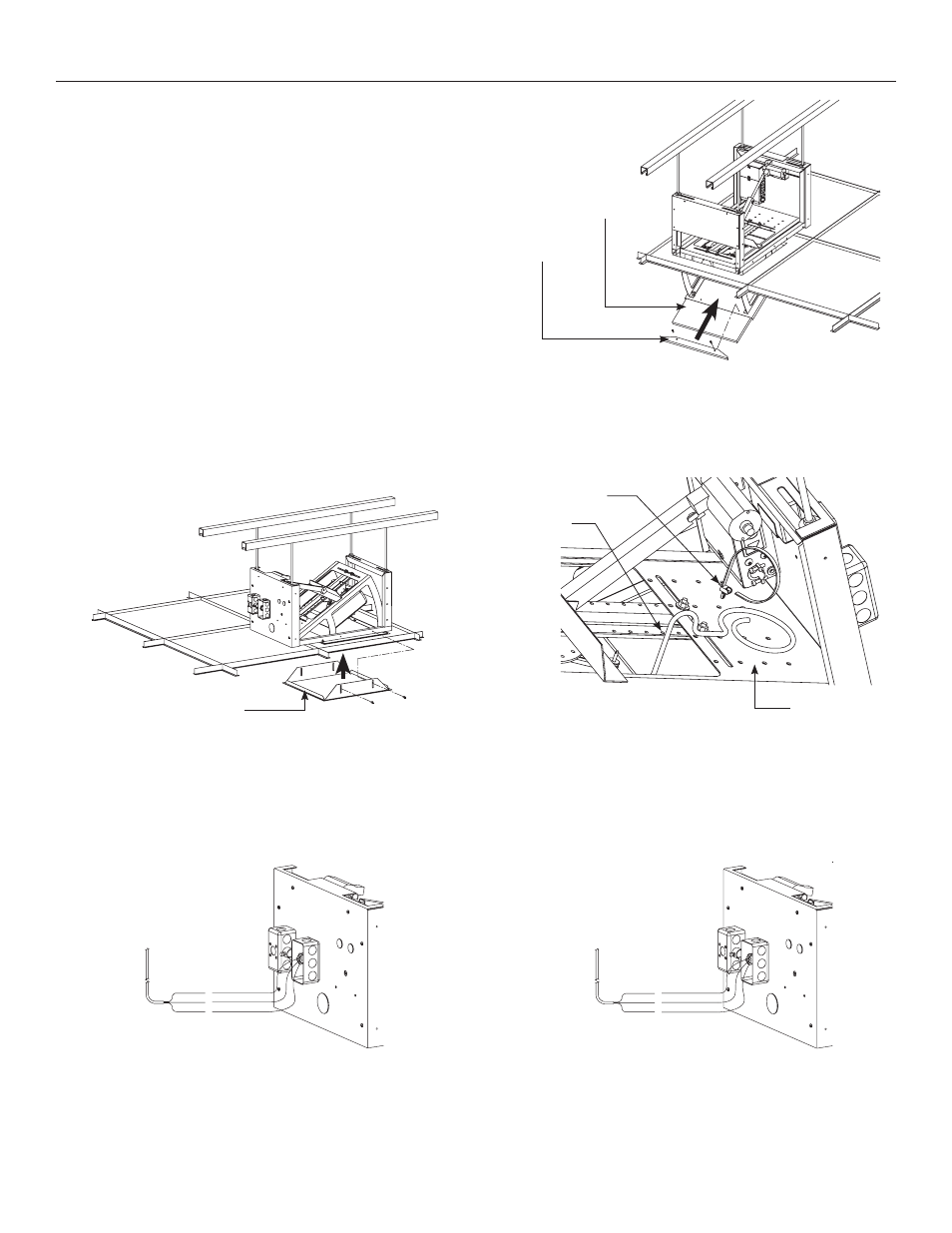

11. Remove Ceiling Tile Holder Cap from Da-Lift. Install Ceiling Tile
cutout from step 6 into Ceiling Tile Holder and assemble Ceiling
Tile Holder Cap. See Figure 12.
12. Install Trim Piece onto Da-Lift. See Figure 13. You may need to
adjust the position of the Ceiling Tile Holder to clear the Trim.
13. Use provided Cable Ties for cable management. See Figure 14.
Allow enough slack in the cords for projector movement.
If Da-Lift is a 220V version, use the supplied electrical adapter.
14. Use a licensed electrician to wire the Da-Lift. See Figure 15 (120
volt) or Figure 16 (220 volt). Plug the power supply into the
receptacle of the Da-Lift.
Figure 13
Figure 12
Ceiling Tile
Holder Cap
Ceiling Tile
Trim
Figure 14
Cable Tie
Holes
A
Cable Storage
Figure 15 Figure 16
220V AC
50Hz Supply
Hot
Common
Ground
Recommended Wire Size: 12AWG
Brown (Hot)
Blue (Common)
Green (Ground)
120V AC
60Hz
Supply
Hot
Common
Ground
Recommended Wire Size: 12AWG
Black (Hot)
White (Common)
Green (Ground)
