Da-Lite Da-Lift Pivot Motorized Projector Lift - Manual (Page 3)

3

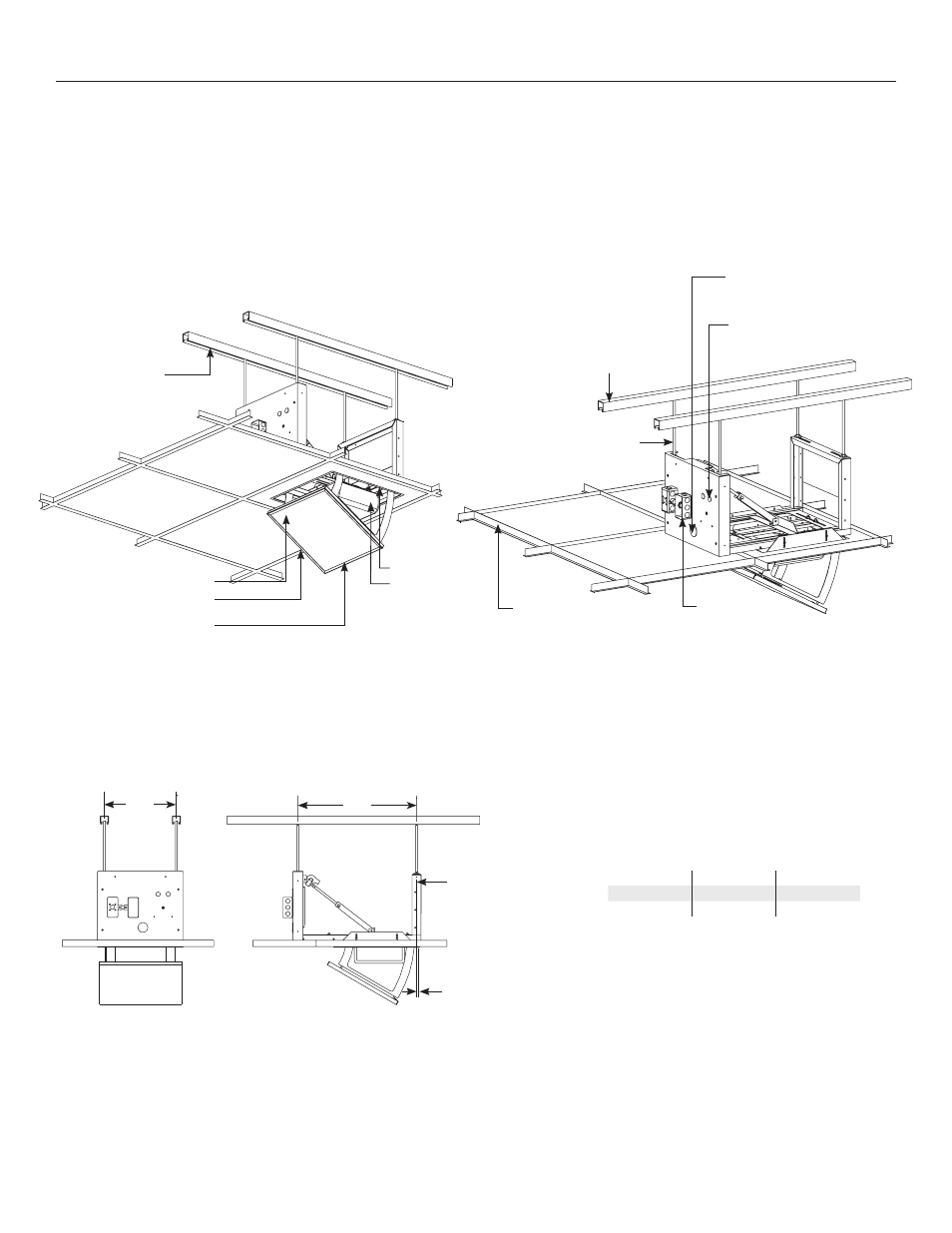

Figure 3
Centerline
of All-Thread
5/16" Centerline of
All-Thread to Cutout
"L" "W"
Da-Lift Model "L" "W"
26P 23-1/2" 7" TO 14-1/4"
33P 30-1/2" 11-1/2" TO 18-3/4"
Figure 1 Figure 2
Channel
(Not Supplied)
Trim
Projector
Ceiling Tile
Ceiling Tile Holder Cap
Ceiling Tile Holder
Procedure
1. The following procedure is shown with suspended ceiling
construction but the Pivoting Da-Lift will work with drywall
ceiling. Remove contents from carton and examine for
damaged or missing parts.
If installing the Pivoting Da-Lift with a plenum cover, fasten
Plenum Cover Bottom to Da-Lift first. See Plenum Cover
instruction sheet Steps #1 and #2.
3/8" All-Thread, Nuts, and
Washers (Not Supplied)
1/2" Conduit Knockout
(For Wall Switch or Optional
Remote Receiver)
1-1/2" Conduit Knockout
(For Projector Signal Cable)
120V AC
Connection
Suspended Ceiling
Grid and Tile
Channel Mounted
To Structural Ceiling
(Not Supplied)
