4

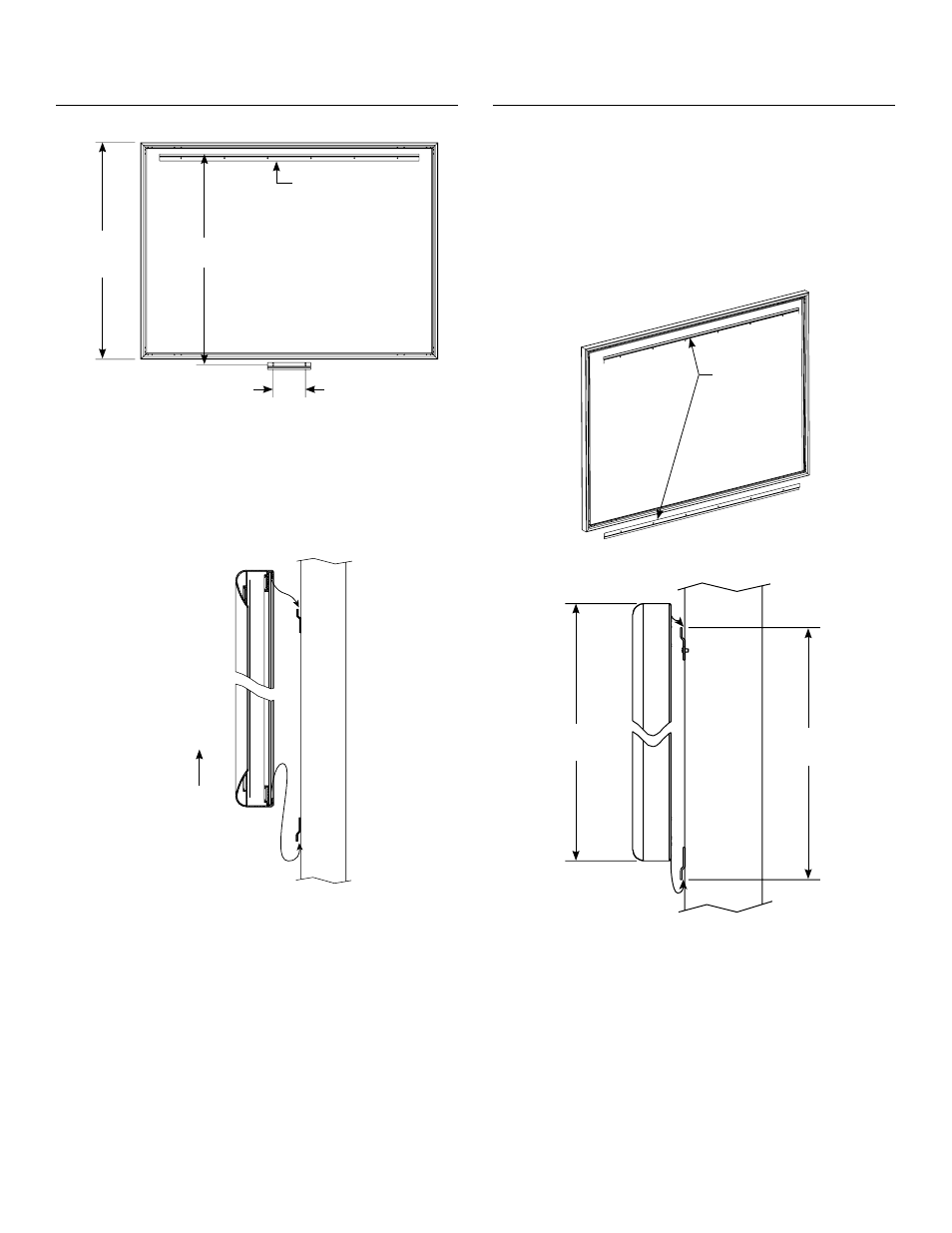

Method 1 (Screens 80" And Smaller
In Viewing Width)
Method 2 (Screens Over 80" Up To 96"
In Viewing Width)
Method 2
1. Secure the large wall bracket to wall studs at the desired
height. Make sure the large bracket is level. The top of the
frame will be 1/8" above the top of the large wall bracket when
mounted. You will need at least 5/8" clearance above the
bracket to hang the screen. Figures 5 and 6 show the proper
orientation for the supplied wall brackets.
2. To install the lower wall bracket, you must measure the
overall height of the screen frame and subtract 1/4". This is
the dimension from the top of the upper wall bracket to the
bottom of the lower wall bracket. See Figure 6.
3. Position the screen with the attached surface onto the top
wall bracket as shown in Figure 6. Push down at the center of
the bottom frame rail to hook onto the lower wall bracket.
Figure 3
Large Wall Bracket
6"
Figure 4
2
Lift
1
3
W
all
Overall
Height
Overall Height – 1 3/8"
Figure 5
Large Wall
Bracket
2-Pieces
Figure 6
W
all
2
1
Overall
Height – 1/4"
Overall
Height
