2
There are three methods of installation based on the size of the screen. Measure the width of the viewing area of your screen and refer
to the appropriate method of installation below. The hanger bracket figure shows the type and quantity of bracket that is supplied based
on the size of the screen.
Method 1: Screens 80" and smaller in viewing width.
Method 2: Screens over 80" up to 96" in viewing width.
Method 3: Screens over 96" in viewing width.
Installation

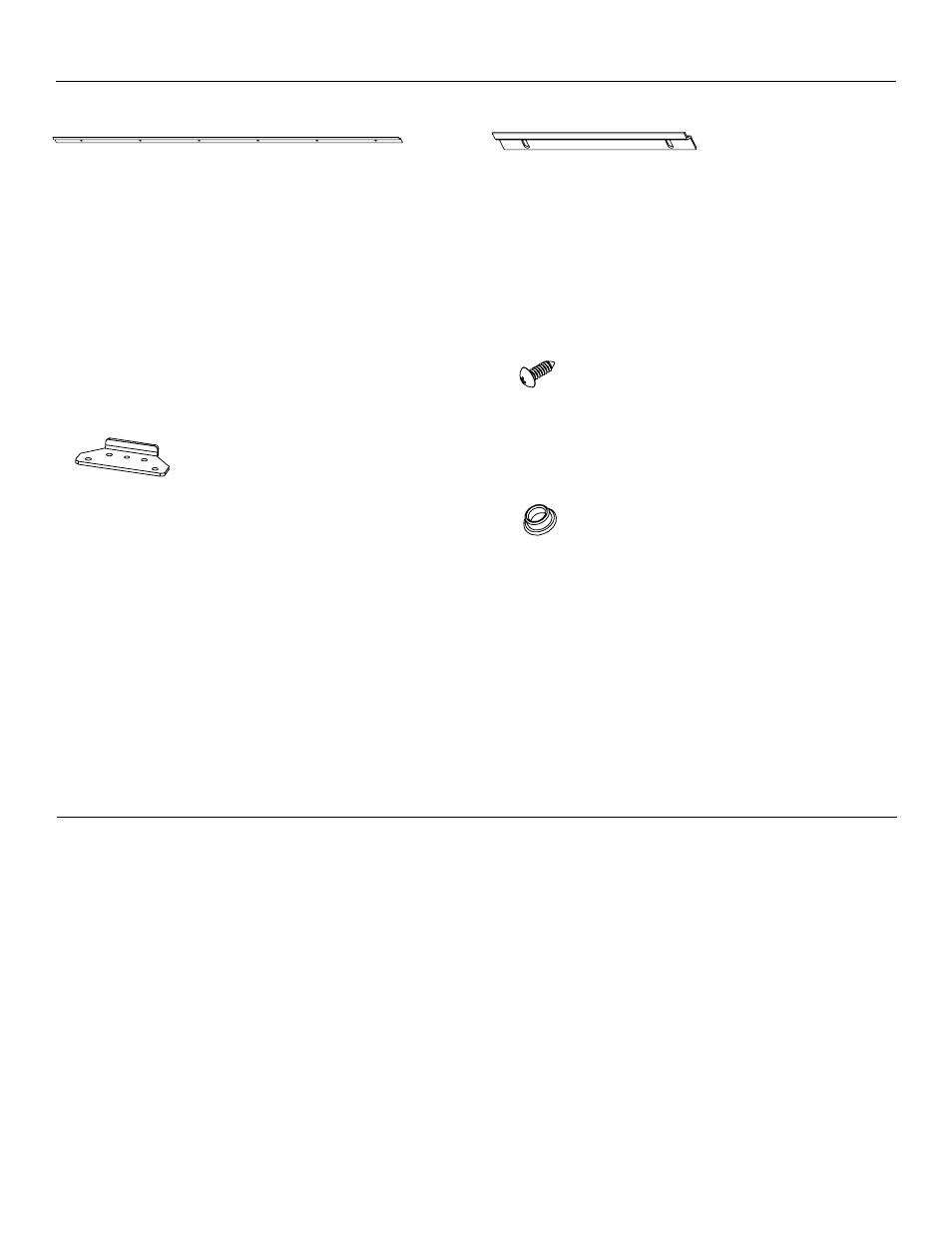

Included Hardware
Large Wall Bracket (47" Long)
Installation screws not included
Quantities vary by screen size:
Screens 80" and smaller viewing width = 1
Screens over 80" to 96" viewing width = 2
Screens over 96" viewing width = 3
Quantity Included ___________________________
Small Wall Bracket (8" Long)
Installation screws not included
Quantity = 1. Only for screens 80" and smaller viewing width.
Quantity Included ___________________________
Corner Bracket
Quantity = 4 (Attached to frame)
Quantity Included ___________________________
Snap Stud
Quantity Included
___________________________
#10 Screw
Quantity Included
___________________________
Use Installation Method Number
____________
