5
6. Assemble right side of frame to the top of frame. This is done
exactly the same way as the left side. When assembling the
unit, route the motor wire behind bracket as shown and
attach field wiring box to side of frame (Figure 6 and 7).
7. Assemble bottom of frame to the right and left sections of
frame. This is done by sliding the large black metal L brackets
into the aluminum extrusion while the small L brackets will
slide in the aluminum channels. Then repeat steps 8 and 9 on
each side (Figure 8).
Frame Assembly (continued)

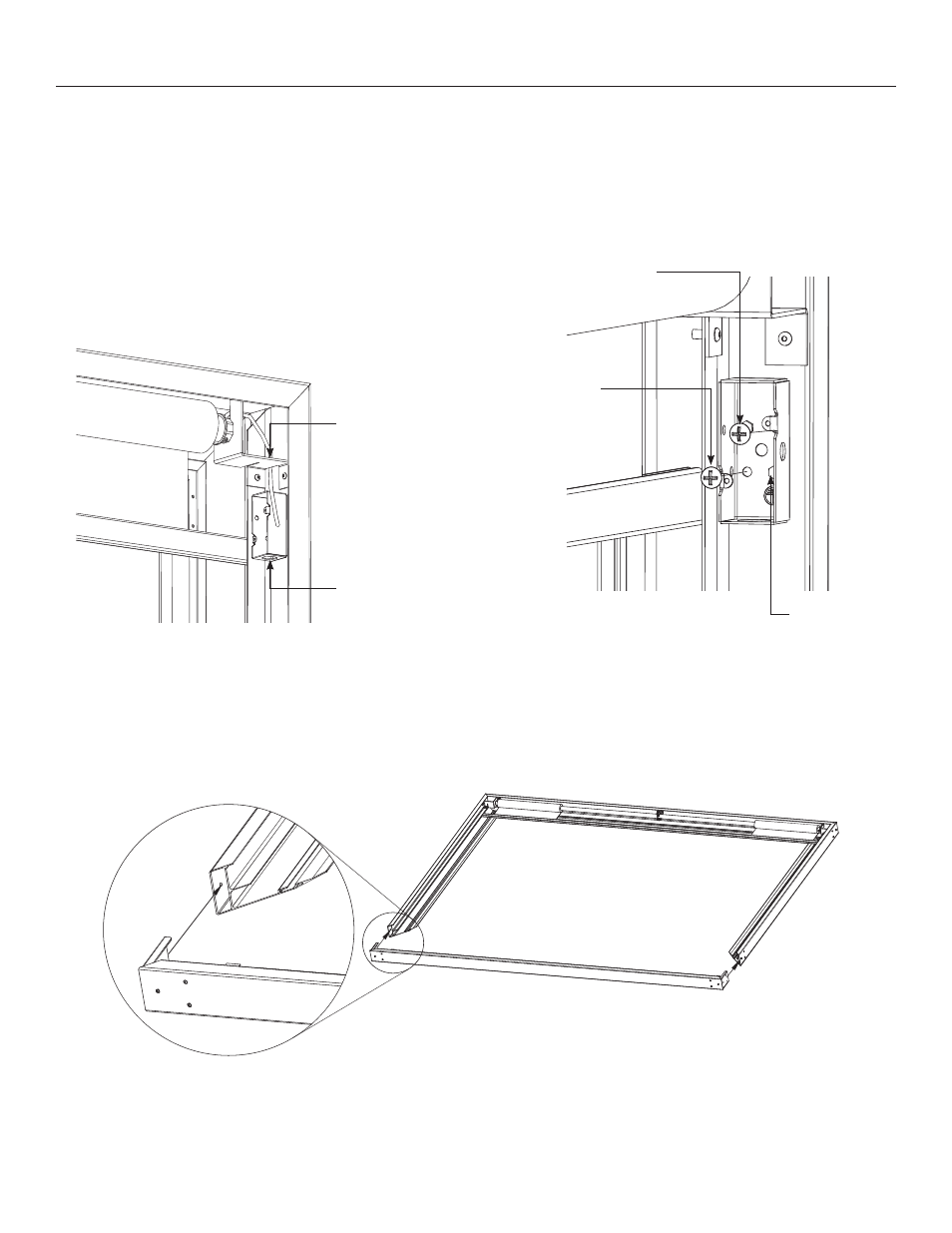

Figure 6 – Back of Frame Figure 7 – Back of Frame
Figure 8
Installation Hole
For 1/2" Conduit
Route motor
wire behind
bracket
(2) 1/4-20 x .375"
screws atiach box
to frame
Incoming Wire
Grounding Lug
Motor
Ground
Screw
