4
3. Insert tube enclosures shown.
4. Insert two Columns into the Base and install the fasteners
shown. Leave loose at this time.
5. Slide the Top Assembly down the Columns. See Figure 2.
Position the Top by tightening both Knobs. Make sure
unit is level.
6. Tighten the fasteners at the bottom of the Columns.
7. Attach Zee-Bar Plate to Hinge. See Figure 3.

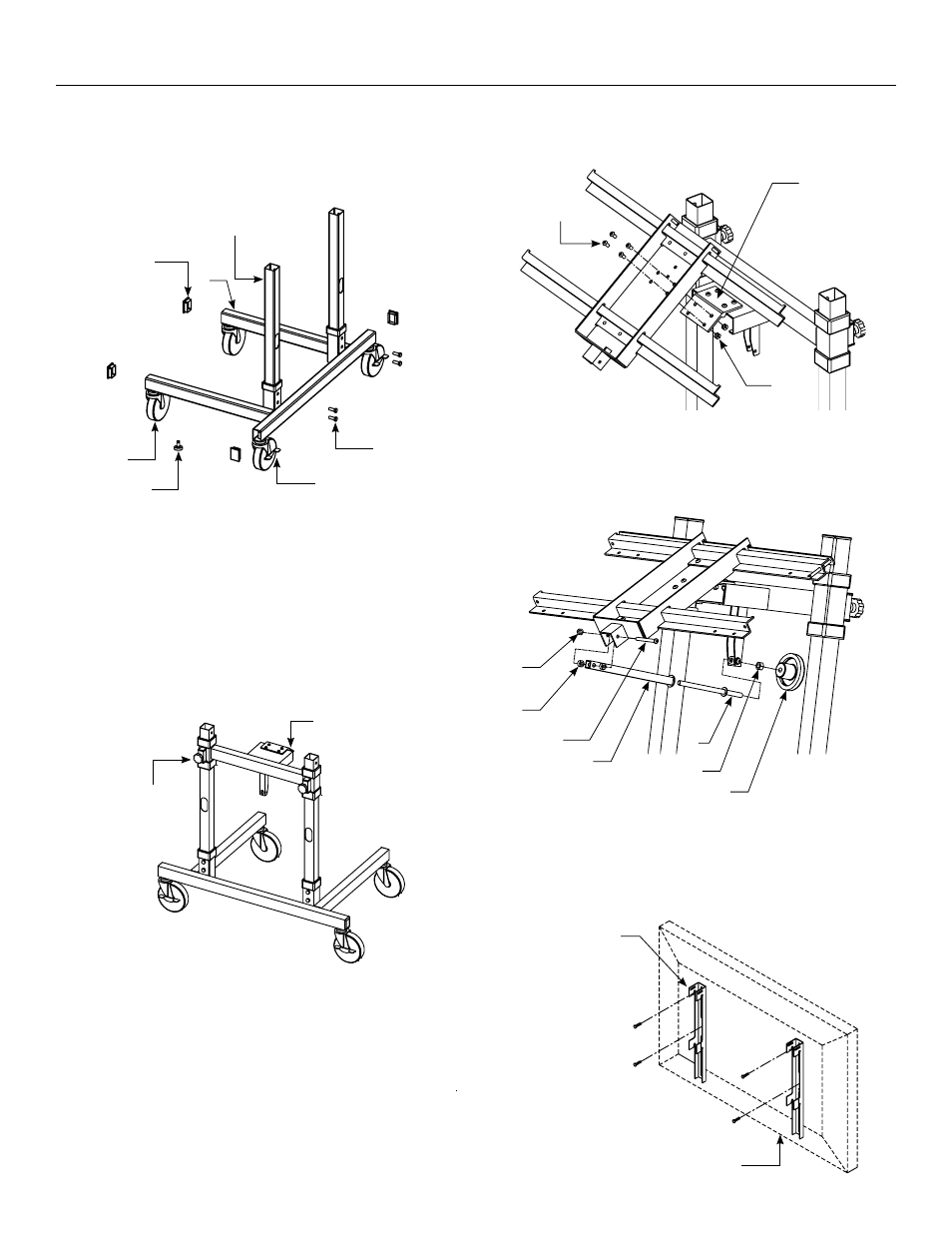

Figure 2
8. Attach tilt control mechanism to Top Assembly and
Zee-Bar Assembly. See Figure 4.
Figure 4
Figure 1
11
9
10
J
7
B
A
Knobs To
Hold
Position
6
Figure 3
G
Hinge
D
E
K
4
5
F
C
H
Procedure
1. Remove contents from carton and examine for damaged or
missing parts.
2. Insert the Caster stems or Glide stems into the Base.
See Figure 1. Must go in straight.
Figure 5
Hanging
Bracket
Plasma Unit
9. Mount the Hanging Brackets to the back of the monitor utilizing
all the fastener points recommended by the monitor
manufacturer. See Figure 5.
