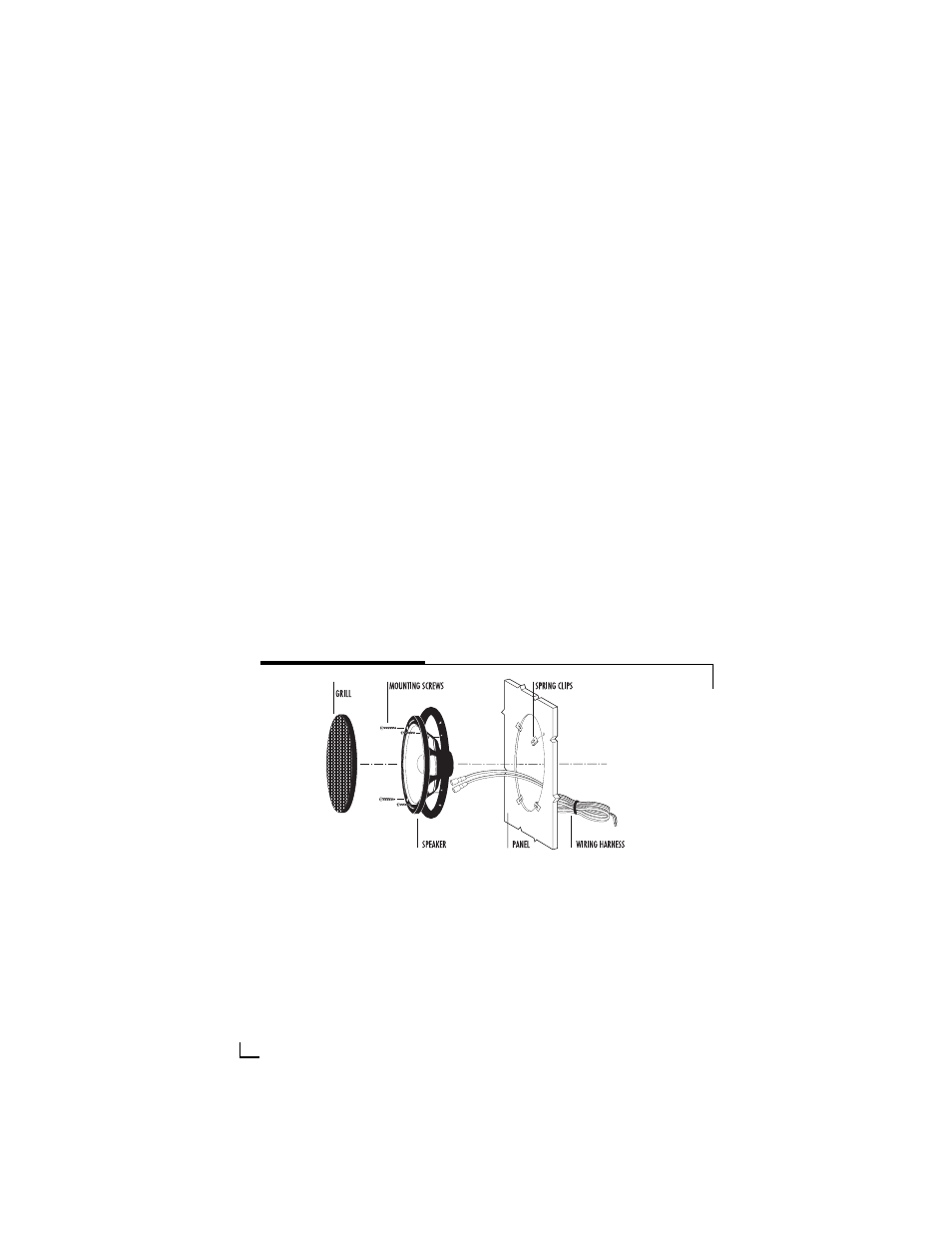

FIGURE 1—WOOFER INSTALLATION

OPTIONAL 6x9

DRW-397

cut it to the proper size. If the hole is
oversize, it is recommended that a
spacer be built to compensate.

4. Pre-drill the holes for the mounting

screws using a 1/8" drill bit.

5. Route the supplied wires through

the speaker location to the stereo
cramp.

6. Install the screw speed clips if not

installing into a metal panel.

7. Connect the speaker wire to the

woofer taking care to observe proper
speaker polarity. Connect the pigtail
harness of the tweeter to the
matching harness of the inline
crossover.

8. Place the woofer into the hole and

attach using the supplied screws.
Take care at this time not to slip
with a tool while mounting or the
speaker could be damaged.

9. If using the optional 6x9 adapter

ring and grill, place several pieces of
the butyl compound on the edge of
the speaker grill, then press the grill
into the speaker-mounting flange.

NNOOTTEE::

A supply of butyl compound is included and can
be used to attach the speaker grill as well as
prevent rattles.
