Setting Up the Screen

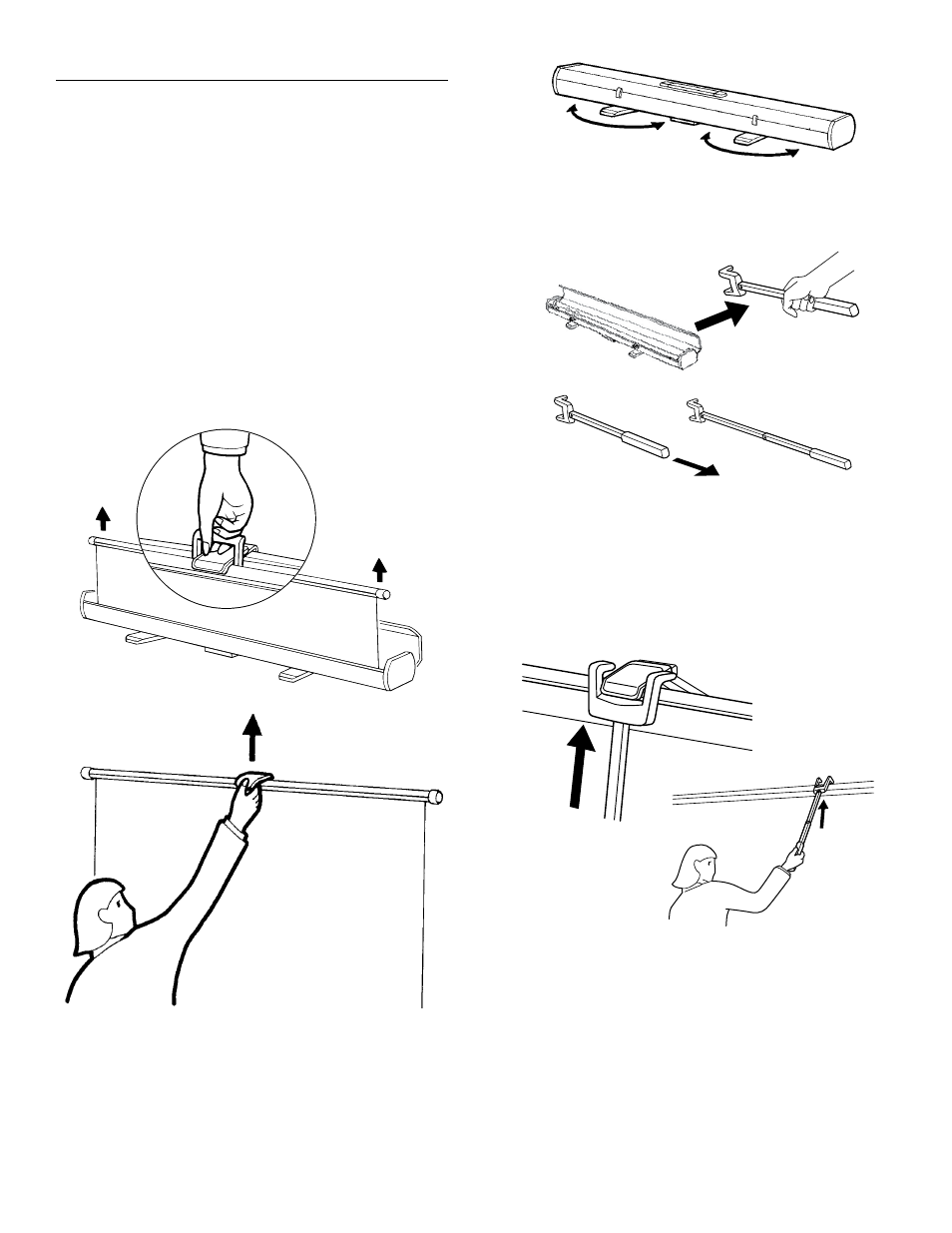

1. Rotate feet until they are perpendicular with the case (Figure 1).
2. Release the latches and open the case cover. On the 90"
and 100" models remove extending handle and extend it
as shown (Figure 1).
NOTE: Push lightly down on the center of the case to release
the latches.
3. Pull up the screen slowly at a certain height using the Lifting
Handle then grasp the Slat handle and raise the screen slowly
keeping the slat level as you raise the screen (Figure 3).
4. On 90" and 100" models only Place the end of the extending
handle under the slat handle as shown below and raise screen
to desired height. (Figure 4).
Figure 1
Figure 2
Figure 3
Figure 4
