Da-Lite Tensioned Large Advantage Electrol User Manual
Page 6

6

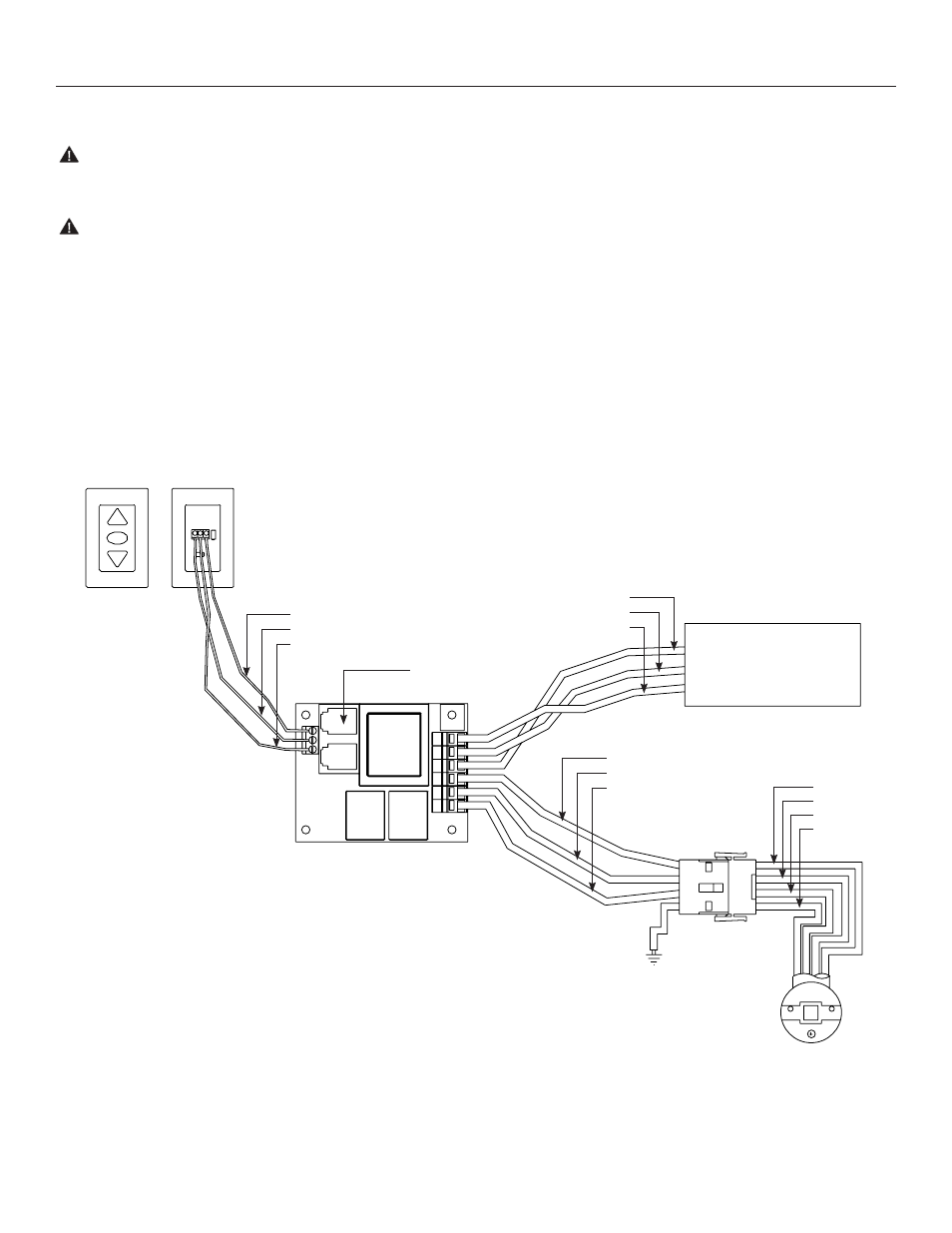

120V Wiring Diagram With Optional Built-In Low Voltage Control
NOTE: 20-24 AWG wire recommended for connecting wall
switch to low voltage controller.
CAUTION: Do not use 3-position high voltage rocker
switch with this unit! This will damage the low voltage
control board.
ATTENTION: NE UTILISEZ PAS l'interrupteur à bascule
fourni avec l'écran. Le tableau de contrôle basse tension
sera endommagé.
Eye Port:
Plug IR or RF
Remote Here
Power Input
120VAC / 60Hz
Black (Hot)
White (Common)
White (Common)
Black (Down)
Red (Up)
Green (Ground)
Screen Motor
Red (Up)
White (Common)
Black (Down)
Front of Wall
Switch
Back of
Wall Switch
Green (Ground)
White (Common
Black (Down)
Red (Up)
Green (Ground)
