Tensioned Advantage ® Deluxe Electrol ® Instructions SCB-200 Control
Blue (Common)
Black (Down)
Brown (Down)
Green / Yellow (Ground)
Power Input and Control
Board are Located on Right
Side of Screen Housing.
Brown (Hot)
Green / Yellow (Ground)
Blue (Common)
Power Input
240VAC/50HZ
Encoder
5V A B GND
Screen Motor
Door Motor
Screen and Door Motor, Microswitch
and Timer Relay Are Located on Left
Side of Screen Housing.
Door Microswitch
Blue
(Common)
Brown (Up)
Brown (Down)
Blue (Common)
Black (Up)
Gray (Door)
Brown (Down)
Green / Yellow (Ground)
Blue (Common)
Black (Up)
Gray (Door)
Brown (Down)
Green / Yellow (Ground)
Black (Down)
Blue (Common)
Blue (Common)
Brown (Down)
Black (Up)
Brown (Hot)
Green / Yellow (Ground)
Blue (Common)
Black (Up)
Brown (Down)
Blue (Common)
B + A -
Power Input and Control
Board are Located on Right
Side of Screen Housing.

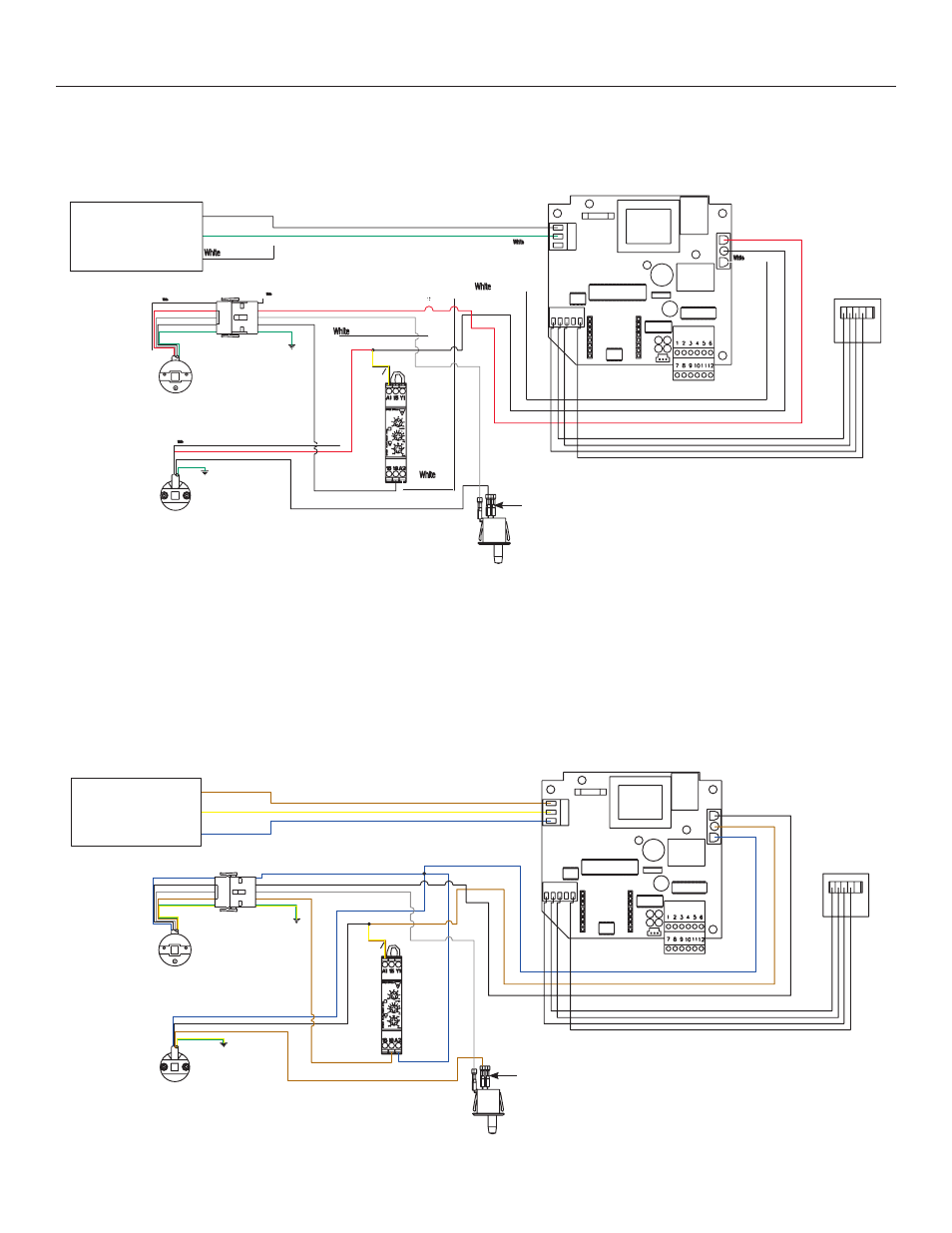

220/240V Wiring Diagram
120V Wiring Diagram
NOTE: Electrical connections on right side of case.
NOTE: Electrical connections on right side of case.
Black (Hot)
Green (Ground)
White (Common)
Power Input
120VAC/60HZ
Encoder
5V A B GND
Screen Motor
Door Motor
Screen and Door Motor, Microswitch
and Timer Relay Are Located on Left
Side of Screen Housing.
Door Microswitch
White
(Common)
Black (Up)
White (Common)
Red (Up)
Black (Down)
Green (Ground)
Black (Down)
White (Common)
Red (Up)
Gray (Door)
Black (Down)
Green (Ground)
White (Common)
Red (Up)
Gray (Door)
Black (Down)
Green (Ground)
Black/
Yellow
Brown /
Yellow
Red (Down)
White (Common)
White (Common)
Black (Down)
Red (Up)
Black (Hot)
Green (Ground)
White (Common)
Red (Up)
Black (Hot)
White (Common)
B + A -
