240v wiring diagram – Da-Lite Large Advantage Electrol User Manual
Page 9
9

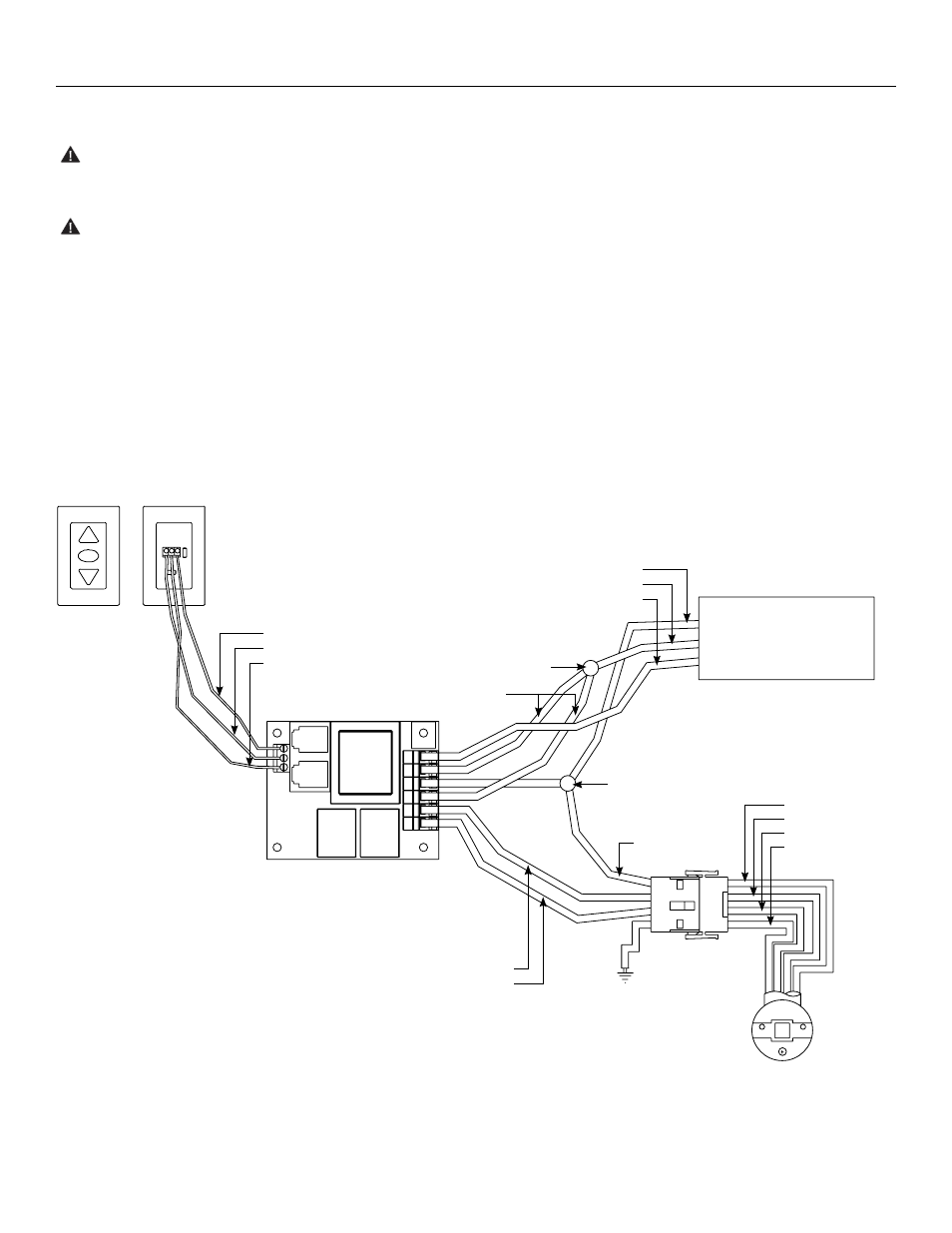

240V Wiring Diagram
NOTE: 20-24 AWG wire recommended for connecting
wall switch to low voltage controller.
CAUTION: Do not use 3-position high voltage
rocker switch with this unit! This will damage
the low voltage control board.
ATTENTION: N'utilisez pas un interrupteur à
bascule à 3 positions pour circuit à haute tension
avec cette unité. Cela endommagera le tableau de
contrôle basse tension.
Eye Port:
Plug IR or RF
Remote Here
Power Input
120VAC / 60Hz
Brown (Hot)
White (Common)
Screen Motor
Red (Up)
Blue (Common)
Black (Down)
Front of
Wall Switch
Back of
Wall Switch
Green/Yellow (Ground)
Green/Yellow
(Ground)
Blue (Common)
Brown (Down)
Black (Up)
Black
Blue (Common
Brown (Down)
Black (Up)
Green/Yellow (Ground)
Wire Nut
Wire Nut
