120v wiring diagram – Da-Lite Large Advantage Electrol User Manual
Page 8
8

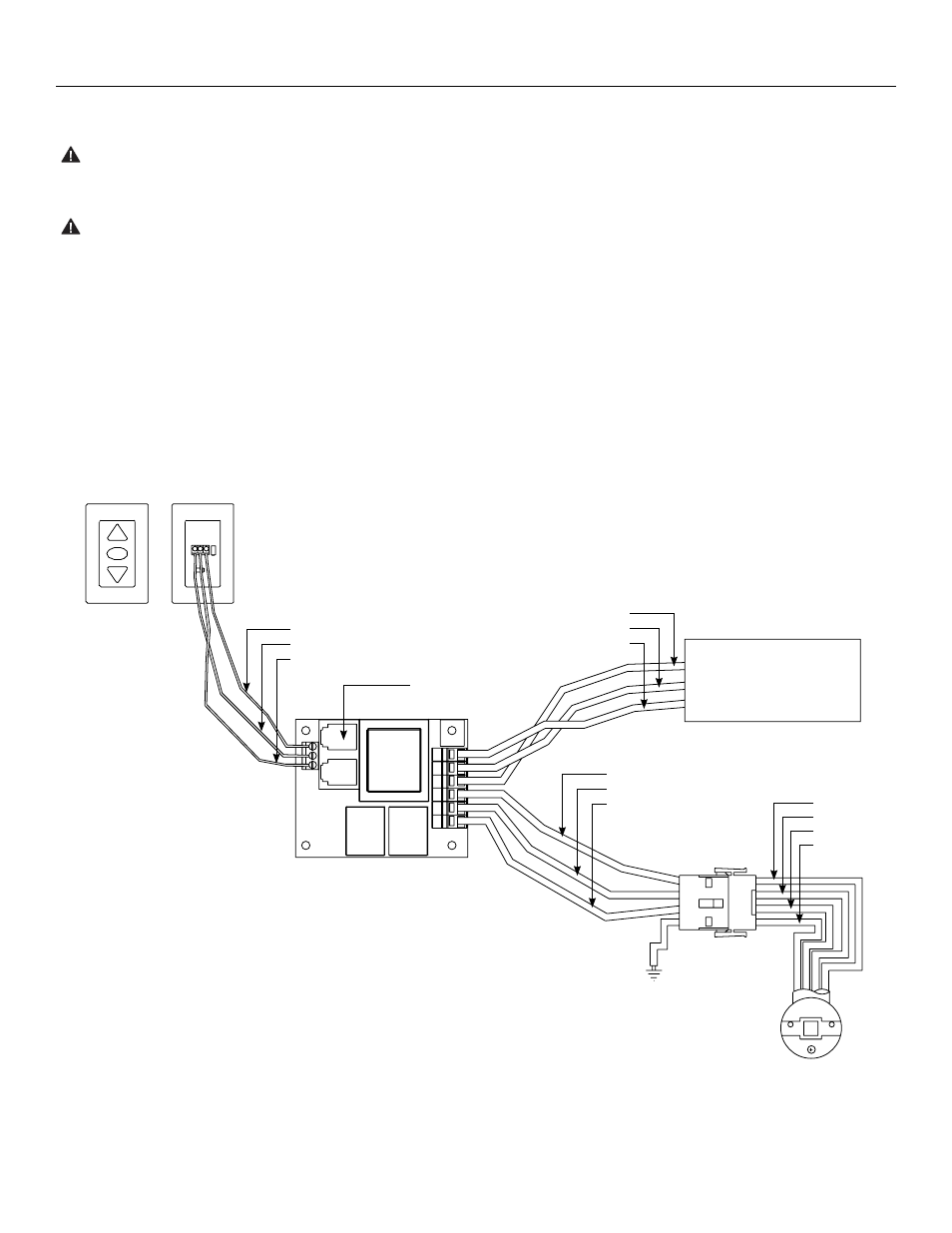

120V Wiring Diagram
NOTE: 20-24 AWG wire recommended for connecting
wall switch to low voltage controller.
CAUTION: Do not use 3-position high voltage
rocker switch with this unit! This will damage
the low voltage control board.
ATTENTION: N'utilisez pas un interrupteur à
bascule à 3 positions pour circuit à haute tension
avec cette unité. Cela endommagera le tableau de
contrôle basse tension.
Eye Port:
Plug IR or RF
Remote Here
Power Input
120VAC / 60Hz
Black (Hot)
White (Common)
White (Common)
Black (Down)
Red (Up)
Green (Ground)
Screen Motor
Red (Up)
White (Common)
Black (Down)
Front of
Wall Switch
Back of
Wall Switch
Green (Ground)
White (Common
Black (Down)
Red (Up)
Green (Ground)
