Introduction

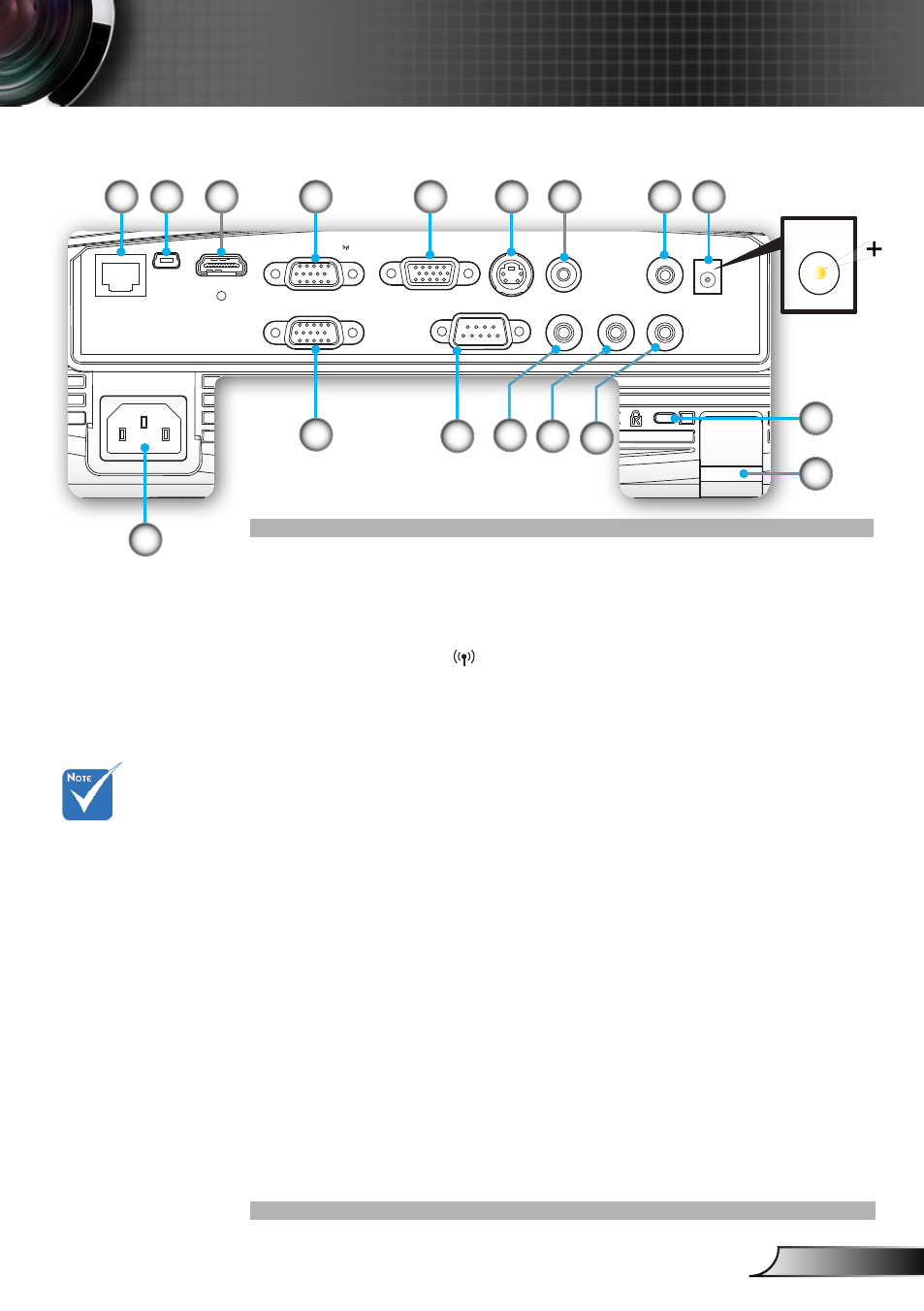

Input/Output Connections
Monitor loop
through only sup-
port in VGA1-In/
SCART/YPbPr.
1. RJ-45 Networking Connector
2. USB Connector (Connect to PC for Remote Mouse
function)
3.
HDMI Connector
4. VGA1-In/YPbPr/ Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr/
Wireless Dongle)
5. VGA-Out Connector (Monitor Loop-through Output from
VGA1-In)
6. S-Video Input Connector
7. Composite Video Input Connector
8. Audio Output Connector (3.5mm Mini Jack)
9. 12V Trigger Relay Connector (12V, 750mA)
10. VGA2-In/SCART/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/SCART/
YPbPr)
11. RS-232 Connector (9-pin)
12. Audio 3 Input connector (3.5mm mini jack)
(for S-Video/Video)
13. Audio 2 Input connector (3.5mm mini jack)
(for VGA2)
14. Audio 1 Input connector (3.5mm mini jack)
(for VGA1)
15. Kensington
TM
Lock Port
16. Security Bar
17. Power Socket
