Connerton Model A-4F - Manual (Page 8)

16
1
3
2
5-L
5-R
20 5-A
5-A
9-L
9-R
23-A
13
24
45
45-A
11
12
19-L/R
1 Grease Drip Spout
2 Ceramic Radiant
3 Top Burner
4 Back Support Bar
5-L Top Manifold (Left)
5-R Top Manifold (Right)
5-A Manifold Air Mixer
6 Top Orifice Assembly
7 Valve Bar
9-L Gas Supply Tubing (Left)
9-R Gas Supply Tubing (Right)
10 Track Support
11 Outer Track
12 Inner Track
16 Top Griddle Platel
17 Removable Back Liner
18 Top Pilot Assembly
18-B Top Pilot Tubing Complete
19-L/R Removable Side Liner
20
Flexible Gas Connector
21-R Adjustable Foot Insert (Round)
21-S Adjustable Foot Insert (Square)
22 Grease Drip Pan
23-A Manual Valve (1/4 p)
23-B Manual Valve (1/2 cc)
24 Chrome Valve Knob
45 Pop-in Swivel Caster
45-A Stud Caster
13 Gas Pressure Regulator 46 Pilot Adjustment Valve
14 Primary Gas Manifold
15 Control Panel

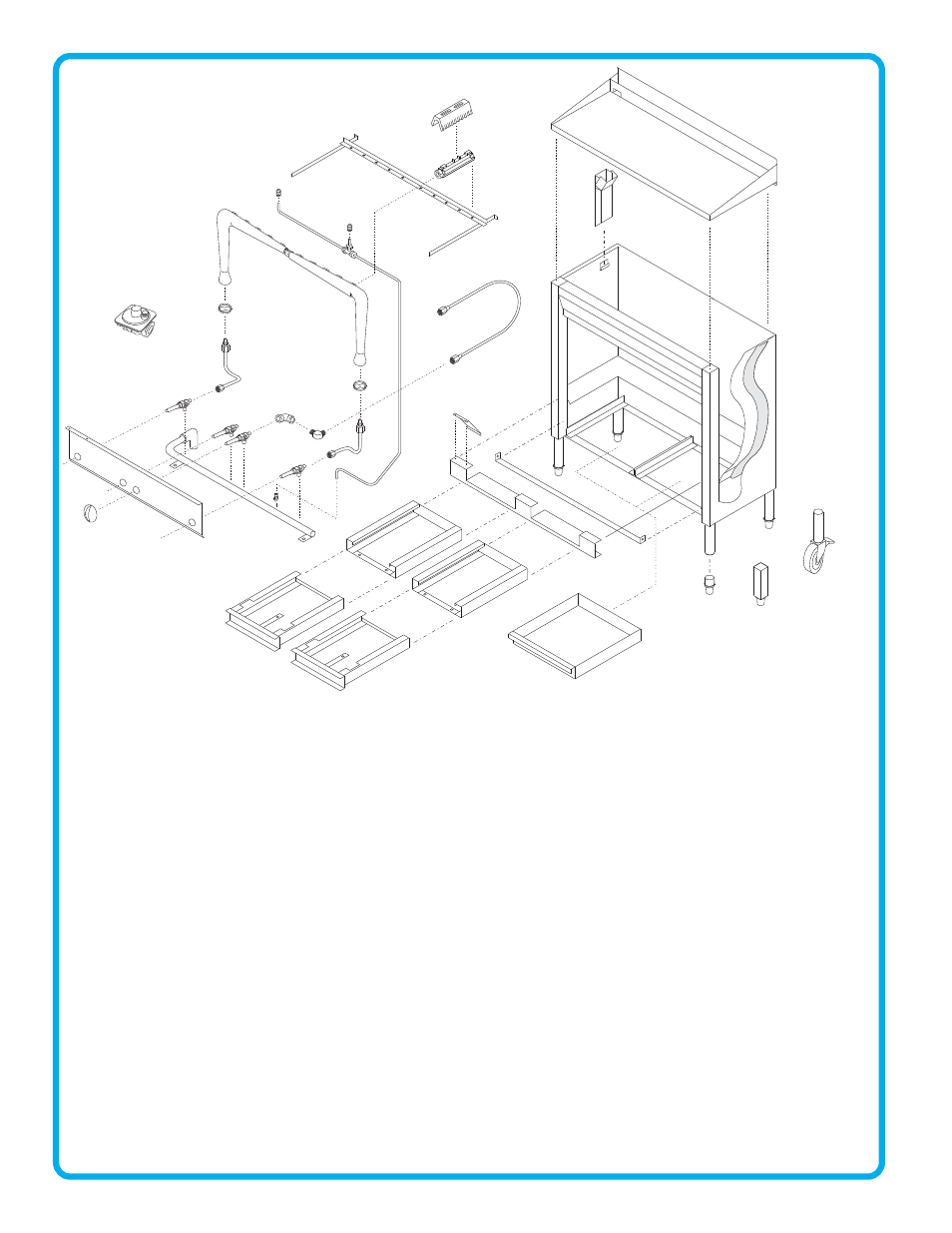

Model A-4F Parts List
22
23-B
23-B
21-R 21-S
22-A
4
6
7
10
14
15
18
18-B
46
