11
TECHNICAL DATA
Lens units
• Standard:
1:2,5/250 mm
• Optional: 1:3/150 mm
CONTROL SYSTEMS
Channels
N. 4 control channels.
Inputs
TIGER SCAN is designed to accept
analog or digital control signals from
controllers or computers.
• RS232/423(PMX) or DMX 512 digital
serial input
• 0-10V analog input
MIRROR HEAD
• Head rotatable through 360° on pro-
jector housing.
• Graduated scale for easy and accu-
rate positioning.
• Anchorage for safety wire.
• Ultra high luminous efficiency mirror.
Movement
• Produced by two microprocessor con-
trolled microstepping motors.
• Infinitely variable speed of rotation.
Maximum values:
- PAN = 0.4 sec (150°)
- TILT = 0.3 sec (110°)
• Continuous and uniform movement.
Resolution:
- PAN = ±0.3° (150°)
- TILT = ±0.2° (110°)
CONSTRUCTION FEATURES
Safety devices
• Power shuts off automatically in the
event of overheating or cooling sys-
tem failure.
• Power shuts off automatically when
cover is opened.
ELECTRICAL
MECHANICAL SPECIFICATIONS
Power supplies available
• 220 - 240V 50Hz
• 200 - 220V 60Hz
• 200 50Hz
• 200 60Hz
• 260 50Hz
The projector is designed to operate at
the mains frequency and voltage given
on the electrical data label on the base
of the appliance.
Lamp
Metal halide with special built-in power
supply.
• Type HMI 575W
- Cap SFc 10-4
- Colour temperature 6000 K
- Luminous flux 49000 lm
- Average life 750 h
• Type HMI 1200W
- Cap SFc 15,5-6
- Colour temperature 6000 K
- Luminous flux 110000 lm
- Average life 750 h
Power consumption
• Version HMI 575
- 1500 VA at 220V 50Hz
• Version HMI 1200
- 3000VA at 220V 50Hz
Motors
N. 6 microstepping motors with full
microprocessor control.
OPTICAL SYSTEM
Main optical unit
• Base in diecast aluminium
• Twin lens condenser
• High luminous efficiency spherical
reflector.
Cooling
Forced ventilation cooling system using
axial flow fans.
Housing
• Extruded diecast aluminium.
• Epoxy powder coated finish.
Mounting
• Steel bracket with epoxy powder coat-
ed finish.
• Six installation positions 25mm (4”)
apart (HMI 1200 version only).
• Bracket adjustable through 100°.
• Anchorage for safety wire.
Operating position
Will function in any position.
Weights and dimensions
• HMI 575: 25 kg.
(55 lbs)
• HMI 1200: 35.5 kg.
(78 lbs 2 ozs)
• Mirror head: 3.1 kg.
(6 lbs 13 ozs)
9

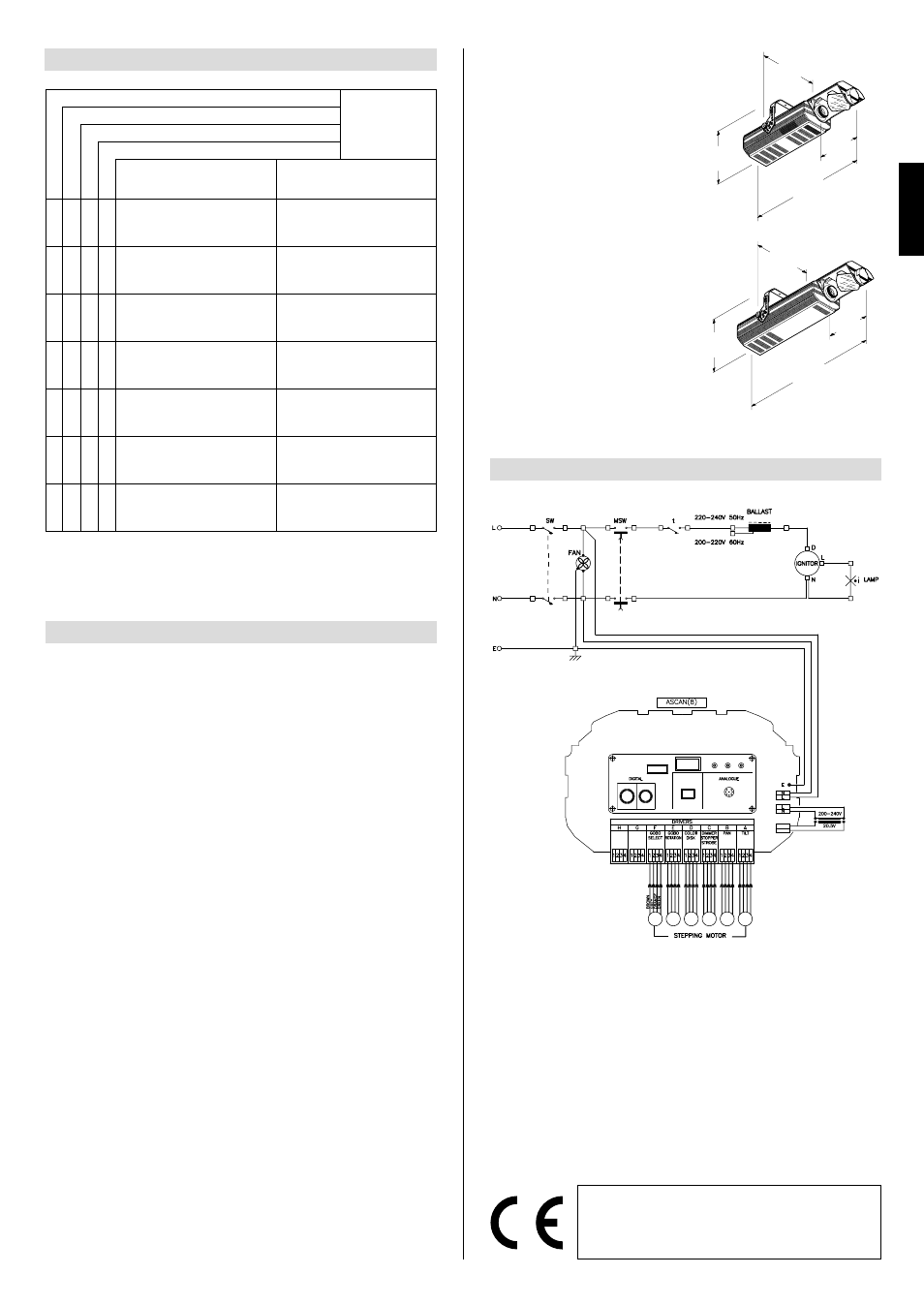

WIRING DIAGRAM 10
TROUBLESHOOTING 8
(13-17.5”)
330 ч 445
(17.1”)
435
(14.4”)
365
(43.5”)
1105
(17.1”)
435
(14.4”)
365
(13-17.5”)
330 ч 445
(48.4”)
1230
HMI 575
HMI 1200
ENGLISH
•
No electrical power supply. Check that power is available at
the mains socket and/or that
fuses are intact.
PROJECTOR DOES NOT LIGHT UP
ELECTRONICS NOT WORKING
FAULTS
PROJECTION FAULTY
REDUCED BRIGHTNESS
POSSIBLE CAUSES CHECKS AND REMEDIES
•
• •
•
•
•
•
• •
Lamp expended or faulty. Change lamp
(see instructions).
Signal transmission cable short-
circuiting or disconnected. Change cables.
Address codes incorrect. See projector coding instruc-
tions.
Defect in electronic circuits. Contact an authorized
technician.
Lenses broken. Contact an authorized
technician.
Dust or grease deposit. Clean (see instruct ions).
The products referred to in this manual comply with EC
Directives on:
• Low Voltage 73/23
• Electromagnetic Compatibility 89/336
The specifications published in this manual are not binding, and may be revised or updated
at any time by Clay Paky without notice in the interests of improving product quality.
