Product Dimensions
54” Models Epicure ®
EHR5418SCH / EH5418SCH
48” Models Epicure ®
EHR4818SCH / EH4818SCH
EHR4812SCH / EH4812SCH
48” Models Millennia ®
MH4818
MH4812
42” Models Epicure ®
EHR4218SCH / EH4218SCH
EHR4212SCH / EH4212SCH
36” Models Epicure ®
EHR3618SCH / EH3618SCH
EHR3612SCH / EH3612SCH
36” Models Millennia ®
MH3618
MH3612
30” Models Epicure ®
EHR3018SCH / EH3018SCH
EHR3012SCH / EH3012SCH
30” Models Millennia ®
MH3018
MH3012
53 7/8”W x 18” H x 26 7/8” D
47 7/8”W x 18” H x 26 7/8” D
47 7/8”W x 12” H x 24” D
47 7/8”W x 18” H x 25 1/2” D
47 7/8”W x 12” H x 22 1/2” D
41 7/8”W x 18” H x 26 7/8” D
41 7/8”W x 12” H x 24” D
35 7/8”W x 18” H x 26 7/8” D
35 7/8”W x 12” H x 24” D
35 7/8”W x 18” H x 25 1/2” D
35 7/8”W x 12” H x 22 1/2” D
29 7/8”W x 18” H x 26 7/8” D
29 7/8”W x 12” H x 24” D
29 7/8”W x 18” H x 25 1/2” D
29 7/8”W x 12” H x 22 1/2” D

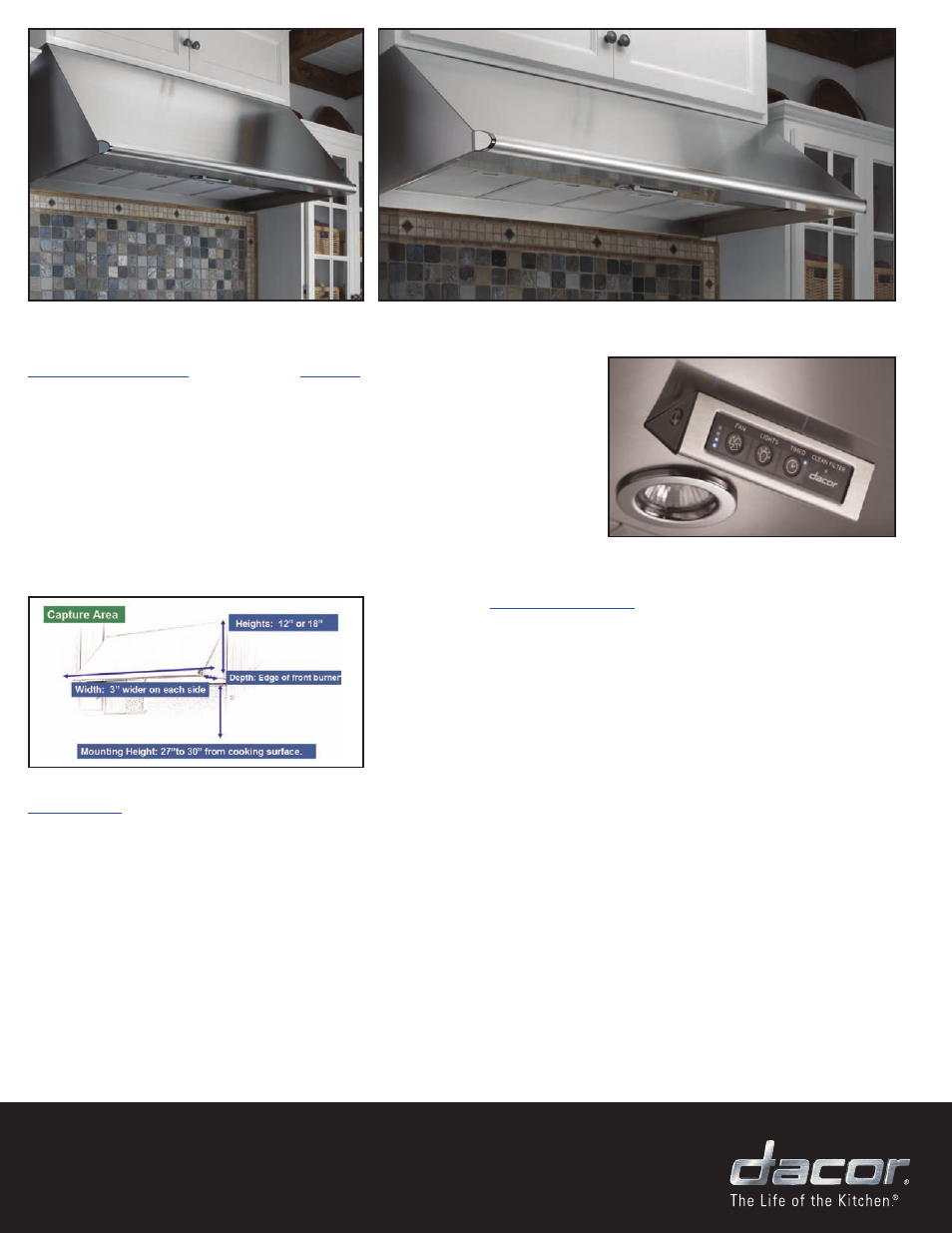

Epicure® 48” x 12” Epicure® 48” x 12" with New Anodized Filter Construction
Go to www.dacor.com - Installation & Specs for:
• Planning Guides
• Installation Instructions
• Use and Care Manual
Call 1.800.793.0093
©Copyright 2008 Dacor, Inc. All rights reserved
042908
www.dacor.com
Optional Accessories
Electronic Touch Controls
Helpful Hints
The primary function of a hood is to capture or collect the cooking
vapors, smoke and heat that result from cooking.
The larger the hood the more “capture area” so height, width and
depth coverage determine its performance.
The hood’s width should extend by least 3 inches on each side for
optimum capture coverage. Example: For a 30” range, a 30” hood
will work fine but a 36” hood will give optimum performance. Available
space is often the determining factor when considering hood size.
The depth of a hood should extend from the wall out to the front
edge of the front burner.
Optimum mounting height is 30” from top of cooking surface.
Make sure to find out if your customer is using an internal or
remote blower.
Finishes
Epicure® Models Stainless Steel (S) with:
Standard Trim Colors – Chrome (CH)
Optional Trim Colors – Brass (BR),
Copper (CP), or
Black Chrome (BC)
Millennia® Models – Stainless Steel Only (S)
Remote Blower
REMP16: Rated at 1000 CFM
REMP3: Rated at 600 CFM
ILHSF8: Rated at 600 CFM
ILHSF10: Rated at 1000 CFM
Epicure Hood trim to change color of
bullnose end caps on EH and EHR
AEHK2BR AEHK2BC AEHK2CP
