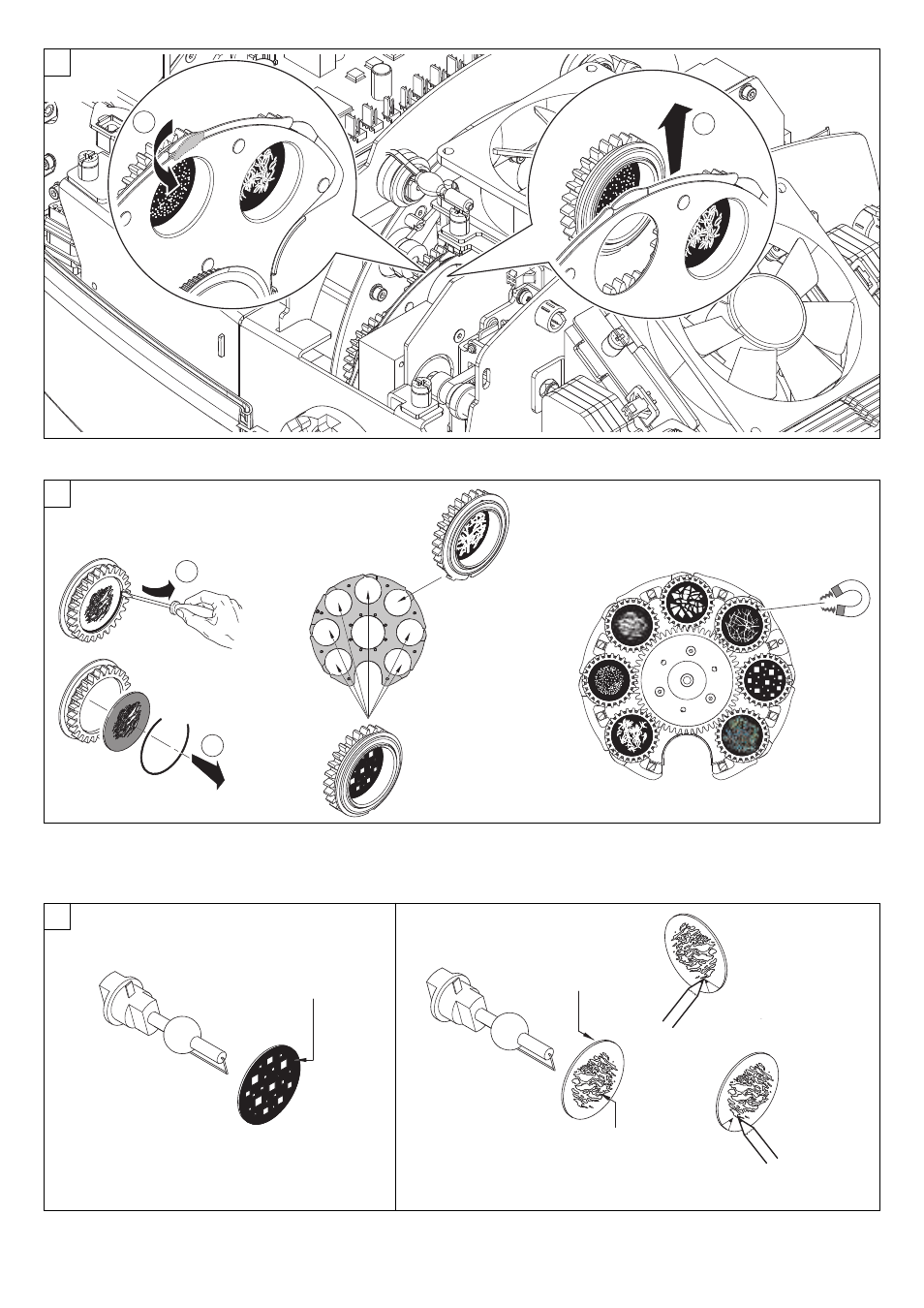

Bearing group replacement - Fig. 15
GOBO ROTATION
086401/001
086402/001 086405/001
085531/001
086406/001
086404/001
GOBO
INDEX
1
2
086403/001
16
17
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
Grey/Black side
away from lamp
Coated side
towards lamp
Coated side
Uncoated side
Uncoated side
GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2
Gobo orientation - Fig. 17
The pictures shown the correct gobos orientation.
Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness max 1.1 mm) - Fig. 16
IMPORTANT: Use only glass gobos on the rotating gobos wheels.
WARNING: Before using personalised gobos contact Clay Paky.
