Thank you for purchasing Cino US100 Hand-free Stand. The US100 is
specifically designed for hands-free applications, delivering great flexibility to
maximize users’ comfort and productivity. This document provides an easy
reference for assembling and installing the US100.
Assemble the Stand

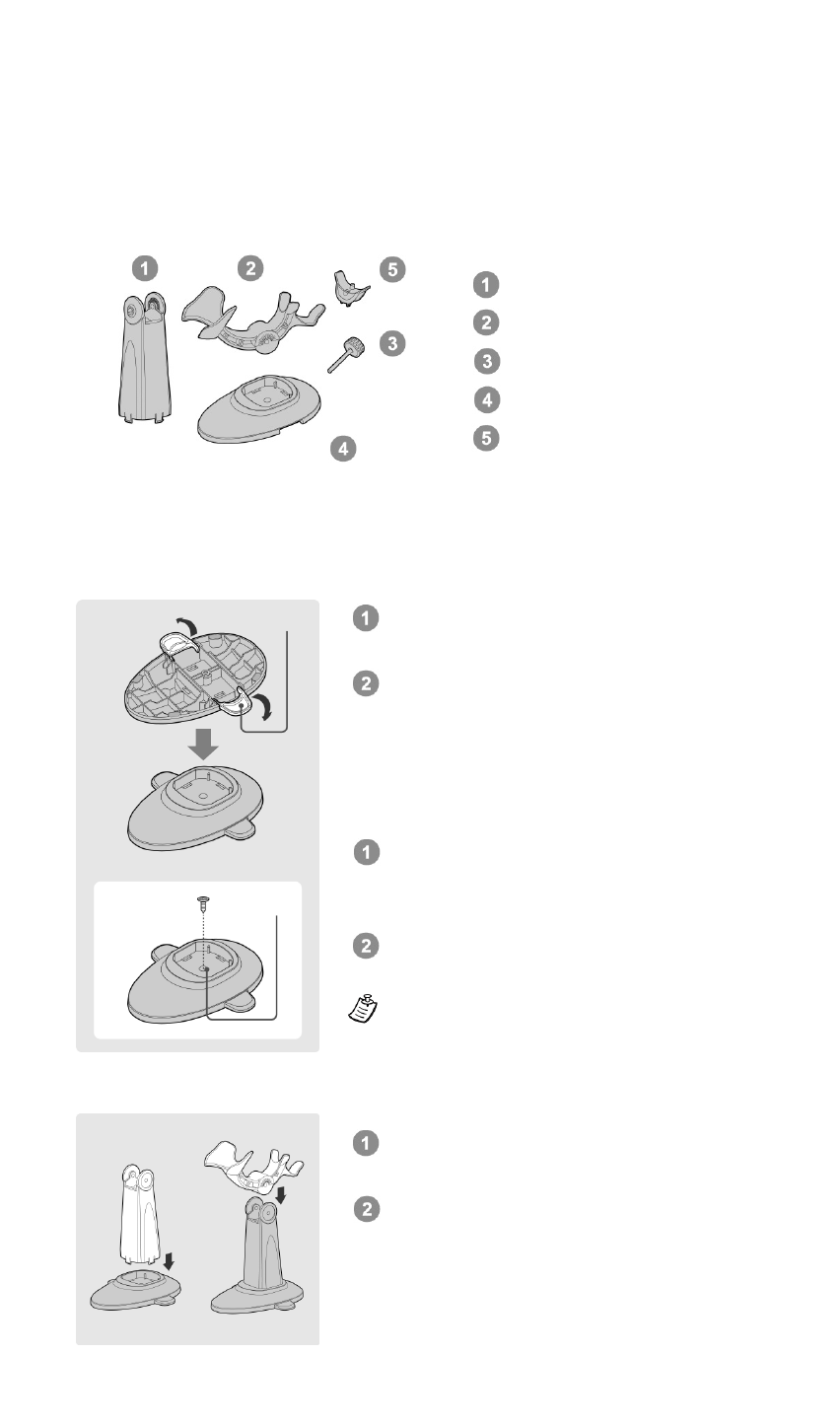

Step 1
Turn the base upside-down and open the
base supporters.
Turn the base to the front side and place
the base on your desired location.
If you would like to fix the stand by screw,
please follow below procedures.
Insert a M4 (approx. 8~10mm long) flat
head self-tapping screw into the screw
hole of the base.
Tighten the screw to secure the base to
the flat surface.
Please note that the M4 screw is not
provided in this package.
Step 2
Fit Fit the bracket into the base to lock the
bracket to the base.
Place the scanner holder on the bracket
groove properly.
Screw Hole
Base Supporter
Bracket
Scanner Holder
Angle Adjustment Knob
Base
Optional Part
