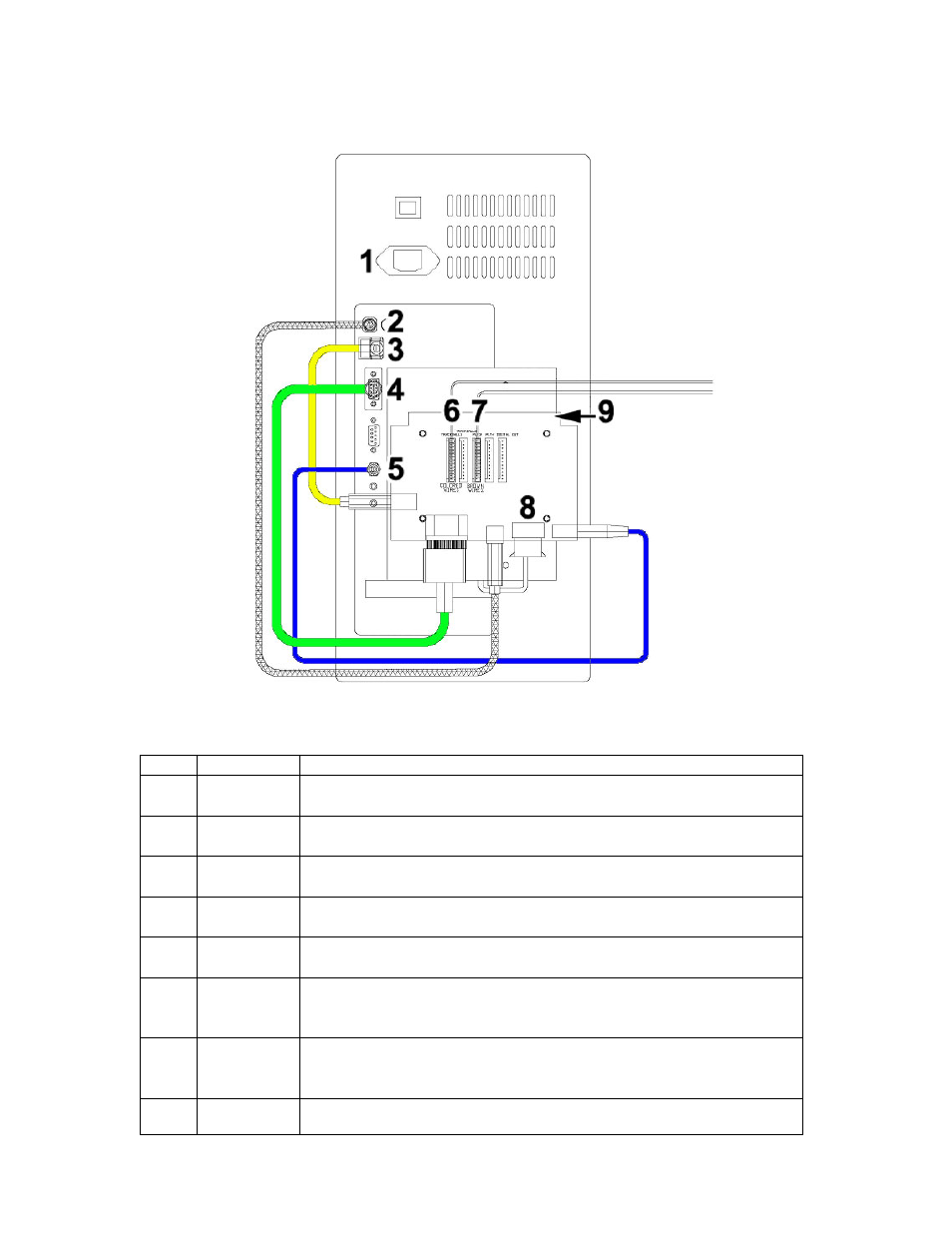

7. COMPUTER DIAGRAM
Port Computer Port Description or Use
1 AC Power AC Power input must use a IEC 14 power cord connector.
2 PS/2
Connect the PS/2 cable from the PS/2 port on the computer connects
to the PS/2 port on the USBlinx.
3 USB
Connect the USB cable from the USB port 1 on the computer to the
USB port on the USBlinx.
4 Video
Connect the Video cable from the 15-Pin Video Port on the computer
to the 15-Pin Video Port on the USBlinx.
5 Audio
Connect the Audio cable from the Audio Out Port on the computer
connects to the Audio In port on the USBlinx.
6
J8 on
USBlinx
Connect the Trackball cable to the 12-Pin connector on the USBlinx
board.
7
J7 on
USBlinx
Connect the Buttons 5 & 6 with Exit wire harness to the 12-Pin
connector on the USBlinx board. The Buttons 5 & 6 harness is wired in
with the main JAMMA harness.
8 Power
Connect one of the power connectors from the power supply coming
from the computer to the USBlinx to provide 12vdc and 5vdc power in
the JAMMA harness.
9 JAMMA
Connect the JAMMA harness to the JAMMA edge on the USBlinx
board.
