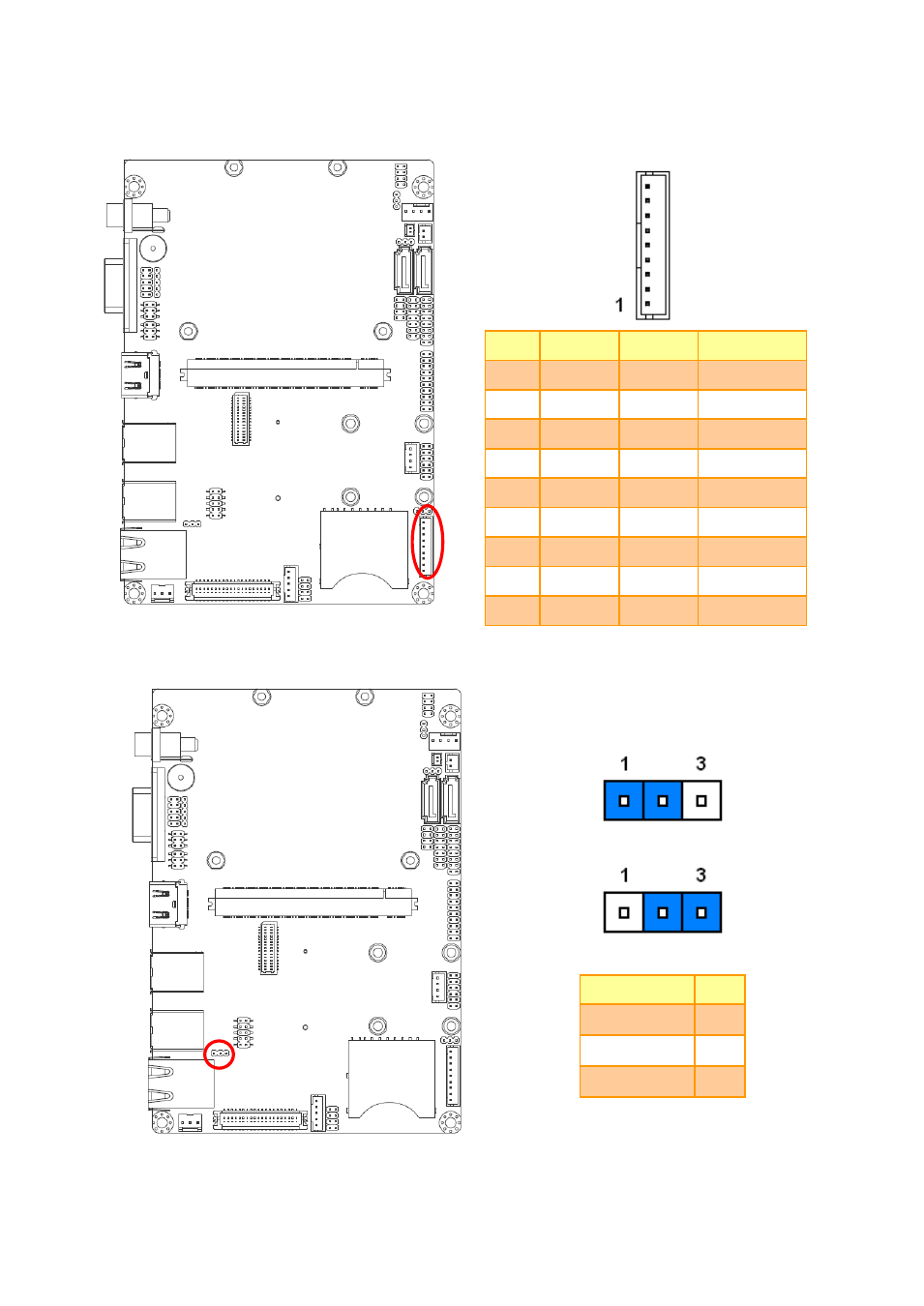

2.3.3 Touch connector (JTOUCH2)
PIN 4-WIRE 5-WIRE 8-WIRE
1 N/A N/A Right Sense
2 N/A N/A Left Sense
3 N/A N/A Bottom Sense
4 N/A Sense Top Sense
5 Right LR Right Excite
6 Left LL Left Excite
7 Bottom UR Bottom Excite
8 Top UL Top Excite
9 GND GND GND
2.3.4 USB power selector (JUSB_PW1)
*Default
Default *
Signal PIN
+V5A 1
USB_VCC_EN 2
+V5S 3
.
