Quick Reference Guide
LPC 15 ” Series Quick Reference Guide 9
2.1 COM port BIOS Setting
2.1.1 LPC-1503 RS232/422/485 setting by BIOS
The COM port setting of LPC-1503, which applying EBM-945GSE M/B, can be configured
by BIOS. The path is shown as below.

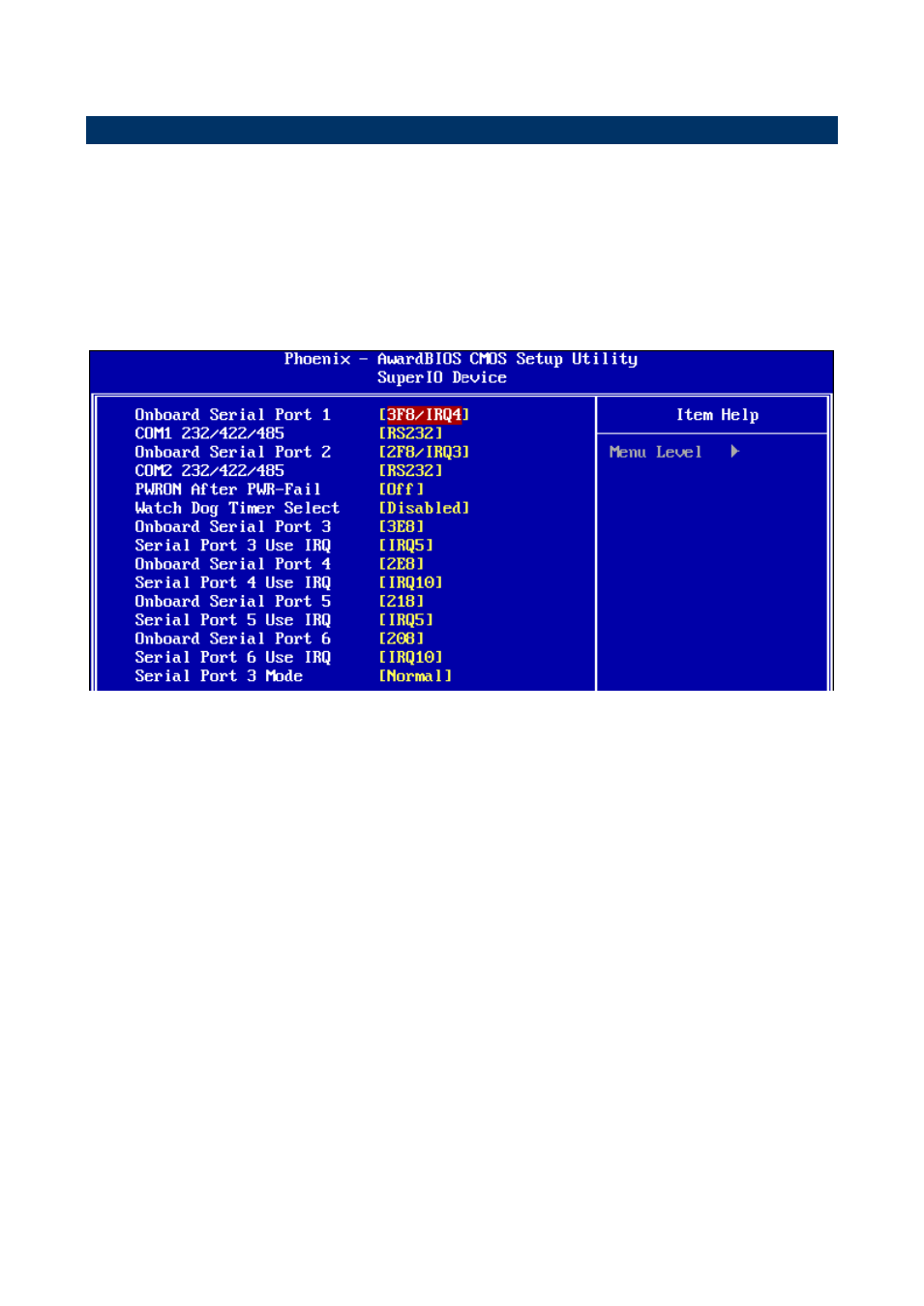

[BIOS Menu]  [Integrated Peripherals]  [Super IO Device]
 [COMPORT 232/422/485]
The panel backlight of LPC-1503, which applying EBM-945GSE M/B, can be configured by
BIOS as well. The path is shown as below.
[BIOS Menu]  [Advanced Chipset Features]  [LVDS Back Light]
To know more about other settings, please refer to EBM-945GSE Quick Installation Guide
or User ’s Manual.
2.1.2 LPC-1505 RS232/422/485 setting by SW2
The COM port setting of LPC-1505, which applying EBM-PNV M/B, can be configured by
SW2. Please refer to EBM-PNV Quick Installation Guide or User
’s Manual.
