LPC 15 ” Series
6 LPC 15 ” Series Quick Reference Guide

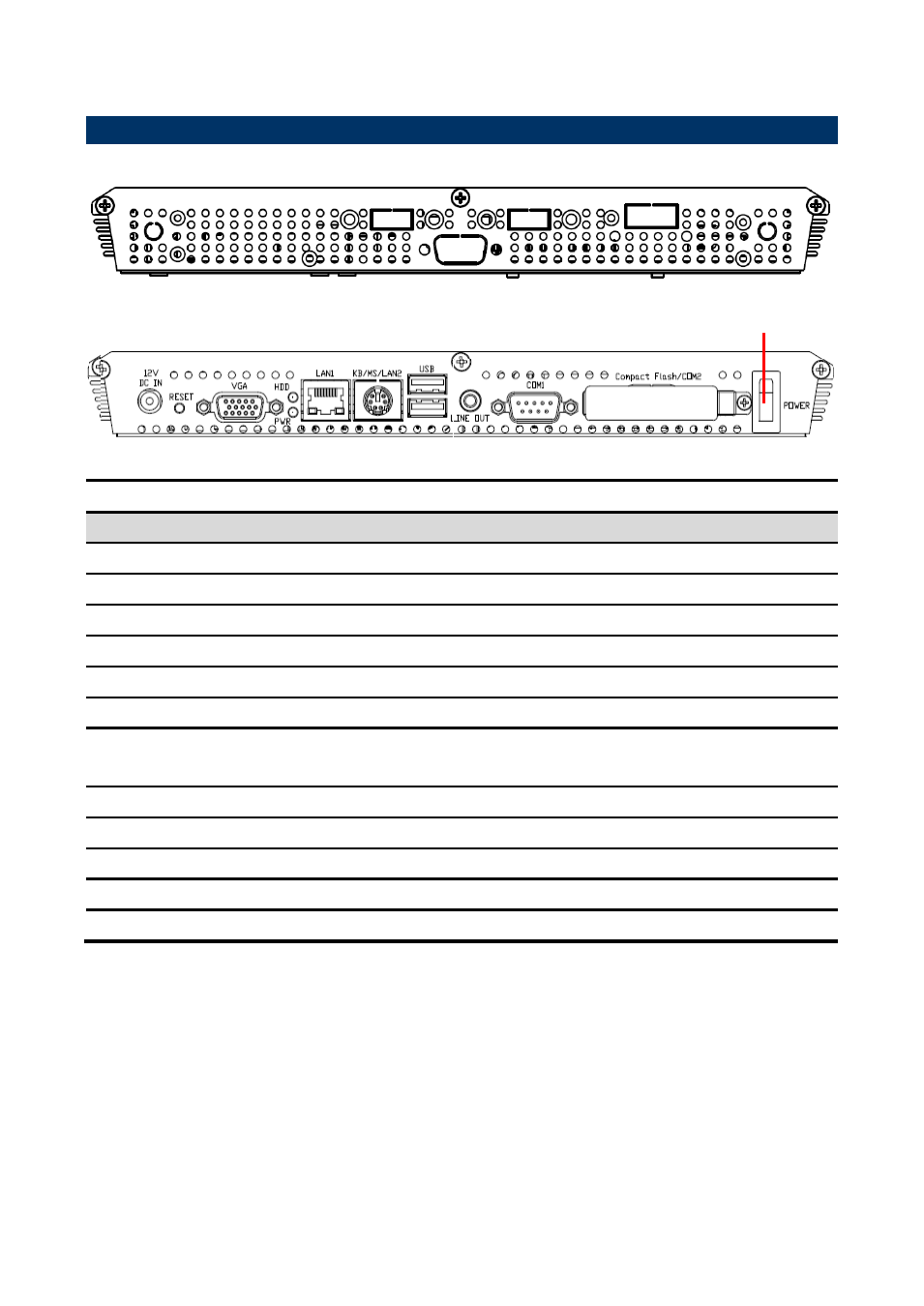

1.4 System Overview
1.4.1 Front View
1.4.2 Rear View
Connectors
Label Function Note
POWER Power on button
CF CF Type I/II Socket with Ejector Optional for 2
nd
COM port
COM1 Serial port DB-9 male connector
LINE OUT Line-out audio jack
USB 2 x USB 2.0 connector Dock USB
LAN1 RJ-45 Ethernet connector 1
LAN2
(KB/MS)
LPC-1505 -- PS/2 connector
LPC-1503 -- LAN2
HDD HDD indicator
PWR System power indicator
VGA CRT connector DB-15 female connector
RESET Reset button
DC-IN DC Power-in connector
POWER
