ASPM
Disabled
L0s
L1
L0sL1
AUTO[Default]
PCI Express Active State Power
Management settings.
Hot Plug
Enabled[Default],
Disabled
Enable or disable PCI Express Hot Plug.
Speed
Auto[Default]
Gen 2
Gen 1
Configure PCIe Port Speed.
Extra Bus Reserved 0[Default]/1/2/3
Extra Bus Reserved (0-3) for bridges behind
this Root Bridge.
Reserved Memory 0-10[Default]
Reserved Memory Range for this Root
Bridge.
Reserved Memory Alignment 0-31 Reserved Memory Alignment (0-31 bits).
Prefetchable Memory 0-10[Default]
Prefetchable Memory Range for this Root
Bridge.
Prefetchable Memory
Alignment
0-31 Prefetchable Memory Alignment (0-31 bits).
Reserved I/O 0-4
Reserved I/O (4K/8K/12K/16K/ …./48K)
Range for this Root Bridge.
PCI Express Port 2
Enabled[Default],
Disabled
Enable or Disable the PCI Express Port 1 in
the Chipset.
ASPM
Disabled[Default]
L0s
L1
L0sL1
AUTO
PCI Express Active State Power
Management settings.

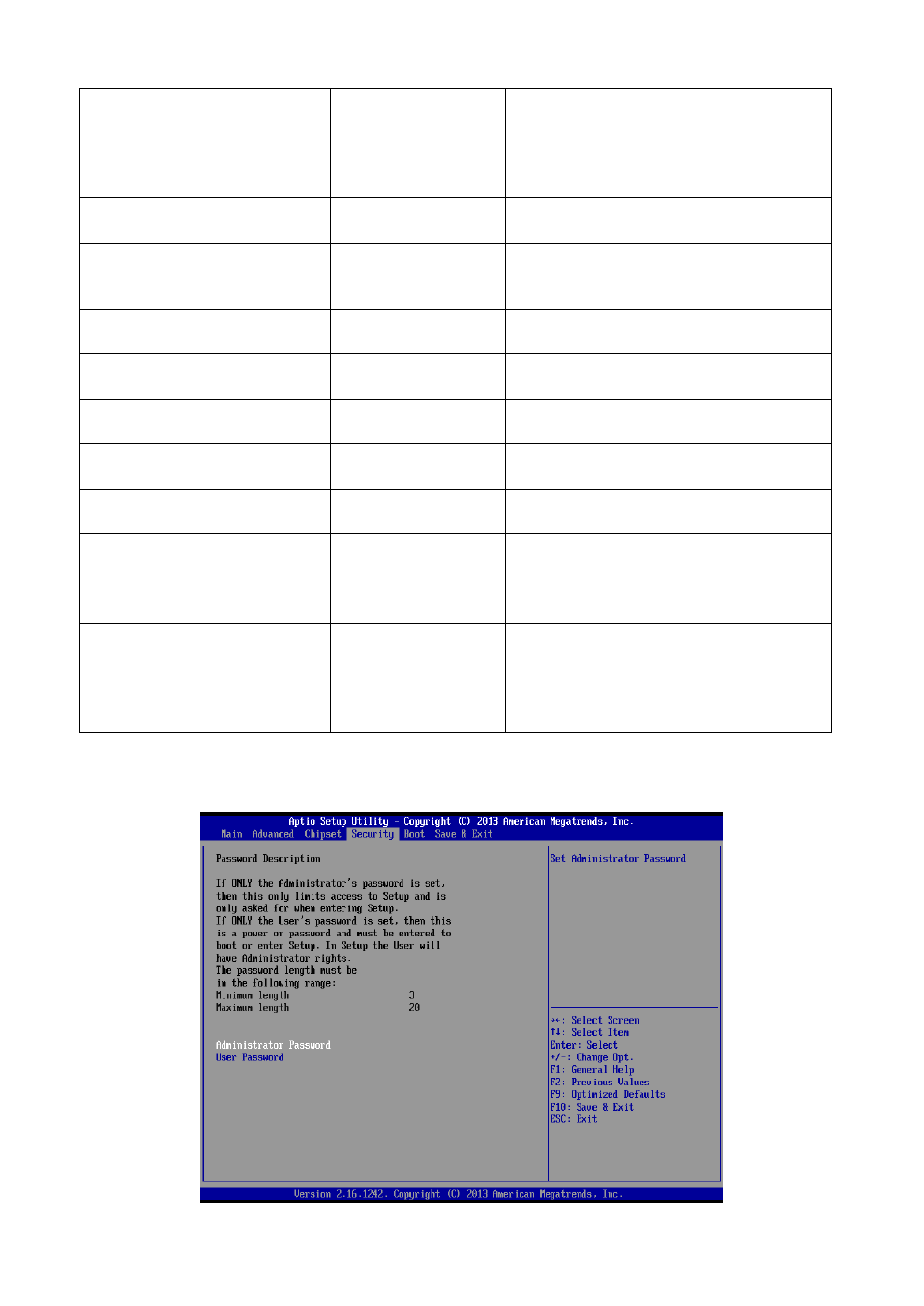

3.6.4 Security
