Avalue EMX-QM77 - Manual (Page 10)

EMX-QM77
EMX-QM77 Quick Installation Guide 10
SYS_FAN1 System Fan
Connector
Connectors

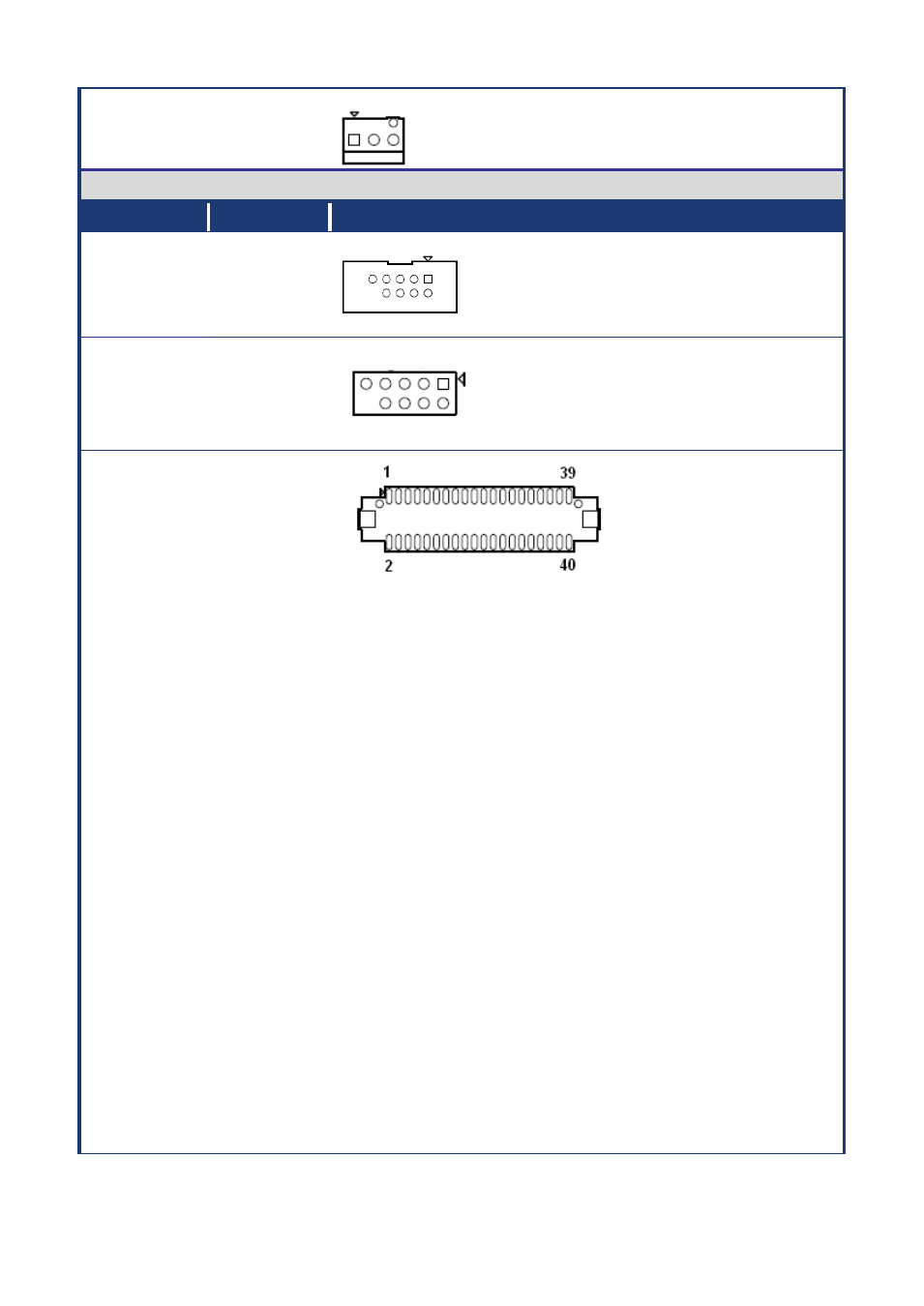

Label Function Note
COM2
COM3
Serial Port
Connector
F_PANEL1 Intel Front
Panel
connector
JLVDS 24-bit LVDS
Connector
1.GND
2.SYSFAN1_VCC(PWM)
3.SYSFAN1_IO
39.VDD(+12V) 40.VDD(+12V)
37.GND 38.GND
35.LVDS_B_CK- 36.LVDS_A_CK-
33.LVDS_B_CK+ 34.LVDS_A_CK+
31.GND 32.GND
29.LVDS_B3- 30.LVDS_B2-
27.LVDS_B3+ 28.LVDS_B2+
25.GND 26.GND
23.LVDS_B1- 24.LVDS_B0-
21.LVDS_B1+ 22.LVDS_B0+
19.GND 20.GND
17.LVDS_A3- 18.LVDS_A2-
15.LVDS_A3+ 16.LVDS_A2+
13.GND 14.GND
11.LVDS_A1- 12.LVDS_A0-
9.LVDS_A1+ 10.LVDS_A0+
7.GND 8.GND
5.I2C_CLK 6.I2C_DATA
3.VDD(+3.3V) 4.VDD(+5V)
1.VDD(+3.3V) 2.VDD(+5V)
1.DCD 6.DSR
2.RXD 7.RTS
3.TXD 8.CTS
4.DTR 9.RI/PWR
5.GND
1.HDDLED+ 2.POWERLED+
3.HDDLED- 4.POWERLED-
5.GND 6.PWSWITCH
7.RESET 8.GND
9.NC
