EBM-CX700 Series

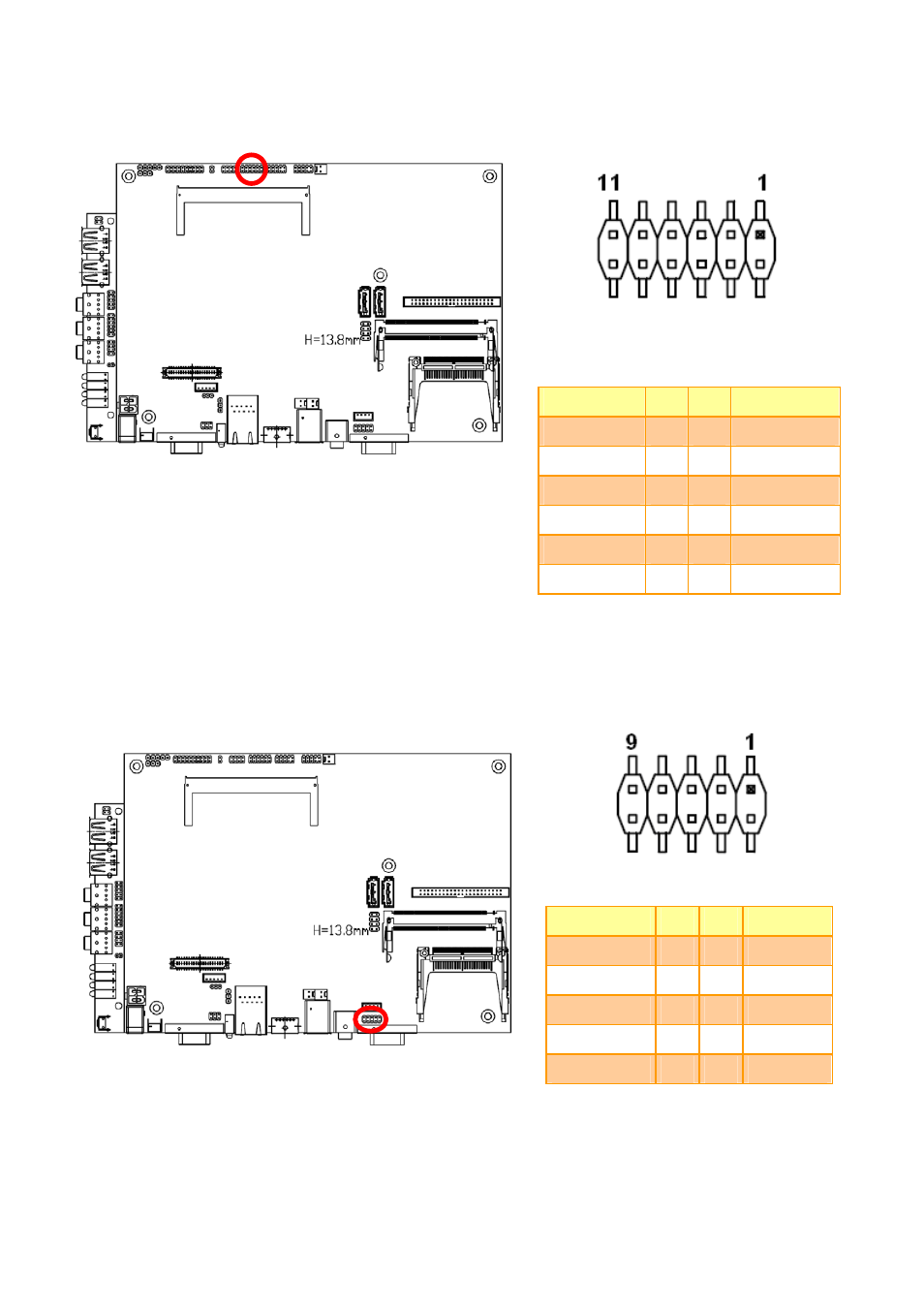

8 EBM-CX700 Series Quick Installation Guide

2.3.3

Audio connector (CN1)

Signal

PIN PIN

Signal

LINEOUT_R

1

2

LINEOUT _L

GND 3

4 GND

LIN_R

5

6

LIN_L

Mic In

7

8

Mic Bais

LINEOUT_JD

9

10

LINEIN_JD

MIC_JD 11

12 GND

2.3.4

Serial Port2 Connector (COM2)

Signal

PIN PIN

Signal

DCD

1

2

RxD

TxD 3

4

DRT

GND

5

6

DSR

RTS 7

8

CTS

RI

9

10

NC
